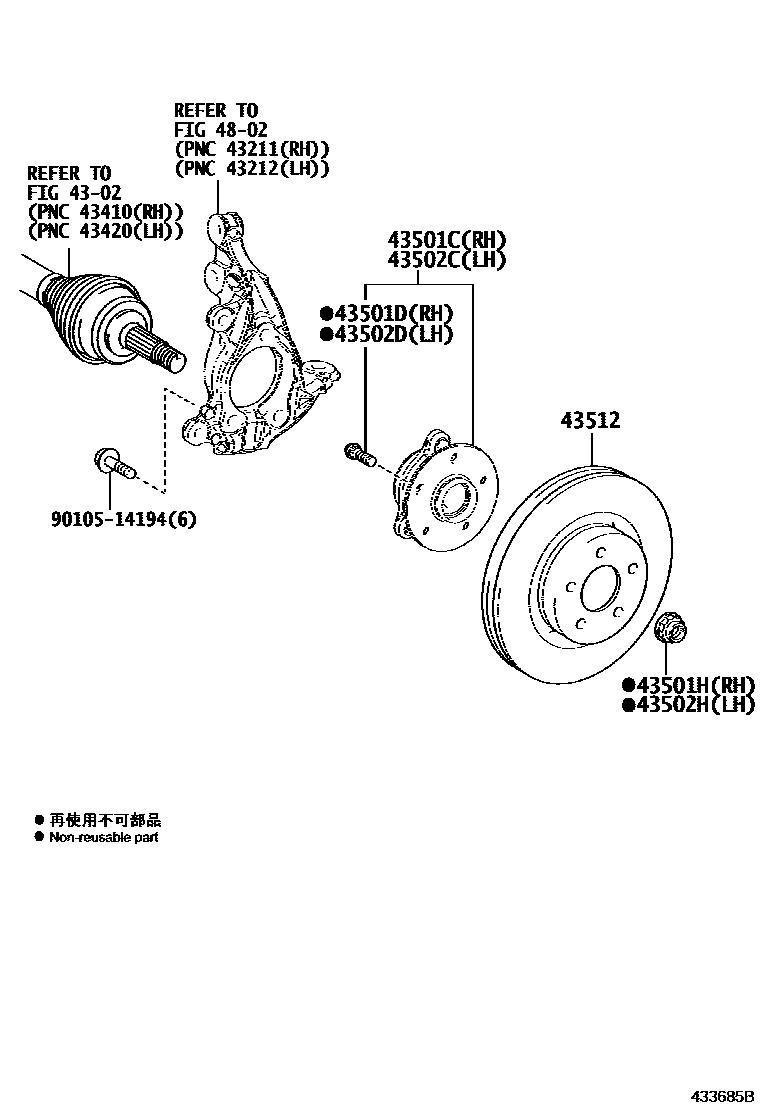

FRONT AXLE HUB

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-47020iZVW52201905

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5iZVW52201609-201904

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iZVW52201609-201904

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-47020iZVW52201905

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5iZVW52201609-201904

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iZVW52201609-201904

43512DISC, FRONT

main43512-12720×2iZVW52201905

main43512-47060×2iZVW52201609-201904

4802

9010514194

main90105-14194

10 parts on this diagram · 1 diagram in section
