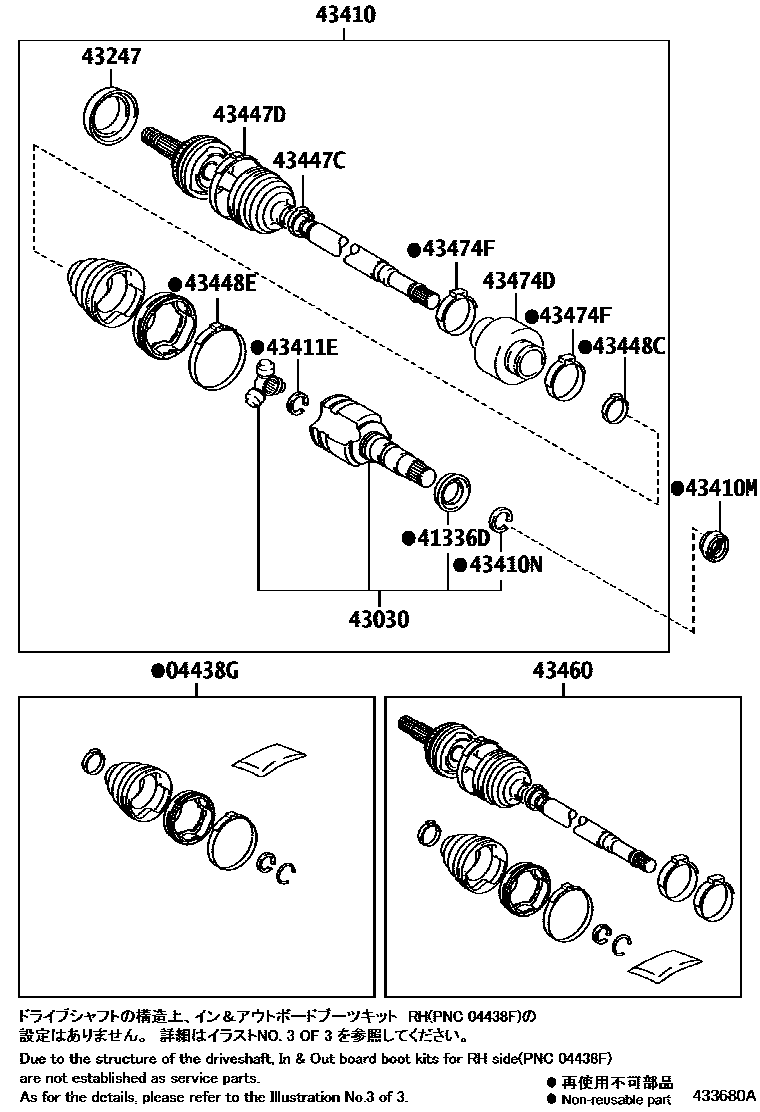

FRONT DRIVE SHAFT

0001 1RH 0002 1LH 0003 1

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-47033iZVW52¥4,150201609-201904

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12020iZVW52¥330201609-201904

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43040-47010iZVW52¥18,300201609-201904

43247DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2

main43247-47010iZVW52¥490201609-201904

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-47040iZVW52¥57,400201609-201904

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-40038iZVW52¥400201609-201904

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90521-33002iZVW52¥100201609-201904

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-12070iZVW52¥40201609-201904

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12230iZVW52¥220201609-201904

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12240iZVW52¥340201609-201904

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12230iZVW52¥220201609-201904

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12180iZVW52¥330201609-201904

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-49427iZVW52¥36,500201609-201904

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-47020iZVW52¥4,230201609-201904

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-12100iZVW52¥180201609-201904

15 parts on this diagram · 3 diagrams in section
