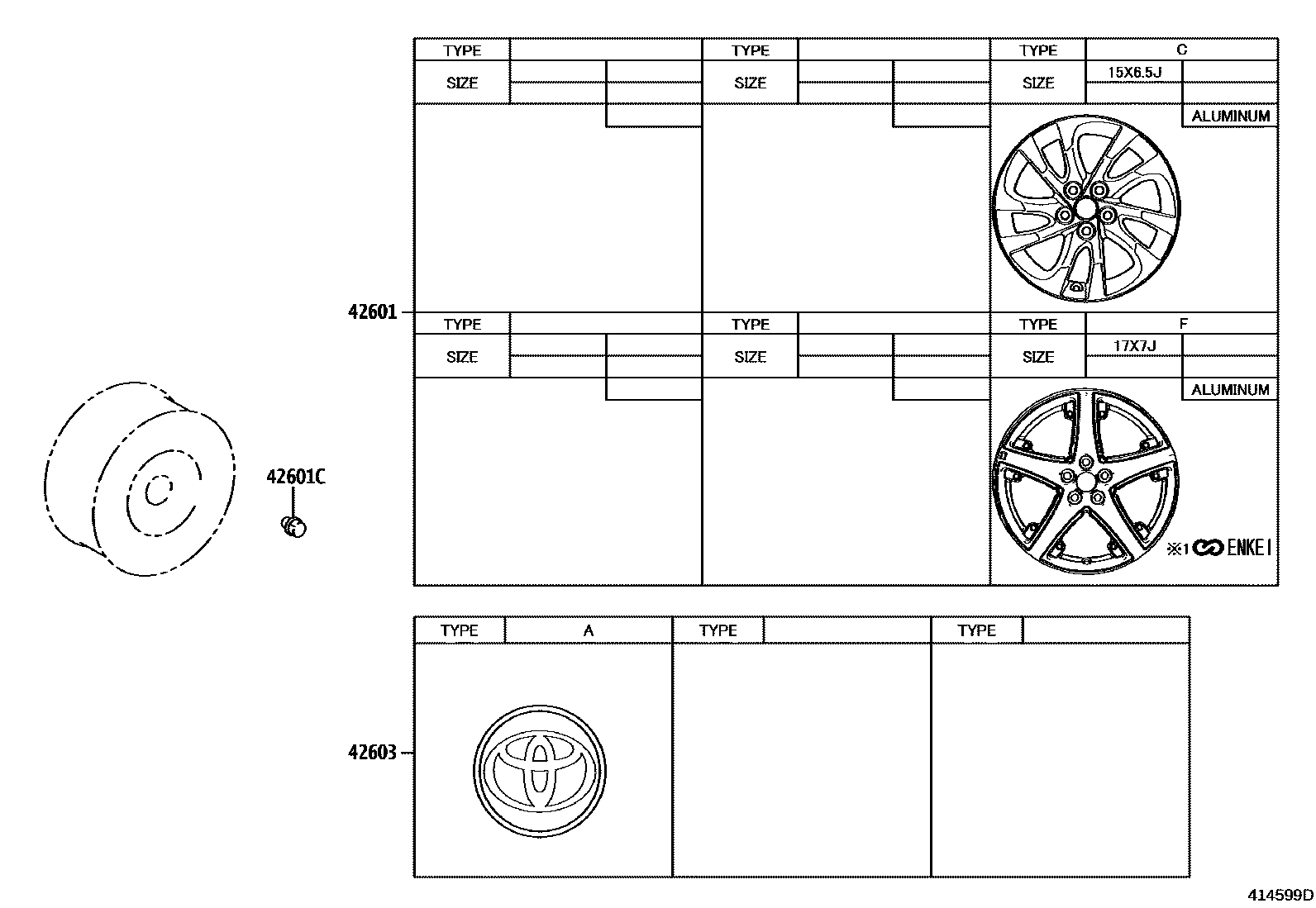

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42601WHEEL, DISC

main42611-47600iZVW52201609-201904

15X6.5J, #,TYPE C:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01033iZVW52201609-201904

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-52170iZVW52201609-201904

*ALU,TYPE A:REFER ILLUST.

3 parts on this diagram · 2 diagrams in section
