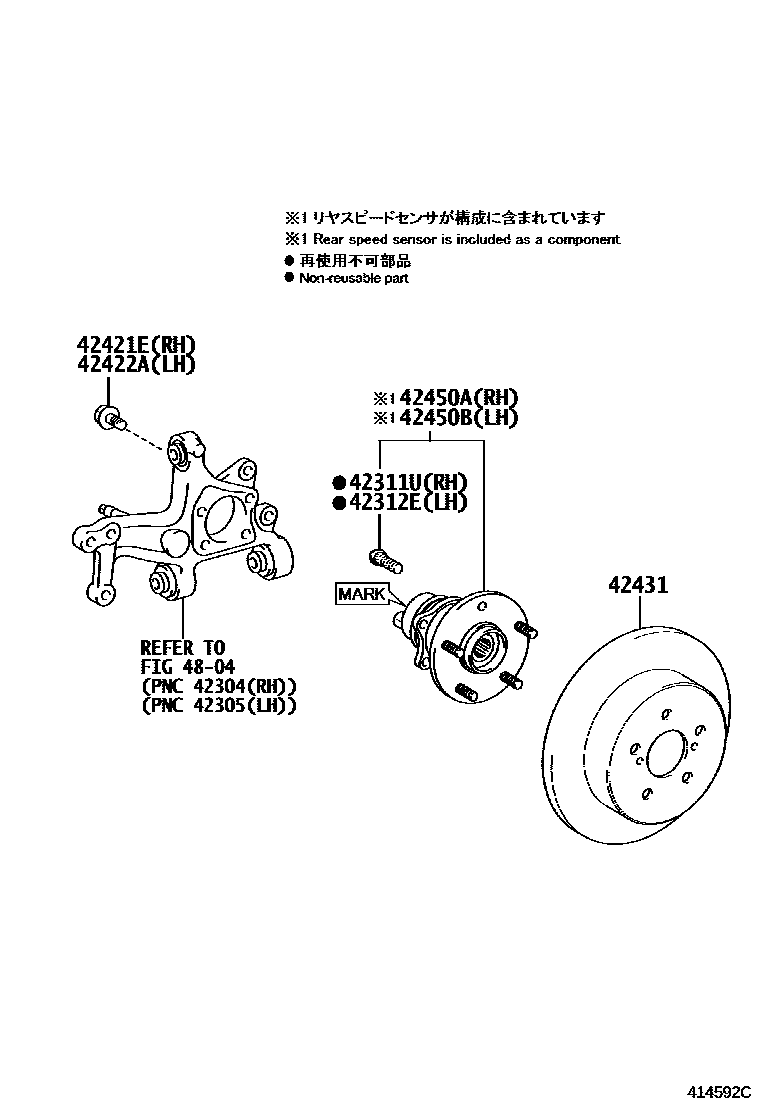

REAR AXLE SHAFT & HUB

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049iZVW52¥240201609-201904

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049iZVW52¥240201609-201904

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12350iZVW52¥160201609-201704

main90105-12406iZVW52¥160201705-201904

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12350iZVW52¥160201609-201704

main90105-12406iZVW52¥160201705-201904

42431DISC, REAR

main42431-12310iZVW52¥5,700201609-201904

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-12210iZVW52¥19,900201911-202212

MARK=DENSO

sub42450-12211¥18,100

main42450-12220iZVW52¥19,900201805-201911

MARK=DENSO

sub42450-12210¥19,900

main42450-76020iZVW52¥14,500201609-202212

MARK=AISIN

sub42450-76021¥14,500

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-12210iZVW52¥19,900201911-202212

MARK=DENSO

sub42450-12211¥18,100

main42450-12220iZVW52¥19,900201805-201911

MARK=DENSO

sub42450-12210¥19,900

main42450-76020iZVW52¥14,500201609-202212

MARK=AISIN

sub42450-76021¥14,500

4804

8 parts on this diagram · 1 diagram in section
