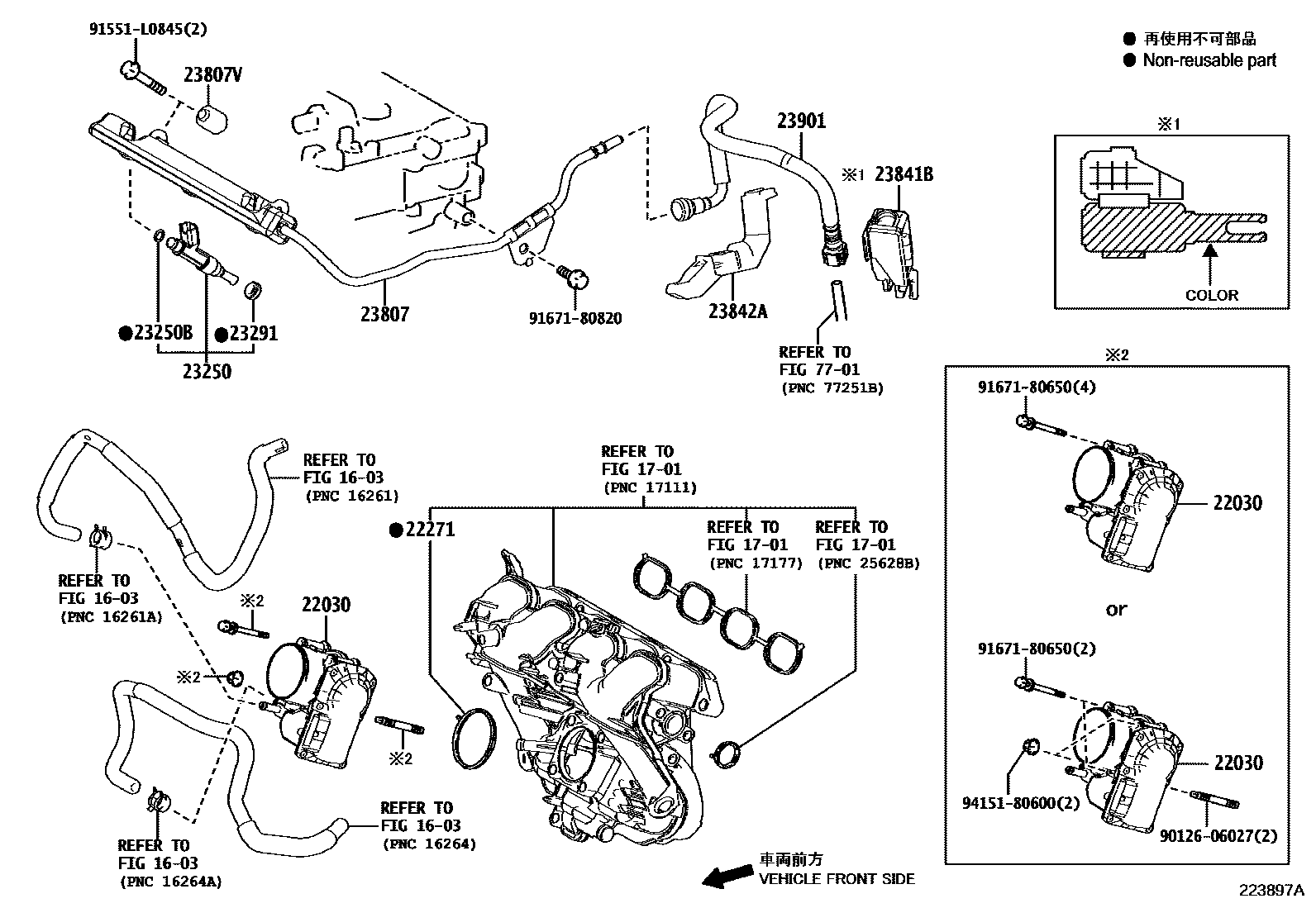

FUEL INJECTION SYSTEM

1603

1701

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-37060i2ZRFXE..ZVW52201609-201904

22271GASKET, THROTTLE BODY

main22271-37020i2ZRFXE..ZVW52201609-201904

23250INJECTOR ASSY, FUEL

main23209-39295×4i2ZRFXE..ZVW52201609-201904

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037×4i2ZRFXE..ZVW52201609-201904

23291INSULATOR, INJECTOR VIBRATION

main23291-28020×4i2ZRFXE..ZVW52201609-201904

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-37100i2ZRFXE..ZVW52201609-201904

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-37010×2i2ZRFXE..ZVW52201609-201904

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-37081i2ZRFXE..ZVW52201609-201904

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23841-37131i2ZRFXE..ZVW52201609-201904

23901TUBE SUB-ASSY, FUEL

main23901-37260i2ZRFXE..ZVW52201905

main23901-37270i2ZRFXE..ZVW52201609-201904

7701

9012606027

main90126-06027

91551L0845

main91551-L0845

9167180650

main91671-80650

9167180820

main91671-80820

9415180600

main94151-80600

18 parts on this diagram · 1 diagram in section
