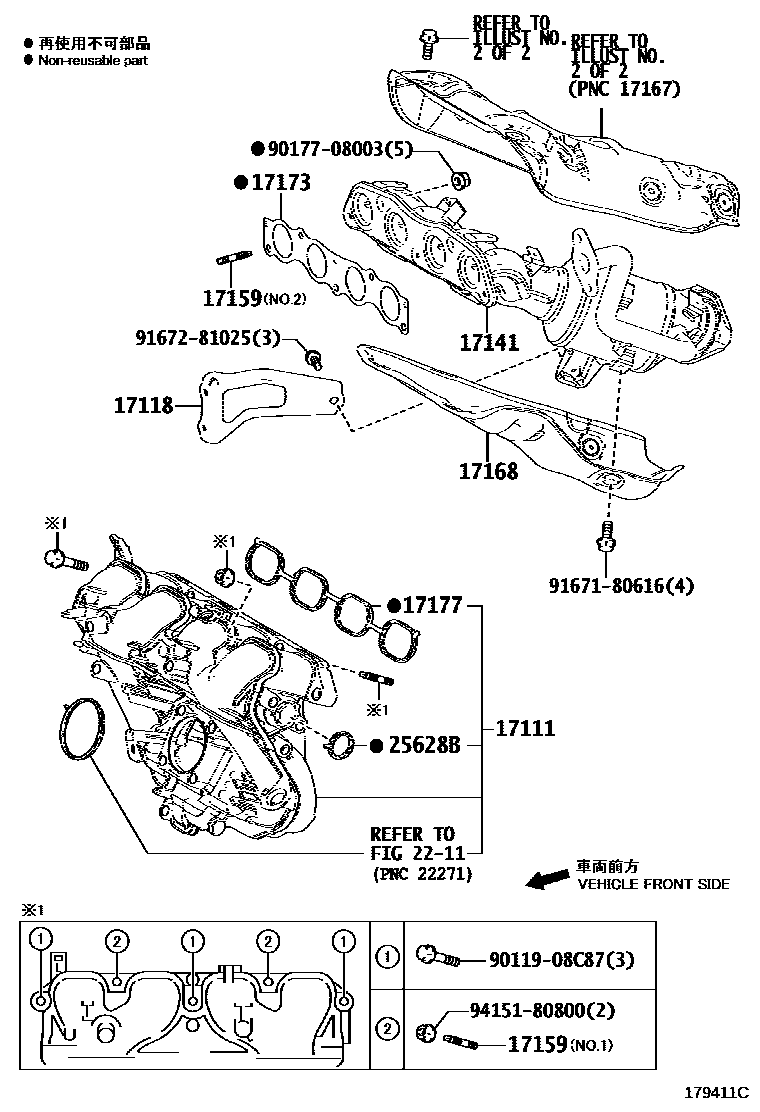

MANIFOLD

0001 1 0002 1

17111MANIFOLD, INTAKE

main17120-37110i2ZRFXE..ZVW52201905

17118STAY, MANIFOLD

main17118-37090i2ZRFXE..ZVW52201609-201904

17141MANIFOLD, EXHAUST

main17141-37210i2ZRFXE..ZVW52201609-201904

*114=TOYOTA/AT37180Y

main17141-37260i2ZRFXE..ZVW52202007

*114=*690

main17141-37211i2ZRFXE..ZVW52..LHD202202

*114=TOYOTA/AT37180Y,TAIWAN SPEC

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90126-08026×2i2ZRFXE..ZVW52201609-201904

NO.1

main90126-08052×5i2ZRFXE..ZVW52201609-201904

NO.2

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-37120i2ZRFXE..ZVW52201609-201904

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-37010i2ZRFXE..ZVW52201905

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-37030i2ZRFXE..ZVW52201804-201904

main17177-37050i2ZRFXE..ZVW52201609-201803

2211

25628BGASKET, EGR INLET

main25628-36020i2ZRFXE..ZVW52201609-201904

9011908C87

main90119-08C87

9017708003

main90177-08003

9167180616

main91671-80616

9167281025

main91672-81025

9415180800

main94151-80800

14 parts on this diagram · 2 diagrams in section
