WATER PUMP

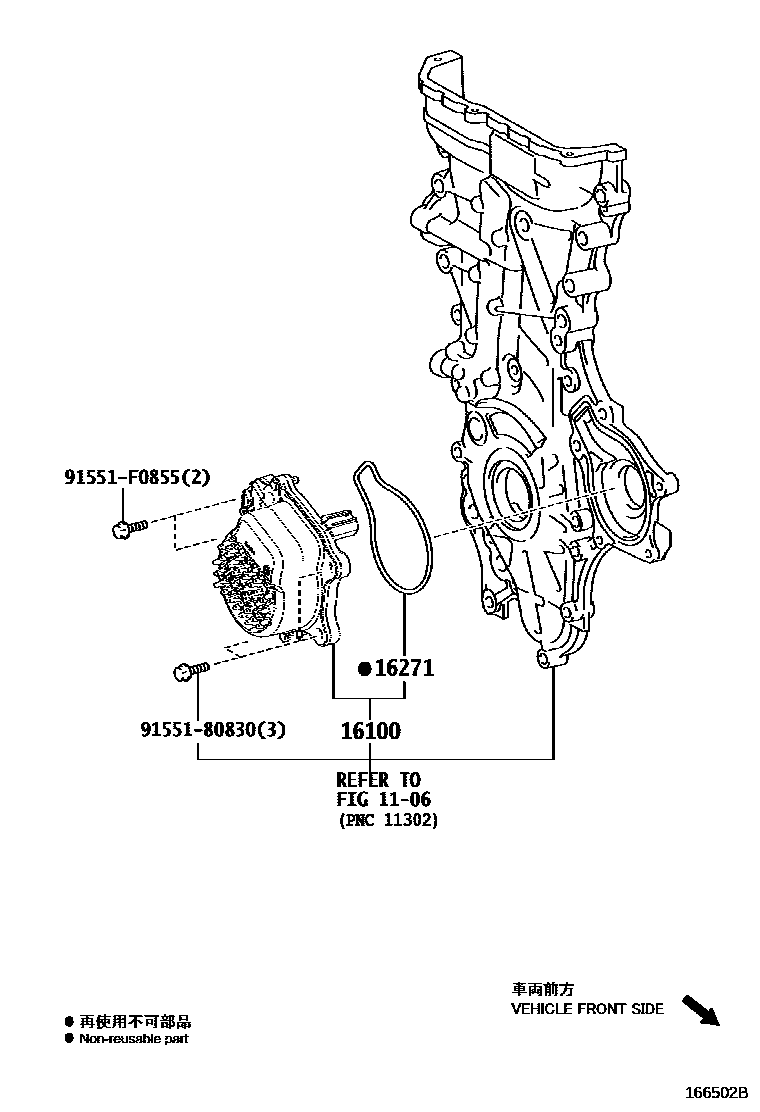

Parts diagram

1106

16100PUMP ASSY, ENGINE WATER

main161A0-39035i¥15,000201609-201904

16271GASKET, WATER PUMP

main16271-37020i¥470201609-201904

9155180830

main91551-80830¥80

91551F0855

main91551-F0855¥100

5 parts on this diagram · 1 diagram in section
