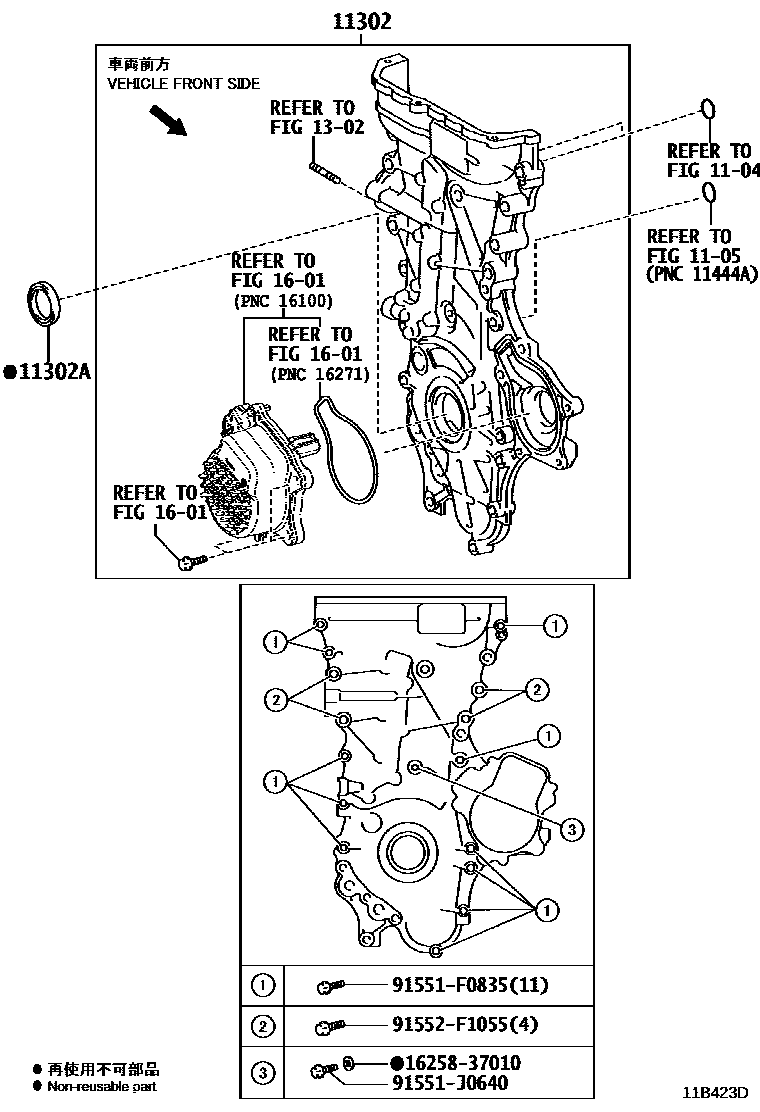

TIMING GEAR COVER & REAR END PLATE

1104

1105

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-37080i2ZRFXE..ZVW52201609-201904

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-38096i2ZRFXE..ZVW52201609-201904

1302

1601

1625837010GASKET(FOR HEATER RETURN)

main16258-37010

91551F0835

main91551-F0835

91551J0640

main91551-J0640

91552F1055

main91552-F1055

10 parts on this diagram · 1 diagram in section
