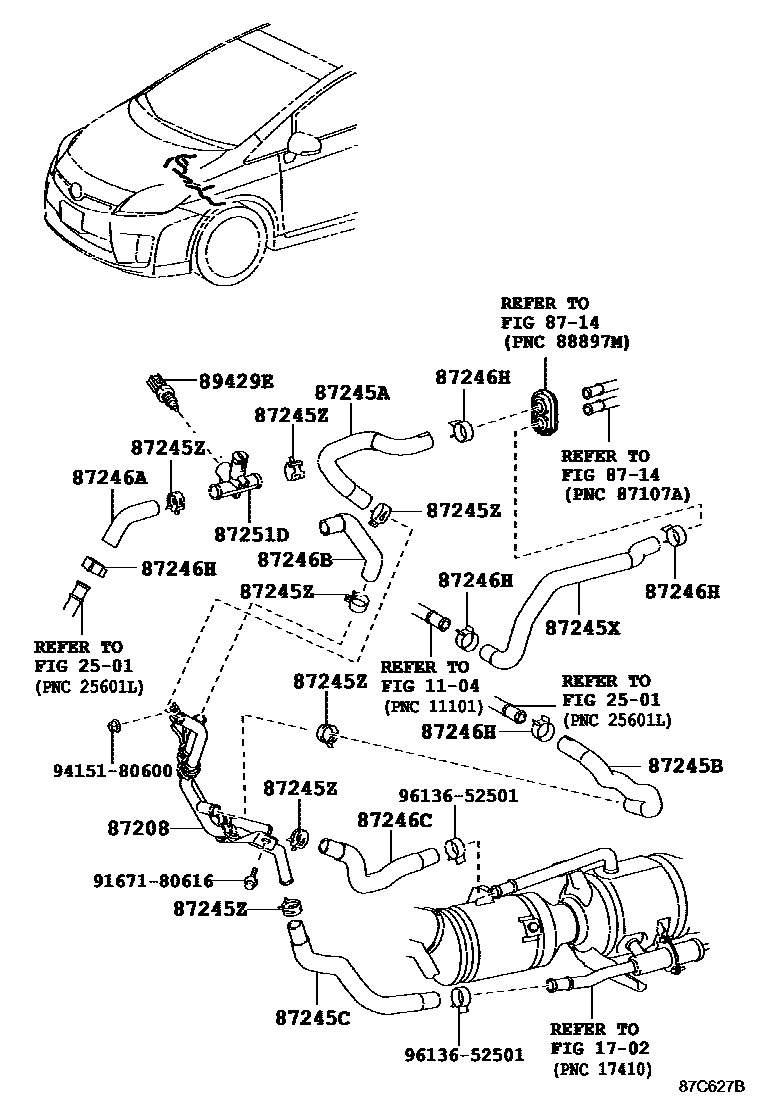

HEATING & AIR CONDITIONING - WATER PIPING

1104

1702

2501

8714

87208PIPE SUB-ASSY, HEATER WATER

main87208-47050iZVW35¥0201205

87245AHOSE, HEATER WATER, INLET A

main87245-47320iZVW35¥1,090201205

87245BHOSE, HEATER WATER, INLET B

main87245-47310iZVW35¥1,490201205

87245CHOSE, HEATER WATER ,INLET C

main87245-47300iZVW35¥1,430201205

87245XHOSE, HEATER WATER

main87245-47260iZVW35¥1,550201205

87245ZCLIP OR CLAMP (FOR HEATER WATER HOSE)

main90467-22011iZVW35¥240201205

87246AHOSE, HEATER WATER, OUTLET A

main87245-47270iZVW35¥440201205

87246BHOSE, HEATER WATER, OUTLET B

main87245-47280iZVW35¥760201205

87246CHOSE, HEATER WATER, OUTLET C

main87245-47290iZVW35¥1,140201205

87246HCLIP OR CLAMP(FOR HEATER WATER HOSE)

main96136-42501iZVW35¥200201205-201511

main96138-42501iZVW35¥180201511

87251DJOINT, WATER, NO.1

main87251-47020iZVW35¥0201205

89429ESENSOR, WATER TEMPERATURE

main89429-47010iZVW35¥2,410201205-201604

9167180616

main91671-80616¥60

9415180600

main94151-80600¥60

9613652501

main96136-52501¥200

19 parts on this diagram · 1 diagram in section
