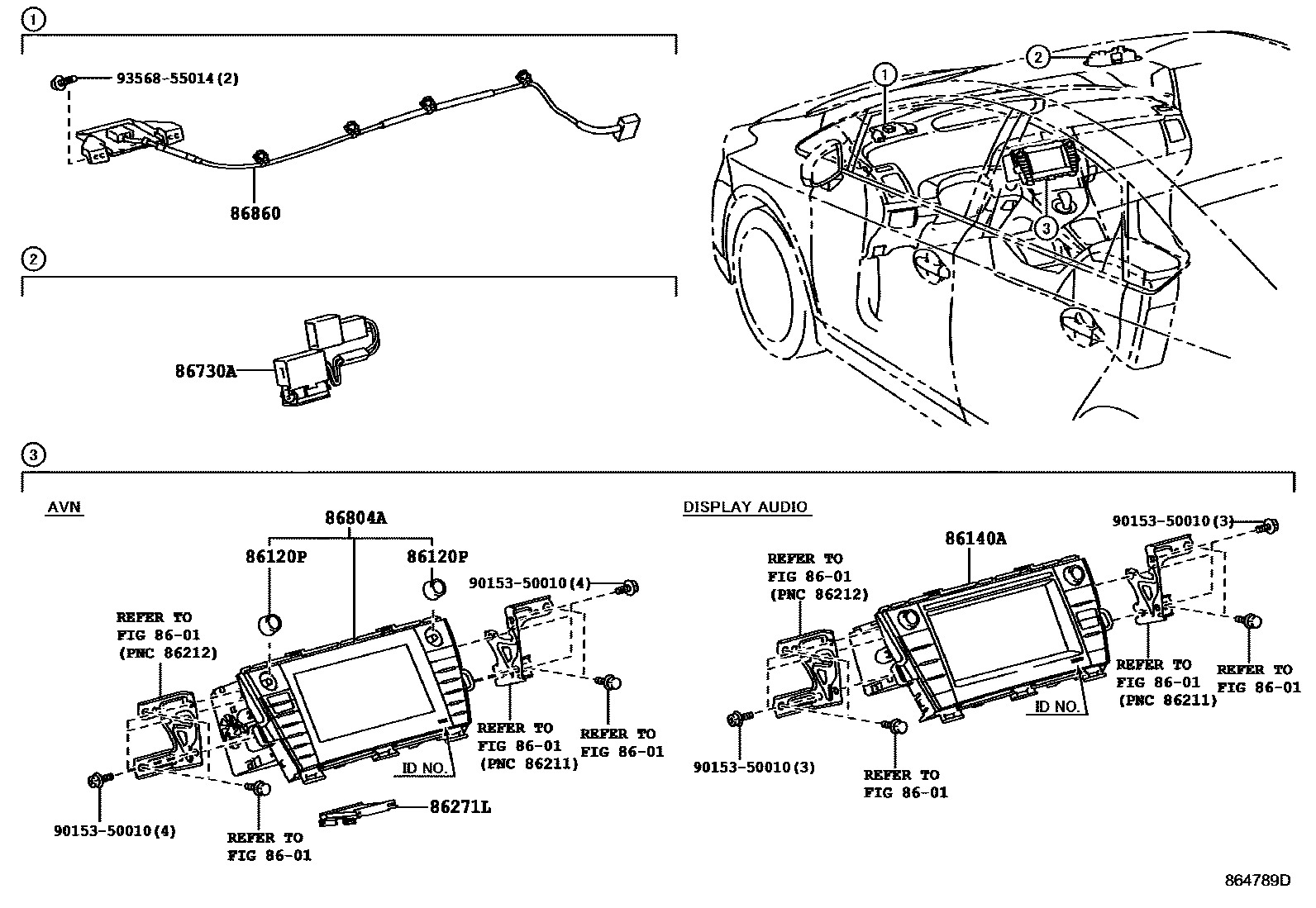

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1

8601

86120PKNOB, NAVIGATION RECEIVER SWITCH

86140ARECEIVER ASSY, RADIO & DISPLAY

main86140-47080iZVW35..RHD201205-201310

PANASONIC,ID=57036

sub86140-47081

main86140-47090iZVW35..LHD201205

PANASONIC,ID=57035

sub86140-47091

main86140-47100iZVW35..RHD201310

PANASONIC,ID=57038

sub86140-47101

86271LHARD DISC

86730AMICROPHONE ASSY, TELEPHONE

main86730-20050iZVW35..LHD201205-201604

AUDIO-RADIO LESS 6SPEAKER

main86730-28040iZVW35..RHD201205-201507

ENGLAND SPEC&AUDIO-RADIO LESS 6SPEAKER

main86730-28040iZVW35..RHD201205-201507

AUDIO-RADIO LESS 6SPEAKER

main86730-53030iZVW35..RHD201507-201604

ENGLAND SPEC&AUDIO-RADIO LESS 6SPEAKER

main86730-53030iZVW35..RHD201507-201604

AUDIO-RADIO LESS 6SPEAKER

86804ASUB-ASSY, NAVIGATION COMPUTER

86860ANTENNA ASSY, NAVIGATION

main86860-47070

9015350010

main90153-50010

9356855014

main93568-55014

9 parts on this diagram · 2 diagrams in section
