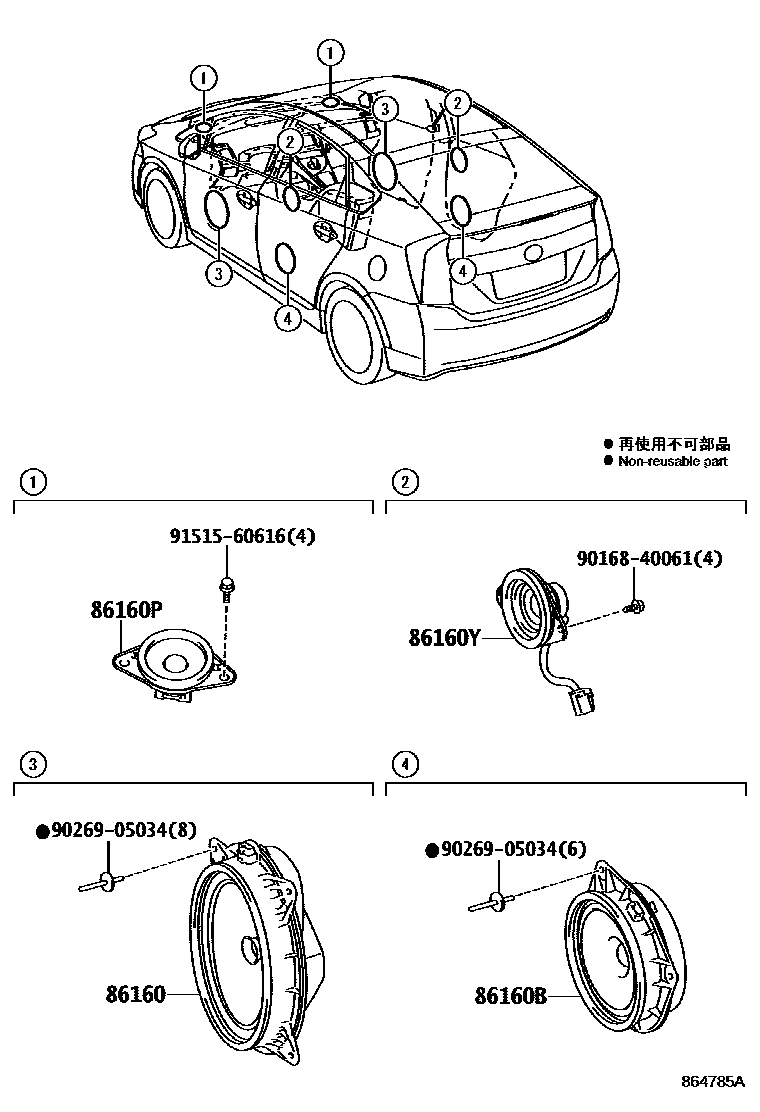

SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-0WV50×2supersedes 86160-58240i201310-201508

main86160-47190×2supersedes 86160-58240i201509

UPPER PACKAGE(STEERING:LEATHER)&SMART ENTRY-WITH(FRONT & BACK DOOR)

86160BSPEAKER ASSY, REAR

main86160-0WV60×2supersedes 86160-52330i201310-201508

main86160-47210×2supersedes 86160-52330i201509

UPPER PACKAGE(STEERING:LEATHER)&SMART ENTRY-WITH(FRONT & BACK DOOR)

86160PSPEAKER ASSY, FRONT NO.2

main86160-0WV70×2supersedes 86160-47070i201310-201508

main86160-47200×2supersedes 86160-47070i201509

UPPER PACKAGE(STEERING:LEATHER)&SMART ENTRY-WITH(FRONT & BACK DOOR)

86160YSPEAKER ASSY, REAR NO.2

main86160-0WX10×2i201310-201509

main86160-47230×2i201510-201604

UPPER PACKAGE(STEERING:LEATHER)&SMART ENTRY-WITH(FRONT & BACK DOOR)

9016840061

9026905034

9151560616

7 parts on this diagram · 1 diagram in section
