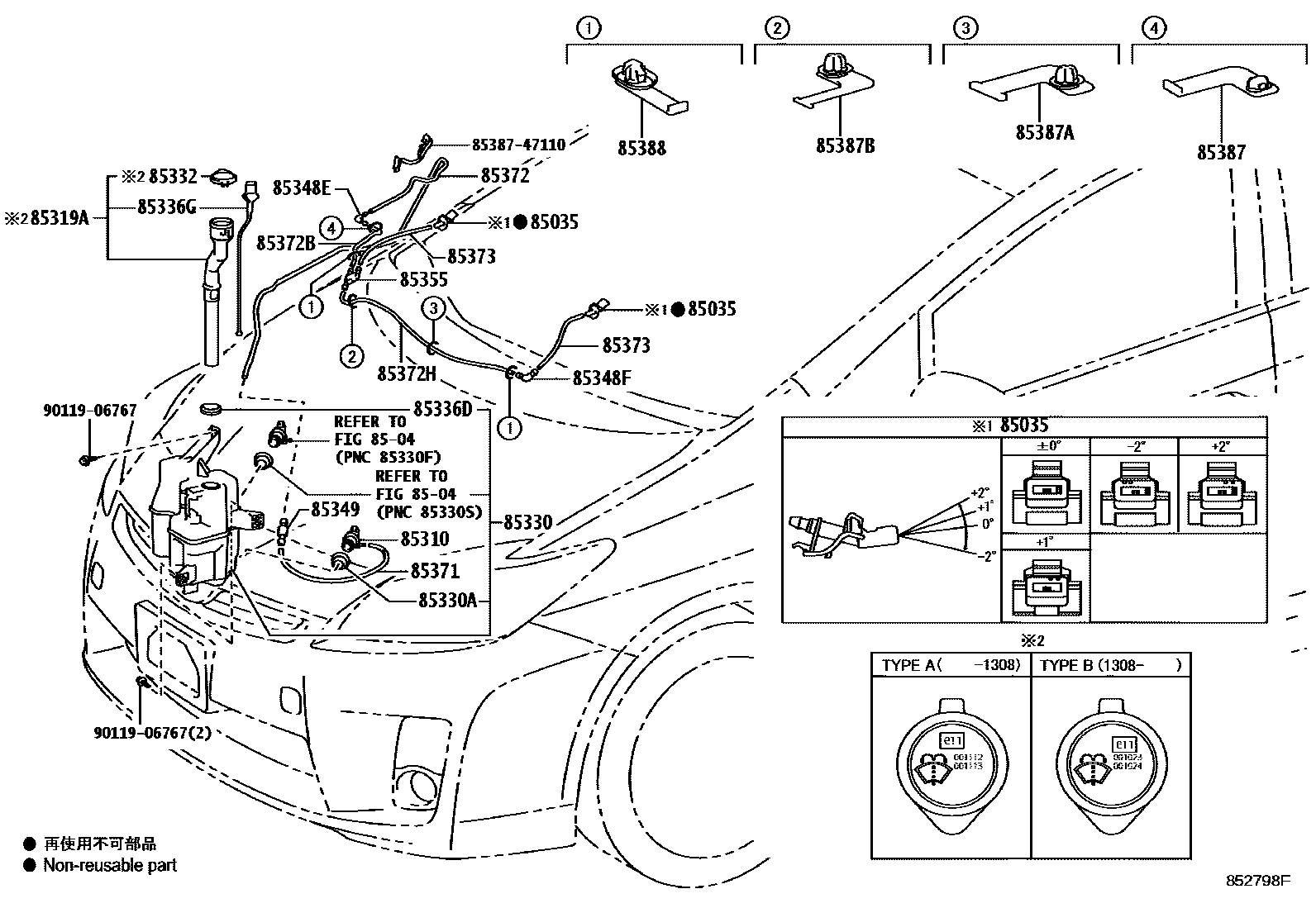

WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
ANGLE +2
ANGLE 0
ANGLE -2
8504
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85319AHOSE, INLET
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
85336DPACKING, WINDSHIELD WASHER JAR
85336GGAGE, WATER LEVEL
85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2
85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3
85349JOINT, WINDSHIELD WASHER HOSE, NO.1
85355VALVE, WINDSHIELD WASHER HOSE
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=470,HEADLAMP-LED
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=1450(*H,L=1380)
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=1450(*H,L=300)
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
L=1450(*H,L=830)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=250)
85387CLAMP NO.1 (FOR WINDSEIELD WASHER)
85387ACLAMP, WASHER, NO.2
85387BCLAMP, WASHER, NO.3
85388CLAMP NO.2 (FOR WINDSEIELD WASHER)
8538747110CLAMP NO.1 (FOR WINDSEIELD WASHER)
main85387-47110
9011906767
main90119-06767
24 parts on this diagram · 2 diagrams in section
