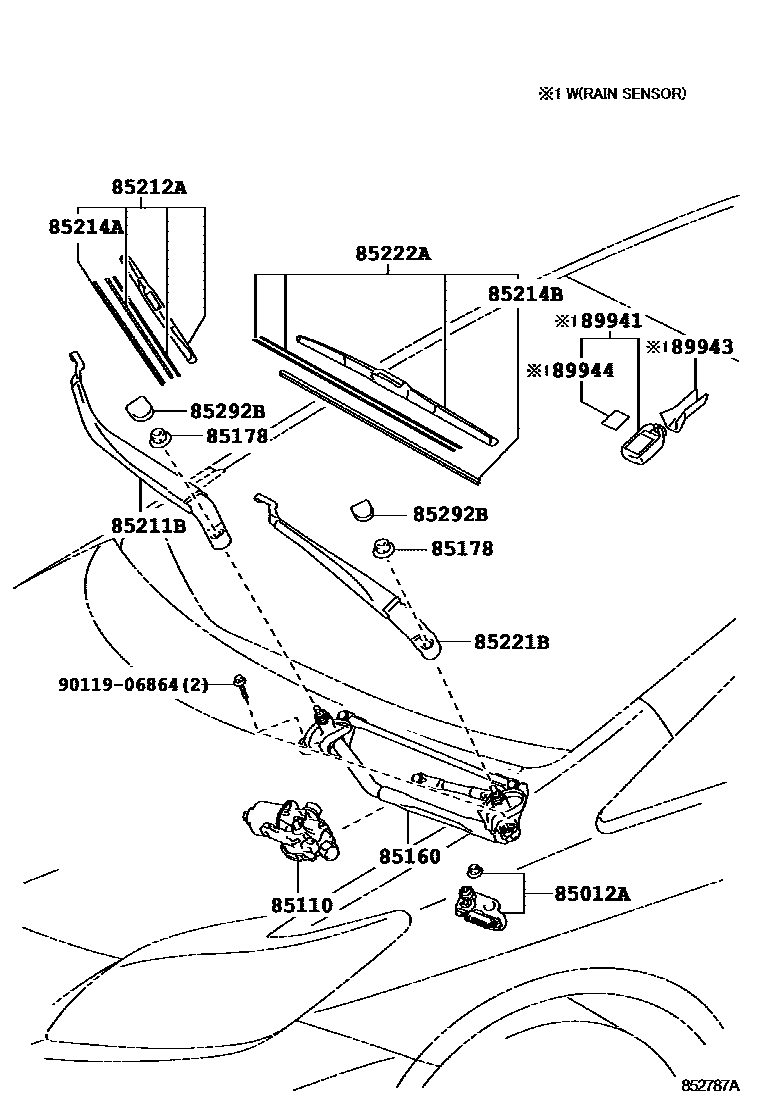

WINDSHIELD WIPER

0001 1 0002 1

85012ACRANK SUB-ASSY, FRONT WIPER

main85012-50010iZVW35..RHD201205

main85012-58030iZVW35..LHD201205

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-47200iZVW35..RHD201205

main85110-47210iZVW35..LHD201205

85160LINK ASSY, WINDSHIELD WIPER

main85150-47121iZVW35..RHD201205

main85150-47131iZVW35..LHD201205

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-10223iZVW35201205-201207

main90182-10006iZVW35201207

85211BARM, FRONT WIPER, RH

main85211-47110iZVW35..LHD201205

main85211-47121iZVW35..RHD201205

85212ABLADE, FR WIPER, RH

main85212-47030iZVW35..LHD201205

main85212-68050iZVW35..RHD201205

85214ARUBBER, WIPER, RH

main85214-28090iZVW35..LHD201205

main85214-68020iZVW35..RHD201205

sub85214-52110

85214BRUBBER, WIPER, LH

main85214-28090iZVW35..RHD201205

main85214-68020iZVW35..LHD201205

sub85214-52110

85221BARM, FRONT WIPER, LH

main85221-47080iZVW35..RHD201205

main85221-47101iZVW35..LHD201205

85222ABLADE, FR WIPER, LH

main85222-28180iZVW35..RHD201205

main85222-75011iZVW35..LHD201205

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010iZVW35201205

89941SENSOR, RAIN

main89941-42010iZVW35..RHD201310

89943COVER, RAIN SENSOR

main89943-47010iZVW35..RHD201310

89944TAPE, RAIN SENSOR

main89944-42010iZVW35..RHD201310

9011906864

main90119-06864

15 parts on this diagram · 2 diagrams in section
