TIRE PRESSURE WARNING SYSTEM

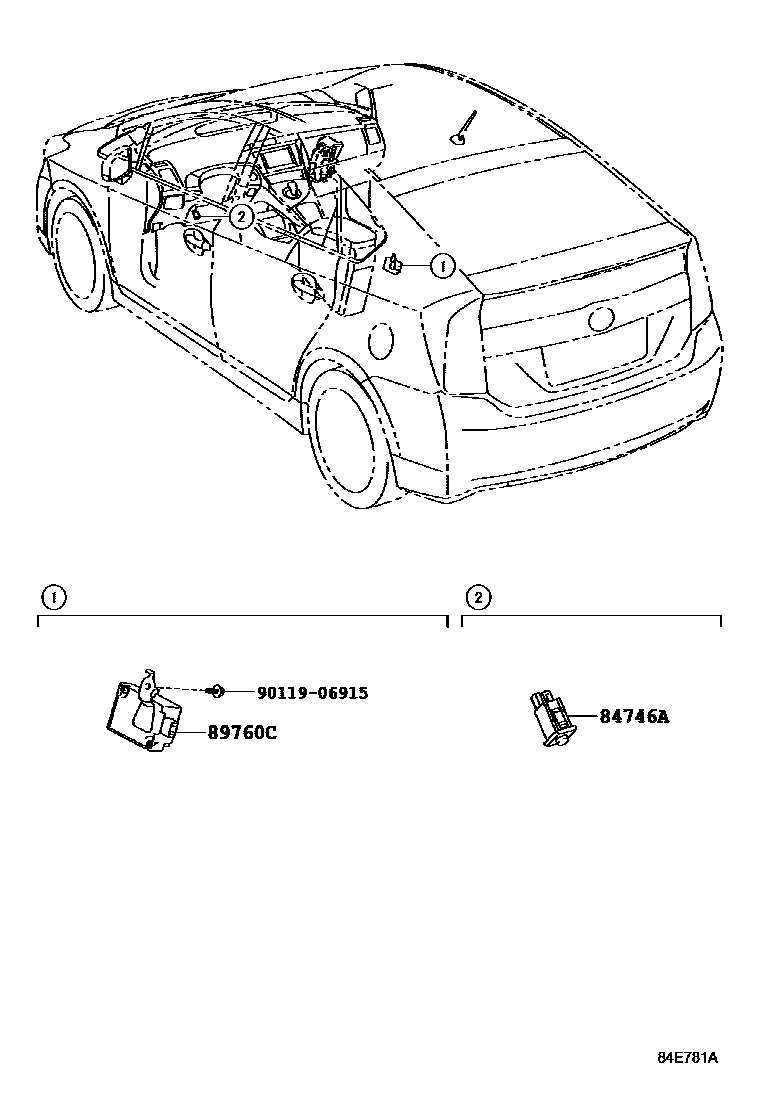

Parts diagram

84746ASWITCH, TIRE PRESSURE WARNING, NO.1

main84746-47010i201405

89760CRECEIVER ASSY, TIRE PRESSURE MONITOR

main89760-47050i201405

9011906915

main90119-06915

3 parts on this diagram · 1 diagram in section
