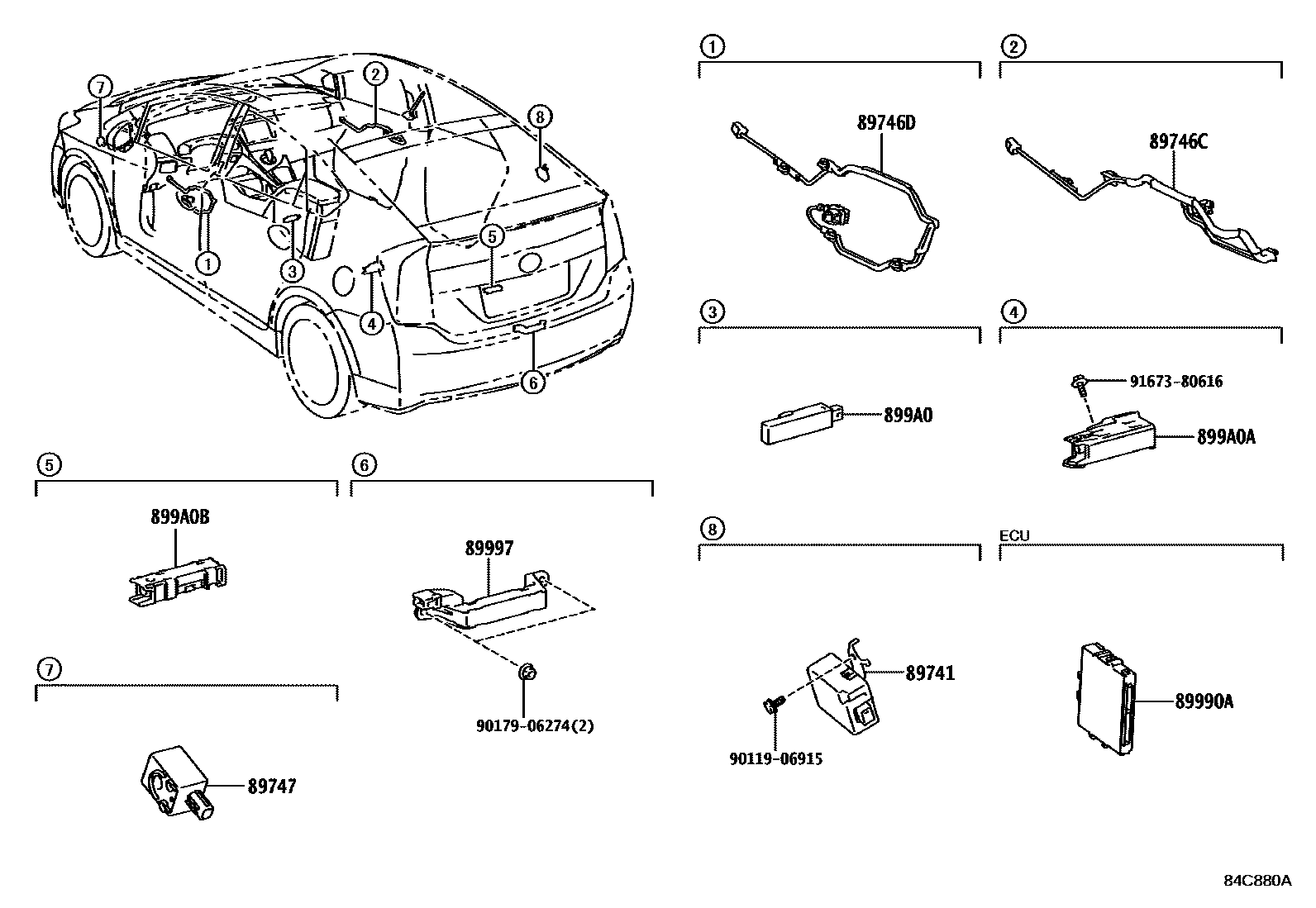

WIRELESS DOOR LOCK

0001 1 0002 1

89741RECEIVER, DOOR CONTROL

main89740-47031iZVW35201205

89746CHARNESS, ELECTRICAL KEY WIRE, NO.1

main89746-47040iZVW35..RHD201205

89746DHARNESS, ELECTRICAL KEY WIRE, NO.2

main89746-47050iZVW35..LHD201205

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iZVW35201205

89990ACOMPUTER ASSY, SMART KEY

main89990-47161iZVW35..LHD201211-201604

main89990-47171supersedes 89990-47161iZVW35..RHD201310-201604

main89990-47170supersedes 89990-47160iZVW35201205-201210

SMART ENTRY-WITH(FRONT & BACK DOOR)

89997ANTENNA, ELECTRICAL KEY

main89997-30070iZVW35..RHD201310

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-47010iZVW35201205

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-47020iZVW35201205

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-52070iZVW35201205

9011906915

main90119-06915

9017906274

main90179-06274

9167380616

main91673-80616

12 parts on this diagram · 2 diagrams in section
