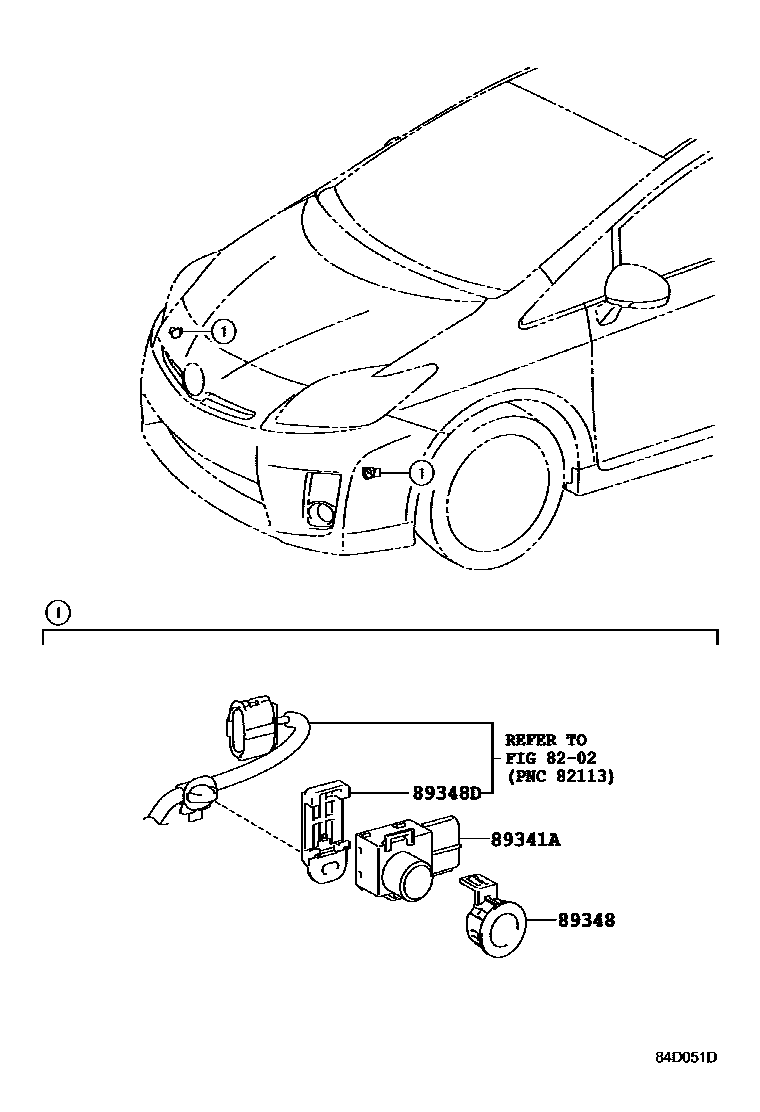

CLEARANCE & BACK SONAR

8202

89341ASENSOR, ULTRASONIC, NO.1

main89341-28480-A0×2i201205-201507

HEADLAMP-LED&AUDIO-AVN *BT USB JBL 8SPEAKER&EMV & NAVIGATION SYSTEM-AVN,WHITE PEARL CS.,070

main89341-28480-A1×2i201205-201310

AUDIO-AVN *BT USB JBL 8SPEAKER&EMV & NAVIGATION SYSTEM-AVN,SUPER WHITE 2,040

main89341-28480-B1×2i201205-201507

AUDIO-AVN *BT USB JBL 8SPEAKER&EMV & NAVIGATION SYSTEM-AVN,SILVER ME.,1F7

main89341-28480-C2×2i201205-201310

HEADLAMP-LED&AUDIO-AVN *BT USB JBL 8SPEAKER&EMV & NAVIGATION SYSTEM-AVN,ATTITUDE BLACK MC.,218

main89341-28480-D1×2i201205-201310

HEADLAMP-LED&AUDIO-AVN *BT USB JBL 8SPEAKER&EMV & NAVIGATION SYSTEM-AVN,RED M.M.,3R3

main89341-28480-J4×2i201205-201507

HEADLAMP-LED&AUDIO-AVN *BT USB JBL 8SPEAKER&EMV & NAVIGATION SYSTEM-AVN,ABYSS GRAYME.,8V1

main89341-28480-J6×2i201205-201310

HEADLAMP-LED&AUDIO-AVN *BT USB JBL 8SPEAKER&EMV & NAVIGATION SYSTEM-AVN,TRUE BLUEM.M.,8W1

89348RETAINER, ULTRASONIC SENSOR, NO.1

main89348-12010-A0×2i201205-201310

AUDIO-AVN *BT USB JBL 8SPEAKER&EMV & NAVIGATION SYSTEM-AVN,SUPER WHITE 2,040

main89348-12010-A1×2i201205-201310

HEADLAMP-LED&AUDIO-AVN *BT USB JBL 8SPEAKER&EMV & NAVIGATION SYSTEM-AVN,WHITE PEARL CS.,070

main89348-12010-B0×2i201205-201507

AUDIO-AVN *BT USB JBL 8SPEAKER&EMV & NAVIGATION SYSTEM-AVN,SILVER ME.,1F7

main89348-12010-C2×2i201205-201310

HEADLAMP-LED&AUDIO-AVN *BT USB JBL 8SPEAKER&EMV & NAVIGATION SYSTEM-AVN,ATTITUDE BLACK MC.,218

main89348-12010-D0×2i201205-201310

HEADLAMP-LED&AUDIO-AVN *BT USB JBL 8SPEAKER&EMV & NAVIGATION SYSTEM-AVN,RED M.M.,3R3

main89348-12010-J5×2i201205-201310

AUDIO-AVN *BT USB JBL 8SPEAKER&EMV & NAVIGATION SYSTEM-AVN,ABYSS GRAY ME.,8V1

main89348-12010-J8×2i201205-201507

HEADLAMP-LED&AUDIO-AVN *BT USB JBL 8SPEAKER&EMV & NAVIGATION SYSTEM-AVN,TRUE BLUEM.M.,8W1

89348DCLIP, ULTRASONIC SENSOR

main89348-33090×2i201205-201310

HEADLAMP-LED&AUDIO-AVN *BT USB JBL 8SPEAKER&EMV & NAVIGATION SYSTEM-AVN

4 parts on this diagram · 1 diagram in section
