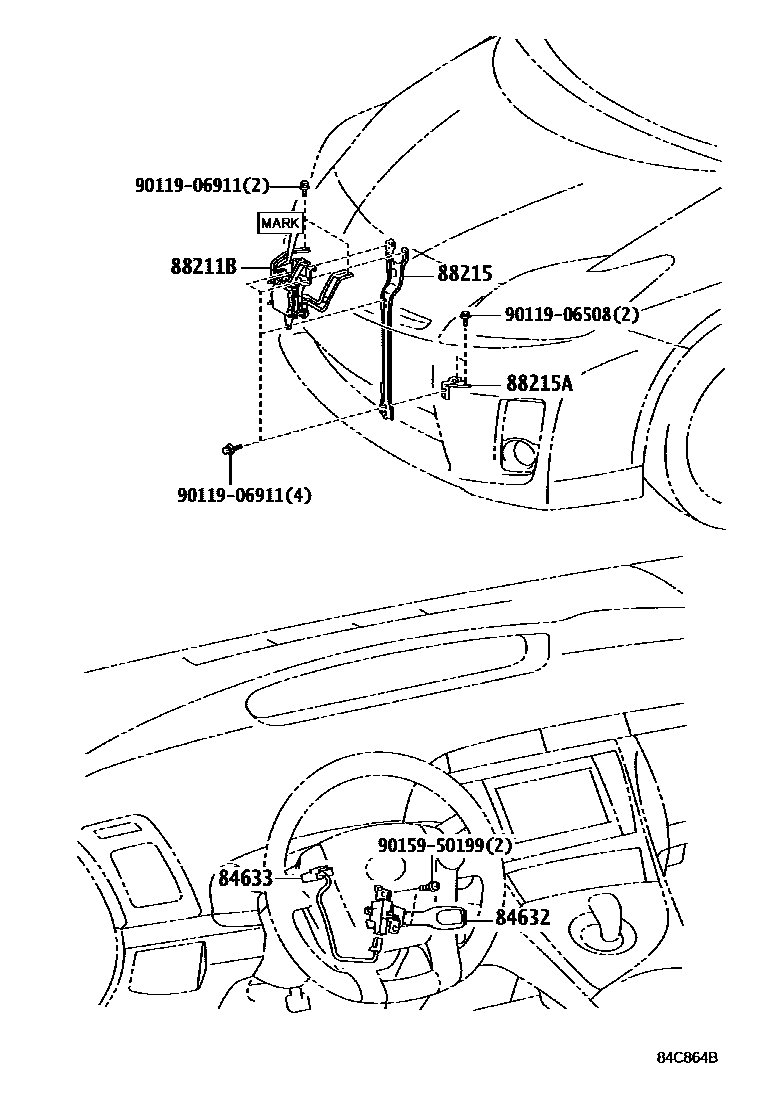

CRUISE CONTROL (AUTO DRIVE)
84632SWITCH, CRUISE CONTROL MAIN
CRUISE CONTROL-WITHOUT
CRUISE CONTROL-WITH(MICRO WAVE TYPE))
UPPER PACKAGE(STEERING:LEATHER)&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SMART ENTRY-WITH(FRONT & BACK DOOR)
84633WIRE, CRUISE CONTROL SWITCH
CRUISE CONTROL-WITH(MICRO WAVE TYPE))
UPPER PACKAGE(STEERING:LEATHER)&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SMART ENTRY-WITH(FRONT & BACK DOOR)
CRUISE CONTROL-WITHOUT
88211BSENSOR ASSY, MILLIMETER WAVE RADAR
CRUISE CONTROL-WITH(MICRO WAVE TYPE)),MARK=88210-47060
CRUISE CONTROL-WITH(MICRO WAVE TYPE)),MARK=88210-47061
UPPER PACKAGE(STEERING:LEATHER)&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SMART ENTRY-WITH(FRONT & BACK DOOR),MARK=88210-47061
88215BRACKET, MILLIMETER WAVE RADAR SENSOR, NO.1
CRUISE CONTROL-WITH(MICRO WAVE TYPE))
UPPER PACKAGE(STEERING:LEATHER)&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SMART ENTRY-WITH(FRONT & BACK DOOR)
88215ABRACKET, MILLIMETER WAVE RADAR SENSOR, NO.2
CRUISE CONTROL-WITH(MICRO WAVE TYPE))
UPPER PACKAGE(STEERING:LEATHER)&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SMART ENTRY-WITH(FRONT & BACK DOOR)
9011906508
main90119-06508
9011906911
main90119-06911
9015950199
main90159-50199
8 parts on this diagram · 2 diagrams in section
