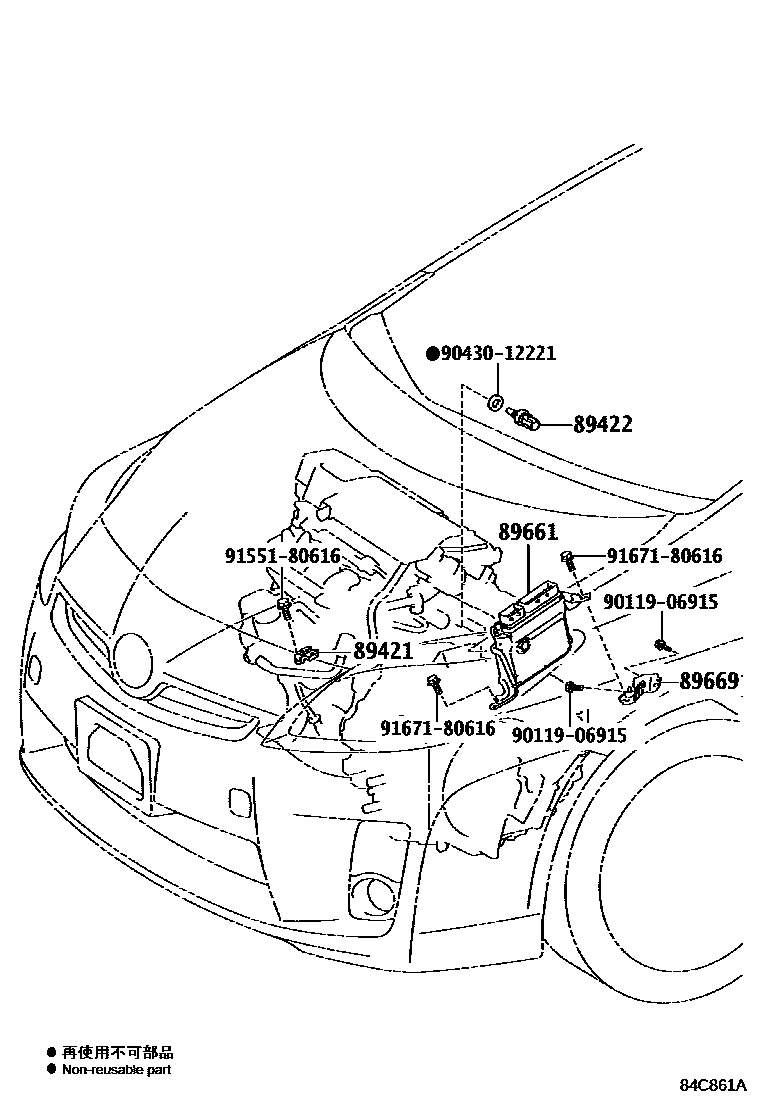

ELECTRONIC FUEL INJECTION SYSTEM

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-47010iZVW35201205

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iZVW35201205

89661COMPUTER, ENGINE CONTROL

main89660-47490iZVW35201305

main89660-47570iZVW35201205-201304

sub89660-47490

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-47070iZVW35201205

9011906915

main90119-06915

9043012221

main90430-12221

9155180616

main91551-80616

9167180616

main91671-80616

8 parts on this diagram · 1 diagram in section
