FOG LAMP

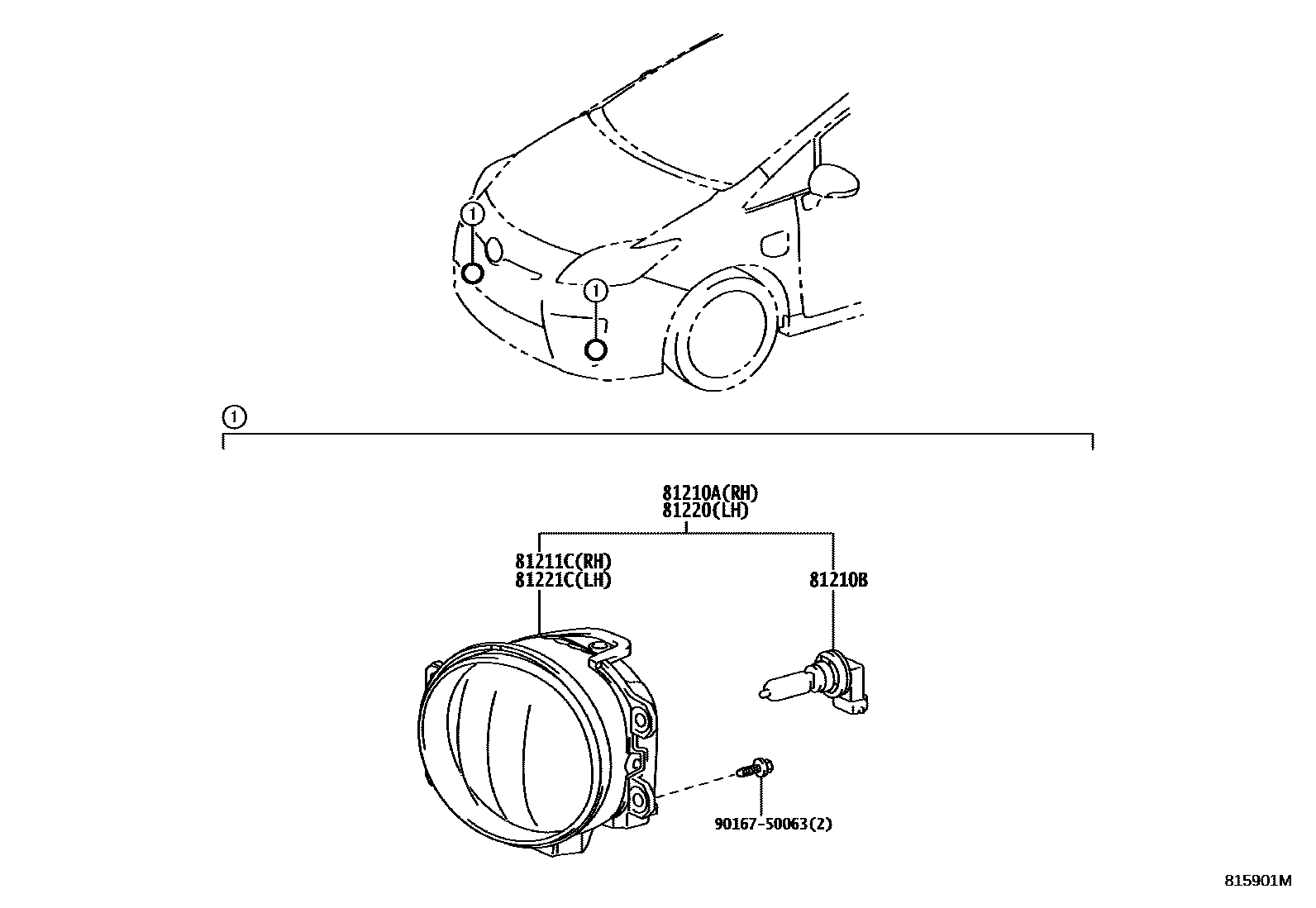

Parts diagram

81210ALAMP ASSY, FOG, RH

main81210-12230i201205-201402

main81210-47010i201403-201604

81210BBULB, FOG LAMP

main90981-13090×2i201205

12V 19W

81211CLAMP UNIT, FOG LAMP, RH

main81211-12230i201205-201402

main81211-47010i201403

81220LAMP ASSY, FOG, LH

main81220-12230i201205-201402

main81220-47010i201403-201604

81221CLAMP UNIT, FOG LAMP, LH

main81221-12230i201205-201402

main81221-47010i201403

9016750063

main90167-50063

6 parts on this diagram · 1 diagram in section
