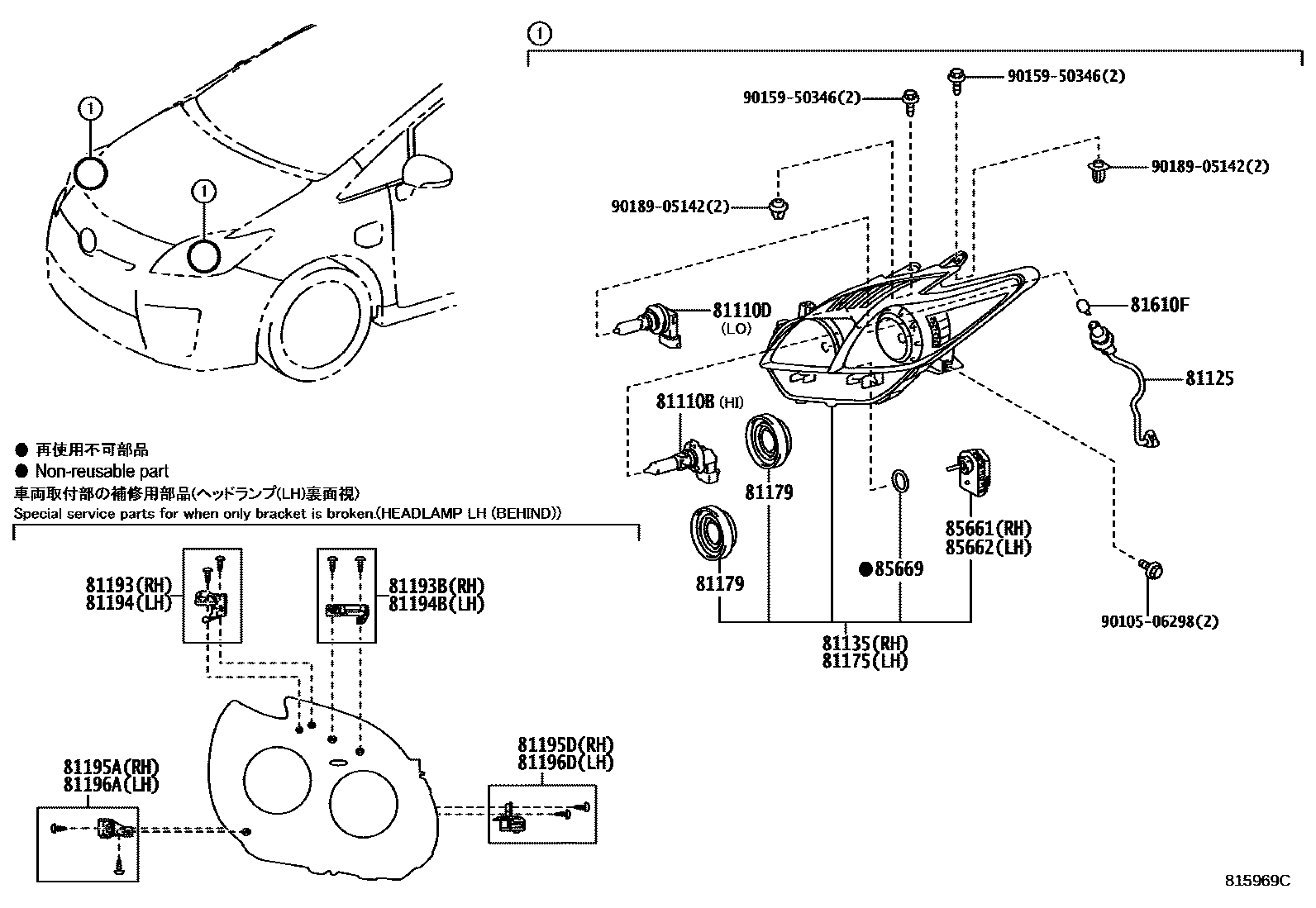

HEADLAMP

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13046×2i201205-201604

12V65W(SAE),60W(ECE)

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13075×2i201205-201310

12V 55W,HALOGEN

81125CORD, HEADLAMP

main81125-47230×2i201205-201310

81135UNIT ASSY, HEADLAMP, RH

main81145-47443supersedes 81130-47530i201310-201604

main81145-47441i201205-201305

HEADLAMP-LED

main81145-47442i201305-201307

HEADLAMP-LED

main81145-47451supersedes 81130-47540i201205-201305

HEADLAMP-LED

main81145-47452supersedes 81130-47540i201305-201307

HEADLAMP-LED

main81145-47453supersedes 81130-47540i201507-201604

UPPER PACKAGE(STEERING:LEATHER)&HEADLAMP-LED

81175UNIT ASSY, HEADLAMP, LH

main81185-47443supersedes 81170-47530i201310-201604

main81185-47441i201205-201305

HEADLAMP-LED

main81185-47442i201305-201307

HEADLAMP-LED

main81185-47451supersedes 81170-47540i201205-201305

HEADLAMP-LED

main81185-47452supersedes 81170-47540i201305-201307

HEADLAMP-LED

main81185-47453supersedes 81170-47540i201507-201604

UPPER PACKAGE(STEERING:LEATHER)&HEADLAMP-LED

81179COVER, HEADLAMP SOCKET

main90075-65006×4i201205-201310

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-47070supersedes 81193-47030i201310

81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

main81193-47080supersedes 81193-47040i201310

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-47070supersedes 81194-47030i201310

81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

main81194-47080supersedes 81194-47040i201310

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-47070supersedes 81195-47030i201310

81195DRETAINER, HEADLAMP PROTECTOR, LOWER RH NO.2

main81195-47040i201205

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-47070supersedes 81196-47030i201310

81196DRETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2

main81196-47040i201205

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2i201205-201310

12V 5W

85661MOTOR, HEADLAMP LEVELING, RH

main85661-12010i201205-201310

85662MOTOR, HEADLAMP LEVELING, LH

main85661-12010i201205-201310

85669PACKING, HEADLAMP LEVELING MOTOR BASE

main90075-99120×2i201205-201310

9010506298

main90105-06298

9015950346

main90159-50346

9018905142

main90189-05142

21 parts on this diagram · 2 diagrams in section
