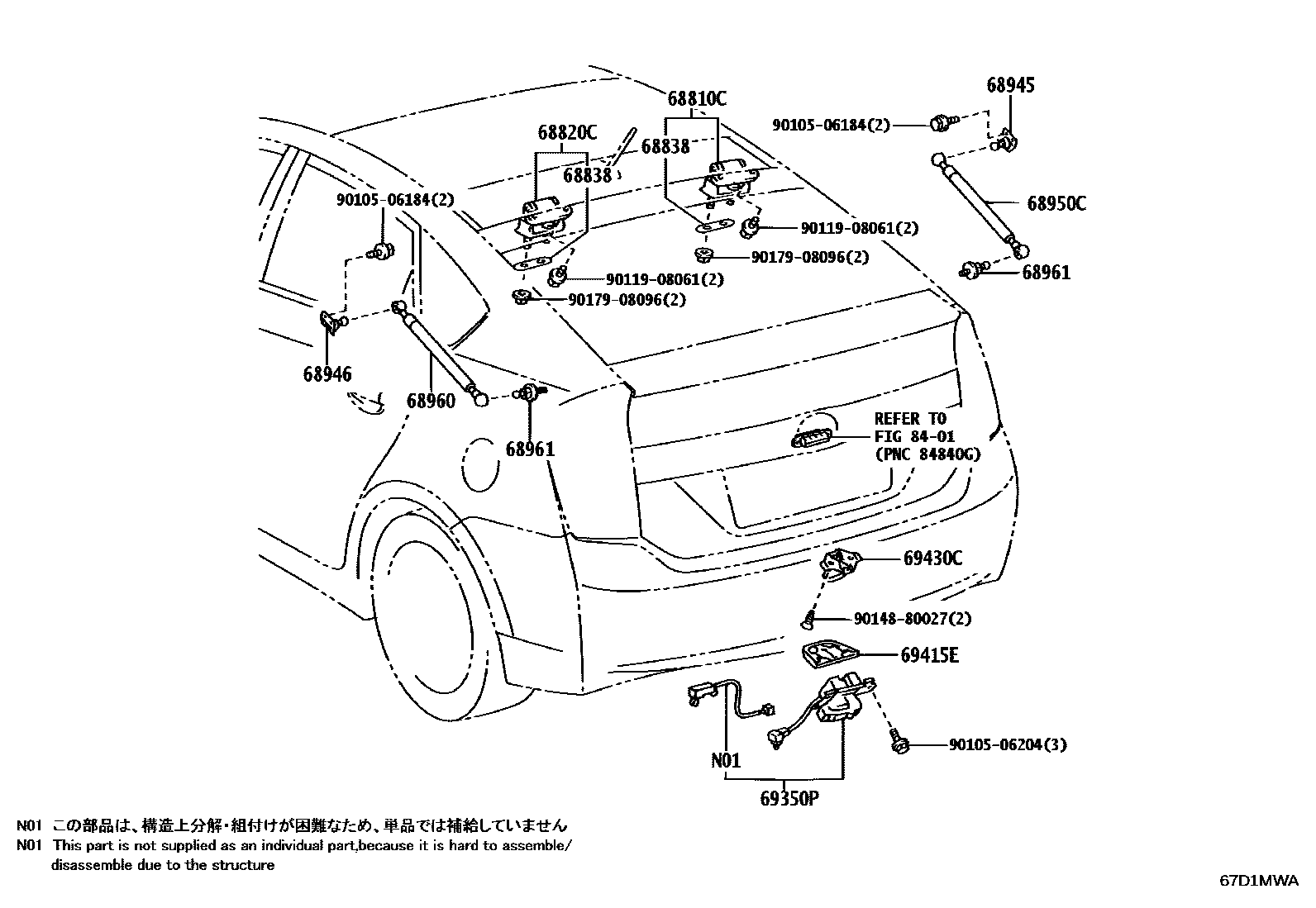

BACK DOOR LOCK & HANDLE

68810CHINGE ASSY, BACK DOOR, RH

main68810-47010iZVW35201205-201511

PAD T=1.0

main68810-47011iZVW35201512-201604

PAD T=1.0

68820CHINGE ASSY, BACK DOOR, LH

main68810-47010iZVW35201205-201511

PAD T=1.0

main68810-47011iZVW35201512

PAD T=1.0

68838PAD, BACK DOOR HINGE, NO.1

main68838-32010×2iZVW35201205

T=2.0

main68838-44020×2iZVW35201205

T=1.0

main68838-52020×2iZVW35201205

T=1.6

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-47010iZVW35201205

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68945-47010iZVW35201205

68950CSTAY ASSY, BACK DOOR, RH

main68950-0W542iZVW35201205

68960STAY ASSY, BACK DOOR, LH

main68960-0W532iZVW35201205

68961BOLT, BACK DOOR STAY

main68961-20140×2iZVW35201205

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-47030iZVW35201205-201206

sub69350-47031

main69350-47040iZVW35201207-201512

main69350-47041iZVW35201601-201604

sub69350-47042

69415ECOVER, BACK DOOR LOCK STRIKER

main69415-47020iZVW35201205

69430CSTRIKER ASSY, BACK DOOR LOCK

main69431-47010iZVW35201205

8401

9010506184

main90105-06184

9010506204

main90105-06204

9011908061

main90119-08061

9014880027

main90148-80027

9017908096

main90179-08096

17 parts on this diagram · 1 diagram in section
