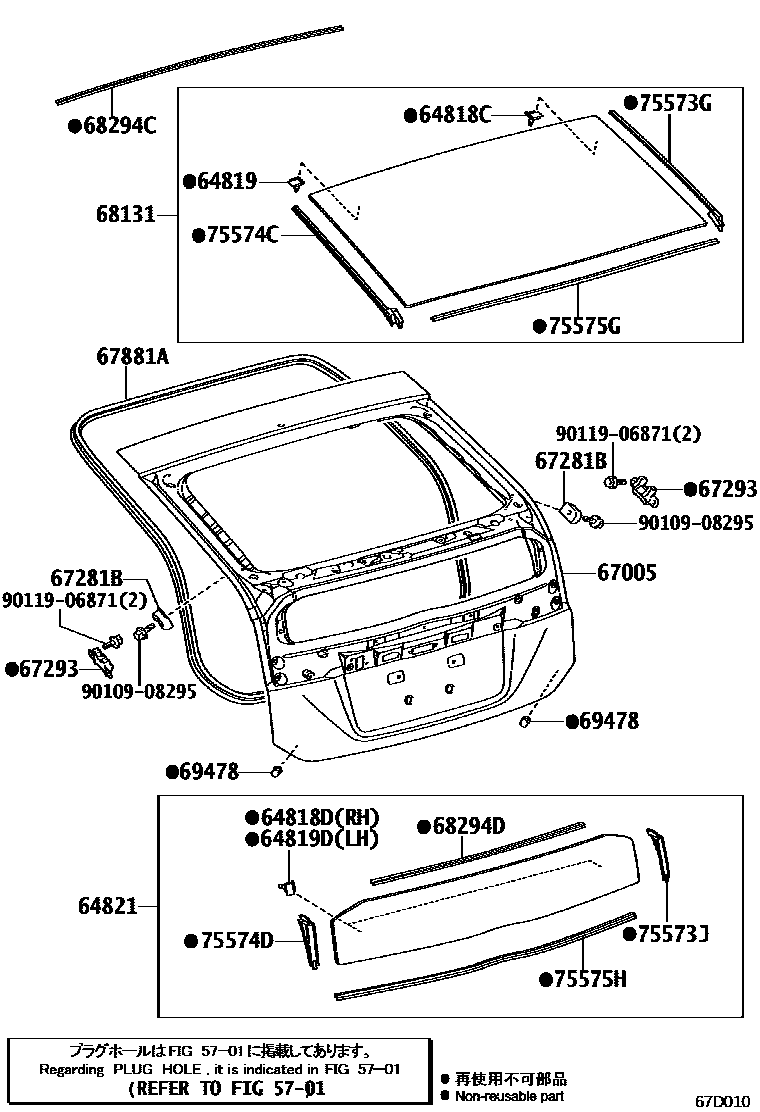

BACK DOOR PANEL & GLASS
5701
64818CSPACER, BACK WINDOW GLASS, NO.1
64818DSPACER, BACK WINDOW GLASS, NO.3
64819SPACER, BACK WINDOW GLASS, NO.2
64819DSPACER, BACK WINDOW GLASS, NO.4
67281BSTOPPER, BACK DOOR, LOWER
67293CUSHION, BACK DOOR LOWER STOPPER
67881AWEATHERSTRIP, BACK DOOR
68131GLASS, BACK DOOR
T=3.1,GREEN
T=3.1,GREEN
68294CDAM, BACK DOOR GLASS ADHESIVE, NO.1
68294DDAM, BACK DOOR GLASS ADHESIVE, NO.2
sub56117-74010
69478CUSHION, BACK DOOR LOWER STOPPER
75573GMOULDING, BACK WINDOW, OUTSIDE RH NO.1
75573JMOULDING, BACK WINDOW, OUTSIDE RH NO.2
75574CMOULDING, BACK WINDOW, OUTSIDE LH NO.1
75574DMOULDING, BACK WINDOW, OUTSIDE LH NO.2
75575GMOULDING, BACK WINDOW, LOWER NO.1
75575HMOULDING, BACK WINDOW, LOWER NO.2
9010908295
main90109-08295
9011906871
main90119-06871
22 parts on this diagram · 2 diagrams in section
