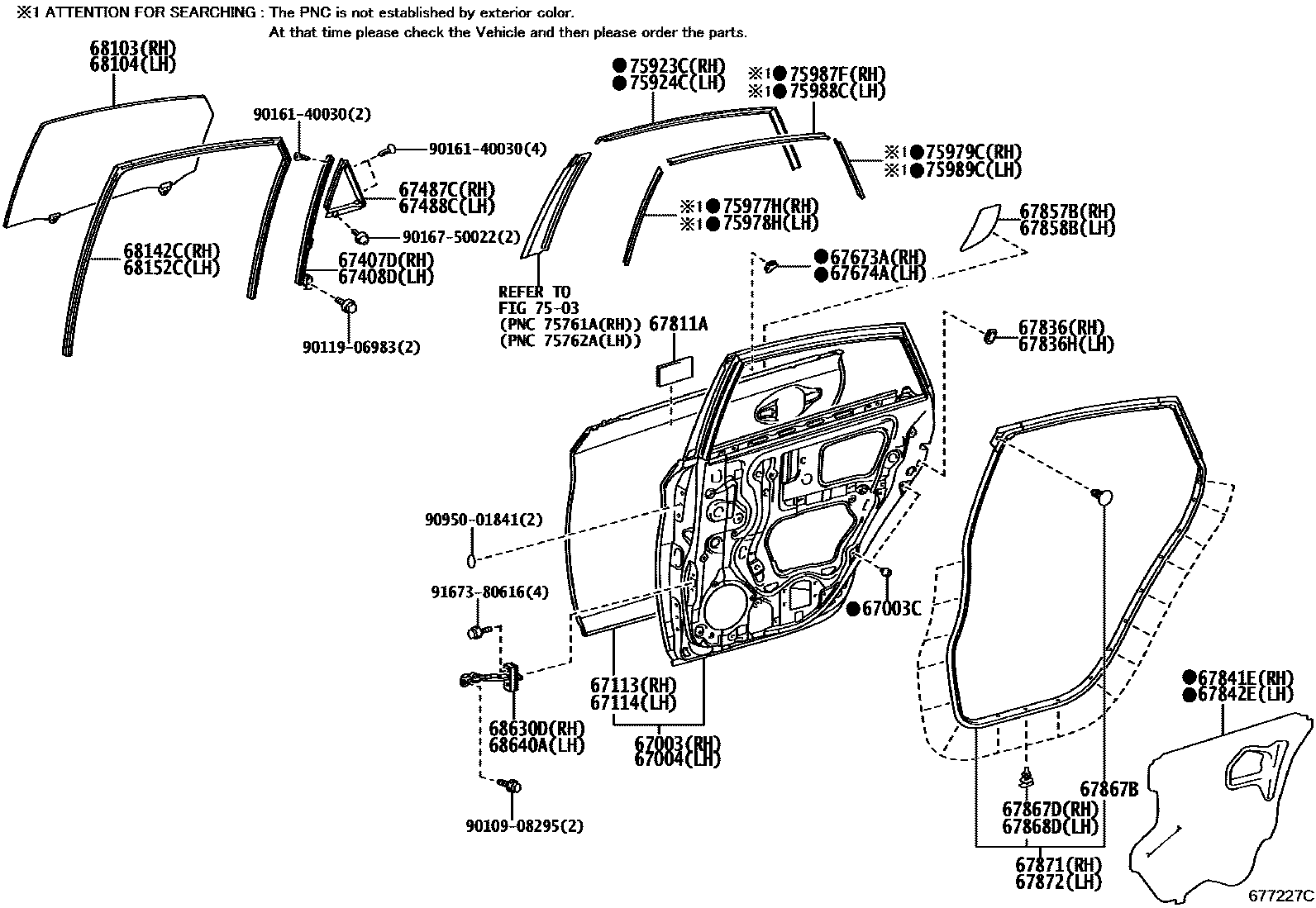

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
67003CCUSHION, REAR DOOR PANEL
67004PANEL SUB-ASSY, REAR DOOR, LH
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67407DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH
67408DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH
67487CSEAL, REAR DOOR REAR GUIDE, RH
67488CSEAL, REAR DOOR REAR GUIDE, LH
67673AGARNISH, REAR DOOR FRAME, RH
67674AGARNISH, REAR DOOR FRAME, LH
67811APAD, REAR DOOR SILENCER
67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67857BPROTECTOR, REAR DOOR PANEL, RH
67858BPROTECTOR, REAR DOOR PANEL, LH
67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
*UVCT,T=3.1,GREEN
68104GLASS SUB-ASSY, REAR DOOR, LH
*UVCT,T=3.1,GREEN
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68630DCHECK ASSY, REAR DOOR, RH
68640ACHECK ASSY, REAR DOOR, LH
7503
75923CTAPE, BLACK OUT, NO.2 RH
75924CTAPE, BLACK OUT, NO.2 LH
75977HSTRIPE, REAR DOOR OUTSIDE, LOWER RH
REFER TO ILLUST.
75978HSTRIPE, REAR DOOR OUTSIDE, LOWER LH
REFER TO ILLUST.
75979CSTRIPE, REAR DOOR, OUTSIDE UPPER RH
REFER TO ILLUST.
75987FSTRIPE, REAR DOOR, OUTSIDE, RH
REFER TO ILLUST.
75988CSTRIPE, REAR DOOR, OUTSIDE LH
REFER TO ILLUST.
75989CSTRIPE, REAR DOOR, OUTSIDE UPPER LH
REFER TO ILLUST.
9010908295
9011906983
9016140030
9016750022
9095001841
9167380616
44 parts on this diagram · 2 diagrams in section
