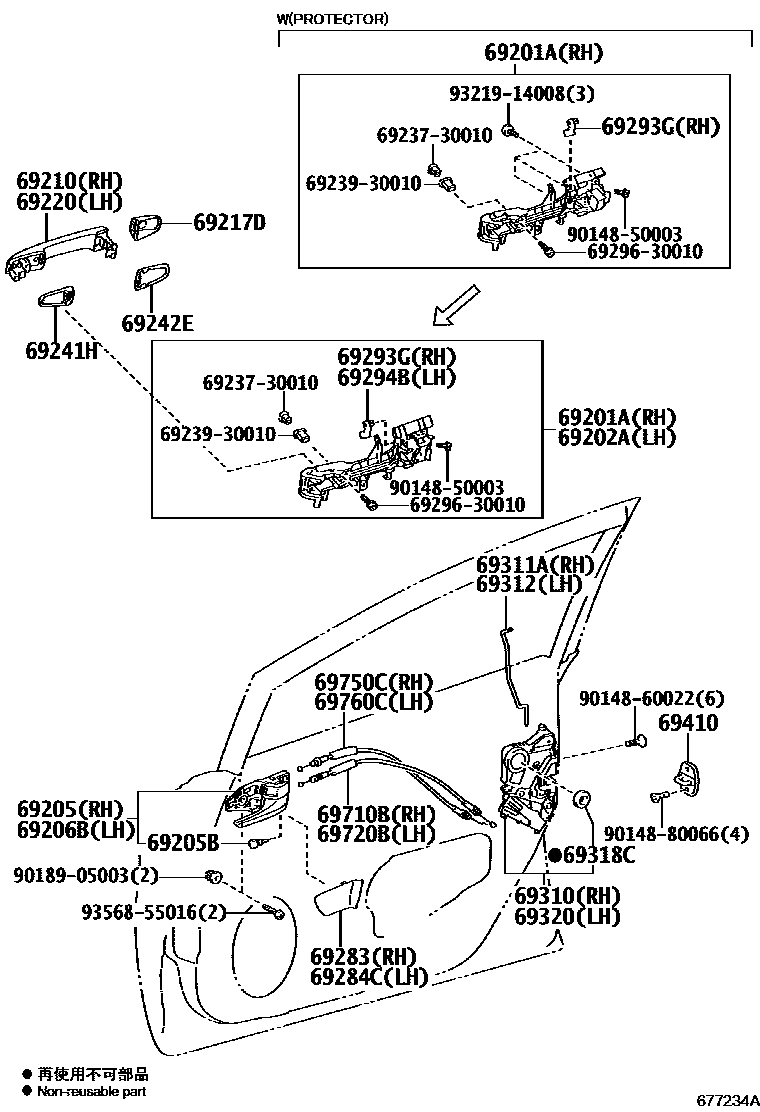

FRONT DOOR LOCK & HANDLE

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-30071iZVW35..LHD201205

main69201-47060iZVW35..RHD201205

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-30061iZVW35201205

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-47050-C0iZVW35201205-201604

BLACK,TRIM2#,6#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04027×2iZVW35201205

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-47050-C0iZVW35201205-201604

BLACK,TRIM2#,6#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-74030-B0supersedes 69211-74020-B0iZVW35..RHD201205-201310

SILVER ME.,8W1

main69210-74030-B9supersedes 69211-74020-P2iZVW35..RHD201205-201310

SMART ENTRY-WITH(FRONT & BACK DOOR),ORNAMENT SILVER,040 ,070 ,1F7 ,8V1

main69210-74030-P2iZVW35..RHD201310-201604

SUPER CHROME ME. 2,040 ,070 ,1F7 ,8V1 ,8W1

main69211-74020-P5iZVW35..LHD201310-201604

SUPER CHROME ME. 2,040 ,070 ,1F7 ,8V1 ,8W1

69217DCOVER, FRONT DOOR OUTSIDE HANDLE

main69217-74010-B0iZVW35201205-201310

SILVER ME.,8W1,DRIVER SIDE

main69217-74010-P2iZVW35201205-201310

ORNAMENT SILVER,040 ,070 ,1F7 ,8V1,DRIVER SIDE

main69217-74010-P5iZVW35201310-201604

SUPER CHROME ME. 2,040 ,070 ,1F7 ,8V1 ,8W1,DRIVER SIDE

main69250-74010-B0iZVW35201205-201310

SILVER ME.,8W1,PASSENGER SIDE

main69250-74010-P2iZVW35201205-201310

ORNAMENT SILVER,040 ,070 ,1F7 ,8V1,PASSENGER SIDE

main69250-74010-P5iZVW35201310-201604

SUPER CHROME ME. 2,040 ,070 ,1F7 ,8V1 ,8W1,PASSENGER SIDE

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-74030-B0supersedes 69211-74020-B0iZVW35..RHD201205-201310

SILVER ME.,8W1

main69210-74030-B9supersedes 69211-74020-P2iZVW35..RHD201205-201310

SMART ENTRY-WITH(FRONT & BACK DOOR),ORNAMENT SILVER,040 ,070 ,1F7 ,8V1

main69210-74030-P2iZVW35201310-201604

SUPER CHROME ME. 2,040 ,070 ,1F7 ,8V1 ,8W1

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-30111×2iZVW35201205

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-47020×2iZVW35201205

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-47010-C0iZVW35201205-201604

BLACK,TRIM2#

main69283-47010-G0iZVW35201205-201604

AQUA,TRIM6#

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main69284-47010-B2iZVW35201205-201506

DK.GRAY,TRIM60

main69284-47010-C0iZVW35201205-201604

BLACK,TRIM2#

main69284-47010-G0iZVW35201506-201604

AQUA,TRIM6#

69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-12030iZVW35201205

69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-12040iZVW35201205

69310LOCK ASSY, FRONT DOOR, RH

main69030-47070iZVW35..RHD201205

main69030-47081iZVW35..LHD201205-201211

main69030-47120iZVW35..LHD201211

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-47040iZVW35201205

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-47040iZVW35201205

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-47010×2iZVW35201205

69320LOCK ASSY, FRONT DOOR, LH

main69040-47070iZVW35..RHD201205

main69040-47120iZVW35..LHD201211

main69040-52340iZVW35..LHD201205-201211

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-33010×2iZVW35201205

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-47030iZVW35201205

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-47030iZVW35201205

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-47040iZVW35201205

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69750-47040iZVW35201205

6923730010RETAINER, DOOR OUTSIDE HANDLE

main69237-30010

6923930010PIN, BACK DOOR OUTSIDE HANDLE

main69239-30010

6929630010SCREW, DOOR INSIDE HANDLE

main69296-30010

9014850003

main90148-50003

9014860022

main90148-60022

9014880066

main90148-80066

9018905003

main90189-05003

9321914008

main93219-14008

9356855016

main93568-55016

33 parts on this diagram · 1 diagram in section
