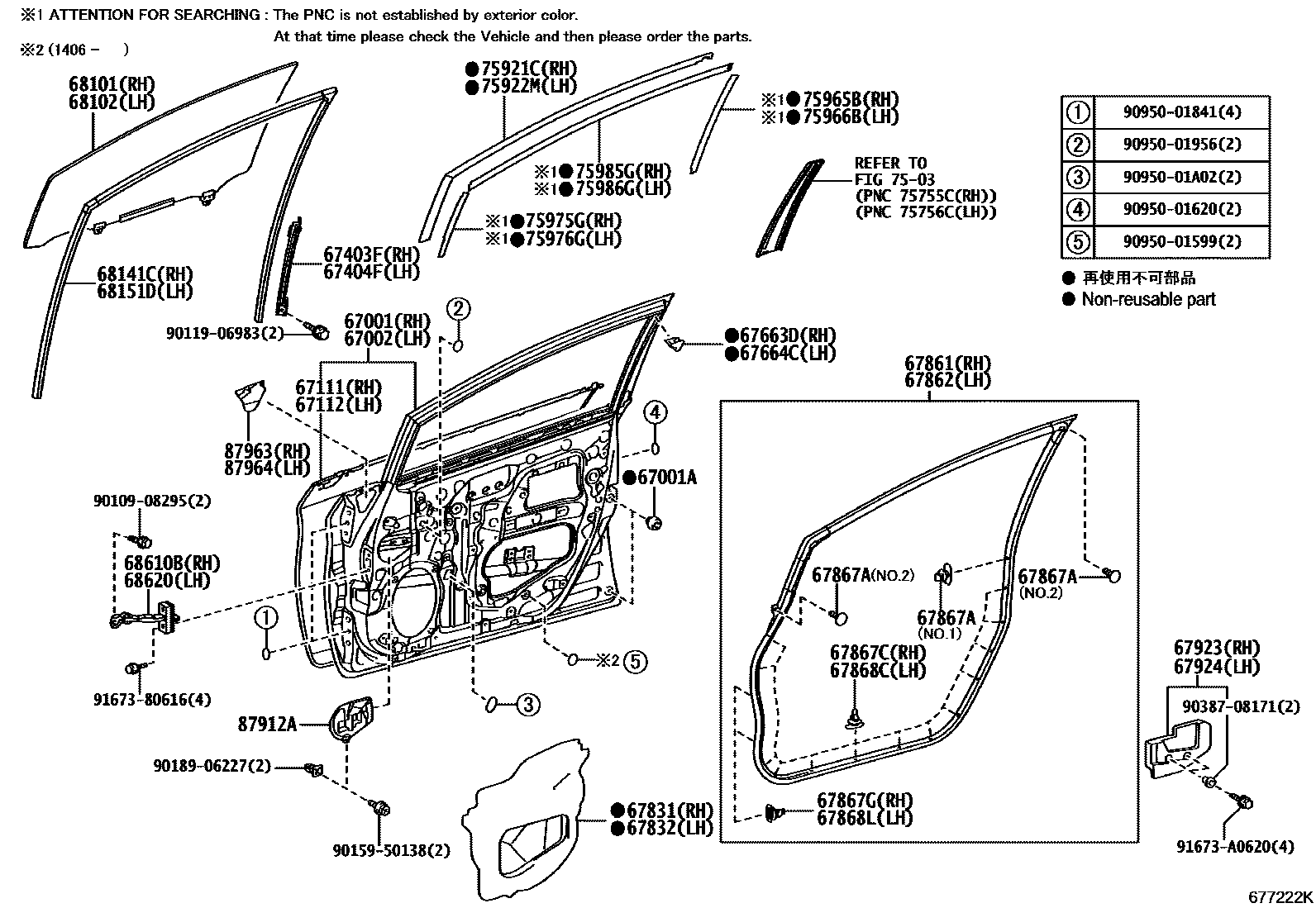

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-47070iZVW35201205-201407

main67001-47071iZVW35201408-201604

67001ACUSHION, FRONT DOOR PANEL

main90541-09124×4iZVW35201205

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-47070iZVW35201205-201407

main67002-47071iZVW35201408-201604

67111PANEL, FRONT DOOR, OUTER RH

main67111-47030iZVW35201205-201604

67112PANEL, FRONT DOOR, OUTER LH

main67112-47030iZVW35201205-201604

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-47030iZVW35201205

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-47030iZVW35201205

67663DGARNISH, DOOR FRAME, RH

main67663-48010iZVW35201205

67664CGARNISH, DOOR FRAME, LH

main67664-48010iZVW35201205

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-47070iZVW35201310-201405

main67831-47071iZVW35201406

main67831-47130iZVW35201205-201310

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-47060iZVW35201310-201405

main67832-47061iZVW35201406

main67832-47110iZVW35201205-201310

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-47030iZVW35201205

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-47030iZVW35201205

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main90467-04034×2iZVW35201205-201604

NO.1

main90467-05017-C0×4iZVW35201205-201604

BLACK,NO.2

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×13iZVW35201205

67867GRETAINER, DOOR WEATHERSTRIP, RH

main67867-52030×2iZVW35201205

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×13iZVW35201205

67868LRETAINER, DOOR WEATHERSTRIP, LH

main67867-52030×2iZVW35201205

67923CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-47040iZVW35201205

67924CUSHION, FRONT DOOR STIFFENER, NO.2

main67924-47030iZVW35201205

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-47072iZVW35201205

*UVCT,T=3.5,GREEN

main68101-47082iZVW35..RHD201205-201507

*UVCT,T=3.5,GREEN,UPPER PACKAGE(STEERING:LEATHER)

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-47072iZVW35201205

*UVCT,T=3.5,GREEN

main68102-47082iZVW35..RHD201205-201507

*UVCT,T=3.5,GREEN,UPPER PACKAGE(STEERING:LEATHER)

68141CRUN, FRONT DOOR GLASS, RH

main68141-47030iZVW35201205

68151DRUN, FRONT DOOR GLASS, LH

main68151-47030iZVW35201205

68610BCHECK ASSY, FRONT DOOR, RH

main68610-47021iZVW35201205

68620CHECK ASSY, FRONT DOOR, LH

main68610-47021iZVW35201205

7503

75921CTAPE, BLACK OUT, NO.1 RH

main75921-47020iZVW35201205

75922MTAPE, BLACK OUT, NO.1 LH

main75922-47020iZVW35201205

75965BSTRIPE, FRONT DOOR NO.4 RH

main75965-47010iZVW35201205

REFER TO ILLUST.

75966BSTRIPE, FRONT DOOR NO.4 LH

main75966-47010iZVW35201205

REFER TO ILLUST.

75975GSTRIPE, FRONT DOOR, NO.2 RH

main75975-47020iZVW35201205

REFER TO ILLUST.

75976GSTRIPE, FRONT DOOR, NO.2 LH

main75976-47020iZVW35201205

REFER TO ILLUST.

75985GSTRIPE, FRONT DOOR OUTSIDE, RH

main75985-47020iZVW35201205

REFER TO ILLUST.

75986GSTRIPE, FRONT DOOR OUTSIDE, LH

main75986-47020iZVW35201205

REFER TO ILLUST.

87912APROTECTOR, OUTER MIRROR

main87912-47010iZVW35201205

RH

main87912-47020iZVW35201205

LH

87963COVER, OUTER MIRROR INSTALL HOLE, RH

main87963-47010iZVW35201205

87964COVER, OUTER MIRROR INSTALL HOLE, LH

main87964-47010iZVW35201205

9010908295

main90109-08295

9011906983

main90119-06983

9015950138

main90159-50138

9018906227

main90189-06227

9038708171

main90387-08171

9095001599

main90950-01599

9095001620

main90950-01620

9095001841

main90950-01841

9095001956

main90950-01956

9095001A02

main90950-01A02

9167380616

main91673-80616

91673A0620

main91673-A0620

50 parts on this diagram · 2 diagrams in section
