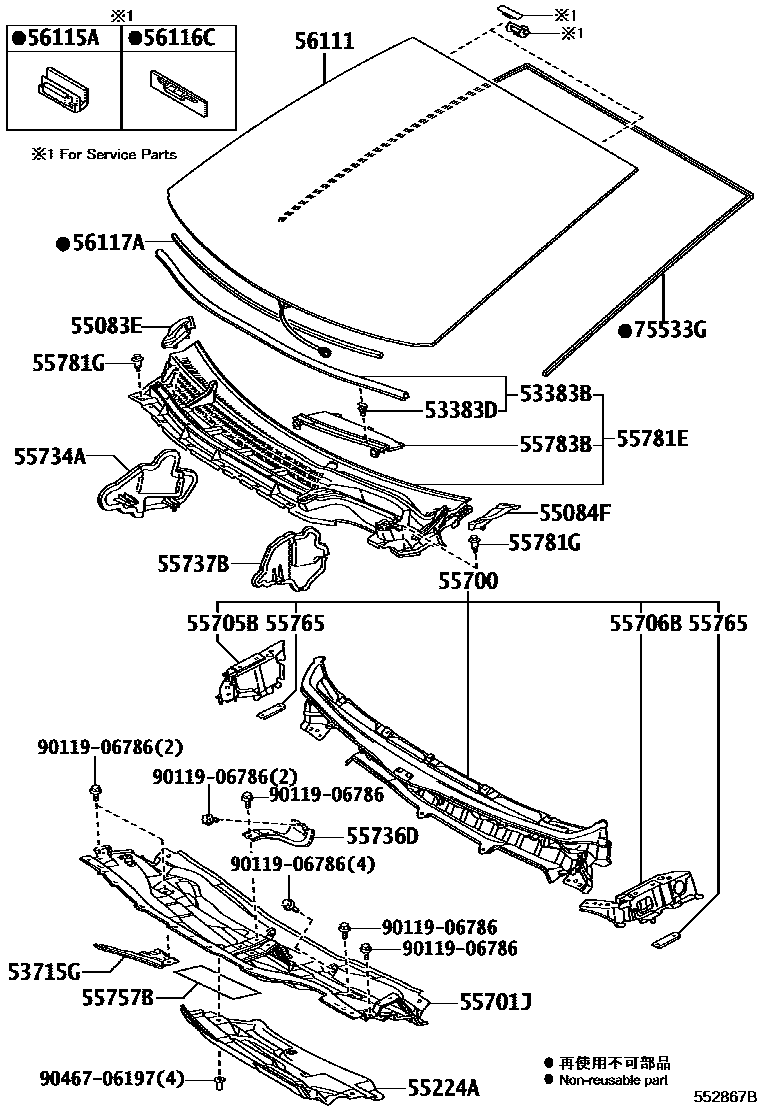

COWL PANEL & WINDSHIELD GLASS
53383DCLIP(FOR HOOD TO COWL TOP SEAL)
53715GEXTENSION, FRONT FENDER APRON, REAR RH
55083EVENTILATOR SUB-ASSY, COWL SIDE, RH
55084FVENTILATOR SUB-ASSY, COWL SIDE, LH
55224AINSULATOR, DASH PANEL, OUTER NO.2
55701JPANEL SUB-ASSY, COWL TOP, OUTER
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55736DREINFORCEMENT, COWL BODY MOUNTING, LH
55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55757BSHEET COWL TOP INSULATOR
55765BRACKET, HOOD DAMPER MOUNTING
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
COLD AREA SPEC
55781GCLIP, COWL TOP VENTILATOR LOUVER
55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1
56111GLASS, WINDSHIELD
*LAM,T=4.56,GREEN,UPPER PACKAGE(STEERING:LEATHER)&SMART ENTRY-WITH(FRONT & BACK DOOR)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AVN *BT USB JBL 8SPEAKER
sub56101-4F940
*LAM,T=4.56,GREEN,SMART ENTRY-WITH(FRONT & BACK DOOR)&AUDIO-*DA *BT USB JBL 8SPEAKER
sub56101-4F946
*LAM,T=4.56,GREEN,UPPER PACKAGE(STEERING:LEATHER)&SMART ENTRY-WITH(FRONT & BACK DOOR)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-*DA *BT USB JBL 8SPEAKER
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
75533GMOULDING, WINDSHIELD, OUTSIDE
9011906786
main90119-06786
9046706197
main90467-06197
25 parts on this diagram · 2 diagrams in section
