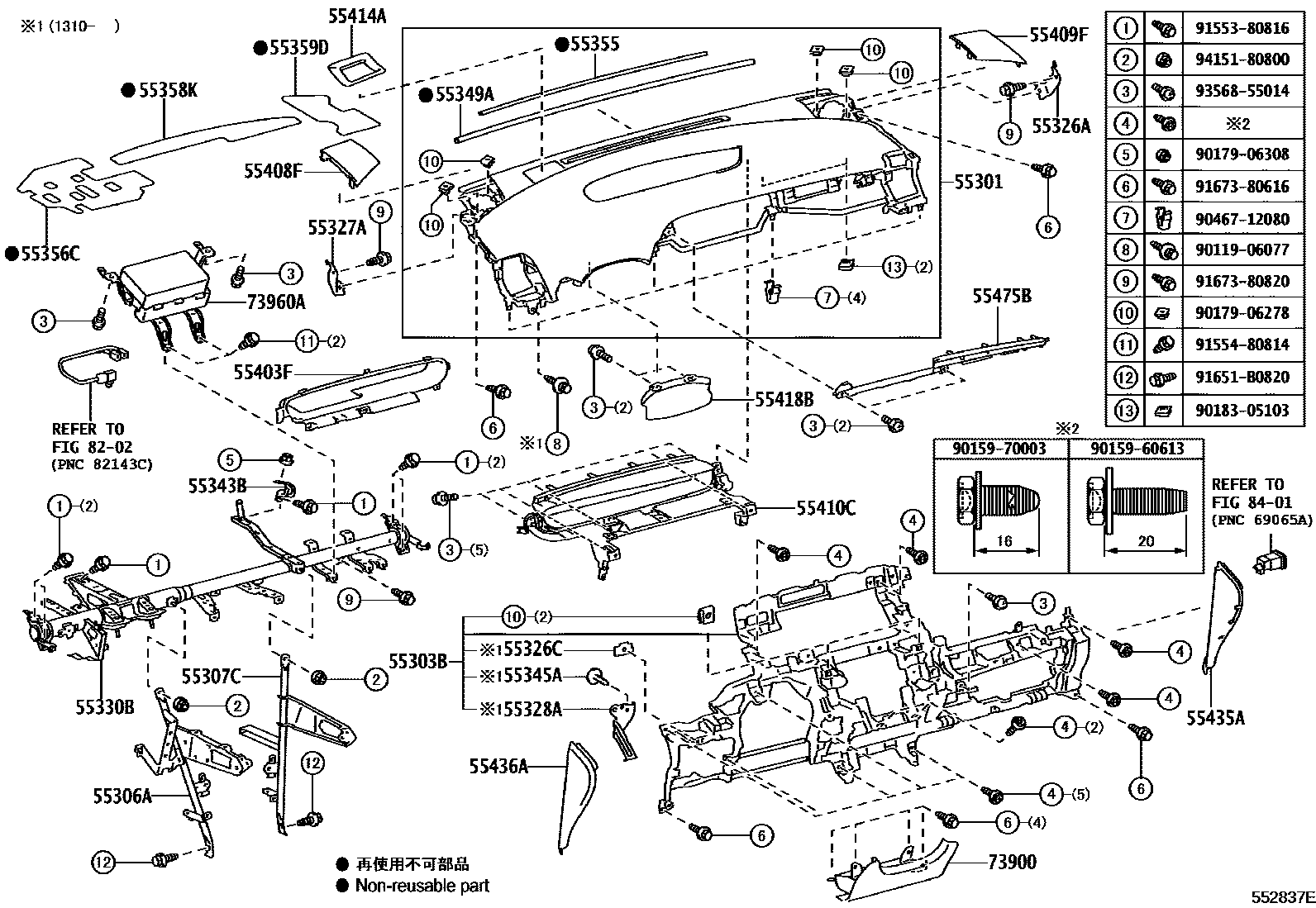

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1DRIVER SIDE 0004 1DRIVER SIDE 0005 1CENTER 0006 1CENTER 0007 1PASSENGER SIDE 0008 1PASSENGER SIDE

55301PANEL SUB-ASSY, INSTRUMENT

main55300-47210-C0iZVW35..RHD201205-201604

BLACK,TRIM2#,6#

main55300-47220-C0iZVW35..LHD201205-201310

BLACK,TRIM2#,6#

main55300-47300-C0iZVW35..LHD201310-201604

BLACK,TRIM2#,6#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-47040-C0iZVW35..RHD201205-201604

BLACK,TRIM2#

main55303-47040-G0iZVW35..RHD201205-201604

AQUA,TRIM6#

main55303-47050-C0iZVW35..LHD201205-201310

BLACK,TRIM2#

main55303-47050-G0iZVW35..LHD201205-201310

AQUA,TRIM6#

main55303-47070-C0iZVW35..LHD201310-201604

BLACK,TRIM2#

main55303-47070-G0iZVW35..LHD201310-201507

AQUA,TRIM6#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-47060iZVW35..RHD201205

main55306-47070iZVW35..LHD201205

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-47010iZVW35..RHD201205

main55307-47020iZVW35..LHD201205

55326ASTAY, INSTRUMENT PANEL, NO.1

main55326-47030iZVW35201205

55326CSTAY, INSTRUMENT PANEL, NO.2

main55326-47060iZVW35..LHD201310

55327ASTAY, INSTRUMENT PANEL, NO.2

main55327-47030iZVW35201205

55328ASTAY, INSTRUMENT PANEL, NO.3

main55327-47080iZVW35..LHD201310

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-47081iZVW35..RHD201205-201206

main55330-47082iZVW35..RHD201207

main55330-47091iZVW35..LHD201205-201206

main55330-47092iZVW35..LHD201207-201304

sub55330-47180

main55330-47093iZVW35..LHD201304-201310

sub55330-47180

main55330-47094iZVW35..LHD201310

55343BBRACE, INSTRUMENT PANEL TO COWL, CENTER

main55343-47020iZVW35..RHD201205

main55343-47030iZVW35..LHD201205

55345ACLIP, INSTRUMENT PANEL, NO.1

main90467-05161-C0iZVW35..LHD201310-201604

BLACK

55349ACUSHION, INSTRUMENT PANEL

main55349-47070iZVW35201205

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-47080iZVW35201205

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-47070iZVW35201205

55358KCUSHION, INSTRUMENT PANEL, NO.4

main55358-47050iZVW35201205

55359DCUSHION, INSTRUMENT PANEL, NO.5

main55359-47030iZVW35201205

55403FPANEL SUB-ASSY, INSTRUMENT PANEL FINISH

main55403-47030iZVW35..RHD201205-201604

main55403-47040iZVW35..LHD201205-201604

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55472-47020-C0iZVW35201205-201604

BLACK,TRIM2#,6#

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55473-47010-C0iZVW35201205-201604

BLACK,TRIM2#,6#

55410CPANEL ASSY, INSTRUMENT CLUSTER FINISH

main55410-47080iZVW35..RHD201205

main55410-47090iZVW35..LHD201205

55414APANEL, INSTRUMENT CLUSTER FINISH, END

main55414-47031-C0iZVW35..RHD201205-201604

BLACK,TRIM2#,6#

main55414-47041-C0iZVW35..LHD201205-201604

BLACK,TRIM2#,6#

55418BSPACER,METER HOOD

main55418-47010iZVW35..RHD201205

main55418-47020iZVW35..LHD201205

55435APANEL, INSTRUMENT PANEL FINISH, END RH

main55435-47010-C0iZVW35..RHD201205-201604

BLACK,TRIM2#

sub55435-47011

main55435-47010-G0iZVW35..RHD201205-201507

AQUA,TRIM6#

sub55435-47011

main55435-47020-C0iZVW35..LHD201205-201604

BLACK,TRIM2#

main55435-47020-G0iZVW35..LHD201205-201507

AQUA,TRIM6#

55436APANEL, INSTRUMENT PANEL FINISH, END LH

main55436-47010-C0iZVW35..LHD201205-201604

BLACK,TRIM2#

main55436-47010-G0iZVW35..LHD201205-201507

AQUA,TRIM6#

main55436-47020-C0iZVW35..RHD201205-201604

BLACK,TRIM2#

main55436-47020-G0iZVW35..RHD201205-201507

AQUA,TRIM6#

55475BGARNISH, INSTRUMENT CLUSTER FINISH PANEL, CENTER

main55475-47070iZVW35..RHD201205

main55475-47080iZVW35..LHD201205

73900AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1

main73900-47010-C0iZVW35..RHD201205-201604

BLACK,TRIM2#

main73900-47010-G0iZVW35..RHD201205-201507

AQUA,TRIM6#

main73900-47020-C0iZVW35..LHD201205-201604

BLACK,TRIM2#

main73900-47020-G0iZVW35..LHD201205-201507

AQUA,TRIM6#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-47050iZVW35..RHD201205

main73960-47070iZVW35..LHD201205

8202

8401

9011906077

main90119-06077

9015960613

main90159-60613

9015970003

main90159-70003

9017906278

main90179-06278

9017906308

main90179-06308

9018305103

main90183-05103

9046712080

main90467-12080

9155380816

main91553-80816

9155480814

main91554-80814

91651B0820

main91651-B0820

9167380616

main91673-80616

9167380820

main91673-80820

9356855014

main93568-55014

9415180800

main94151-80800

43 parts on this diagram · 8 diagrams in section
