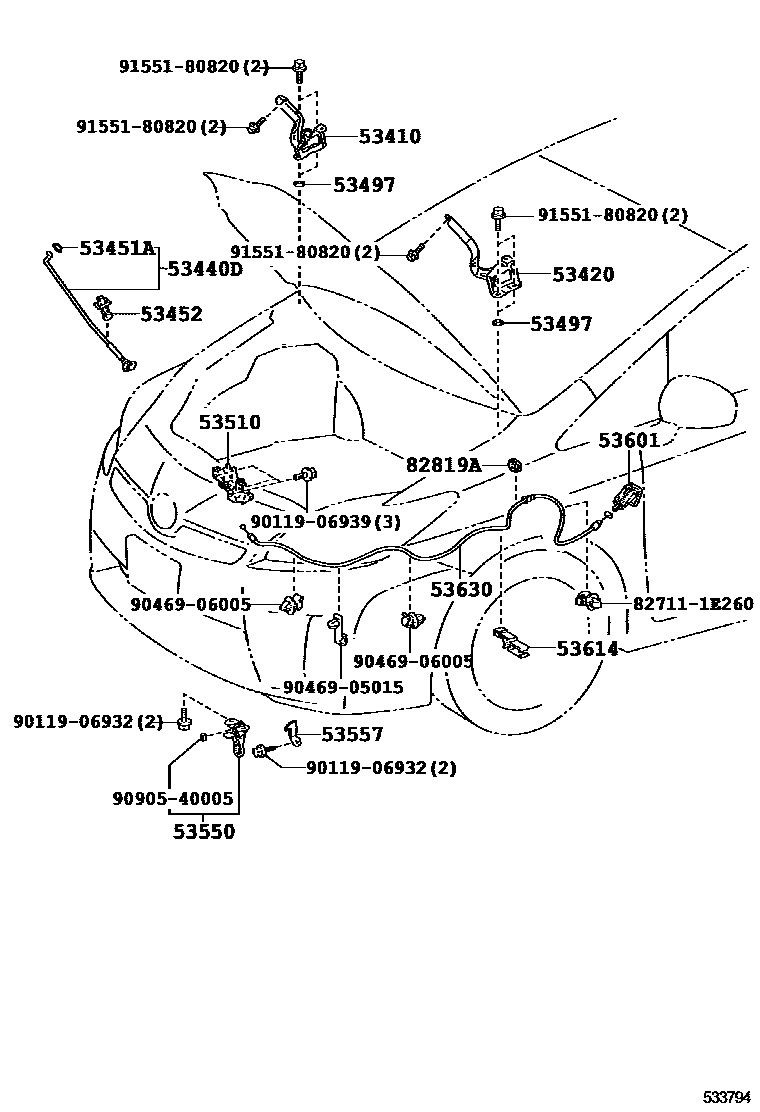

HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-47070iZVW35201205

53420HINGE ASSY, HOOD, LH

main53420-47070iZVW35201205

53440DSUPPORT ASSY, HOOD

main53440-47031iZVW35201205

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15025iZVW35201205

53452HOLDER, HOOD STAY

main53452-47010iZVW35201205

53497PAD, HOOD HINGE, NO.1

main53497-20070×4iZVW35201205

T=2.0

main53497-42010×4iZVW35201205

T=0.5

53510LOCK ASSY, HOOD

main53510-47101iZVW35201205-201206

main53510-47102iZVW35201207

53550HOOK ASSY, HOOD AUXILIARY CATCH

main53550-47011iZVW35201205

53557CATCH, HOOD AUXILIARY HOOK

main53557-47010iZVW35201205

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-C0iZVW35201205-201604

BLACK,TRIM2#

main53601-52010-G1iZVW35..LHD201205-201507

AQUA,TRIM6#

53614CLAMP, HOOD LOCK CONTROL CABLE

main53614-47030iZVW35201205

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-47040iZVW35..LHD201205

main53630-47050iZVW35..RHD201205

82819AGROMMET, WIRE

main82817-1A810×2iZVW35201205

827111E260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E260

9011906932

main90119-06932

9011906939

main90119-06939

9046905015

main90469-05015

9046906005

main90469-06005

9090540005

main90905-40005

9155180820

main91551-80820

20 parts on this diagram · 2 diagrams in section
