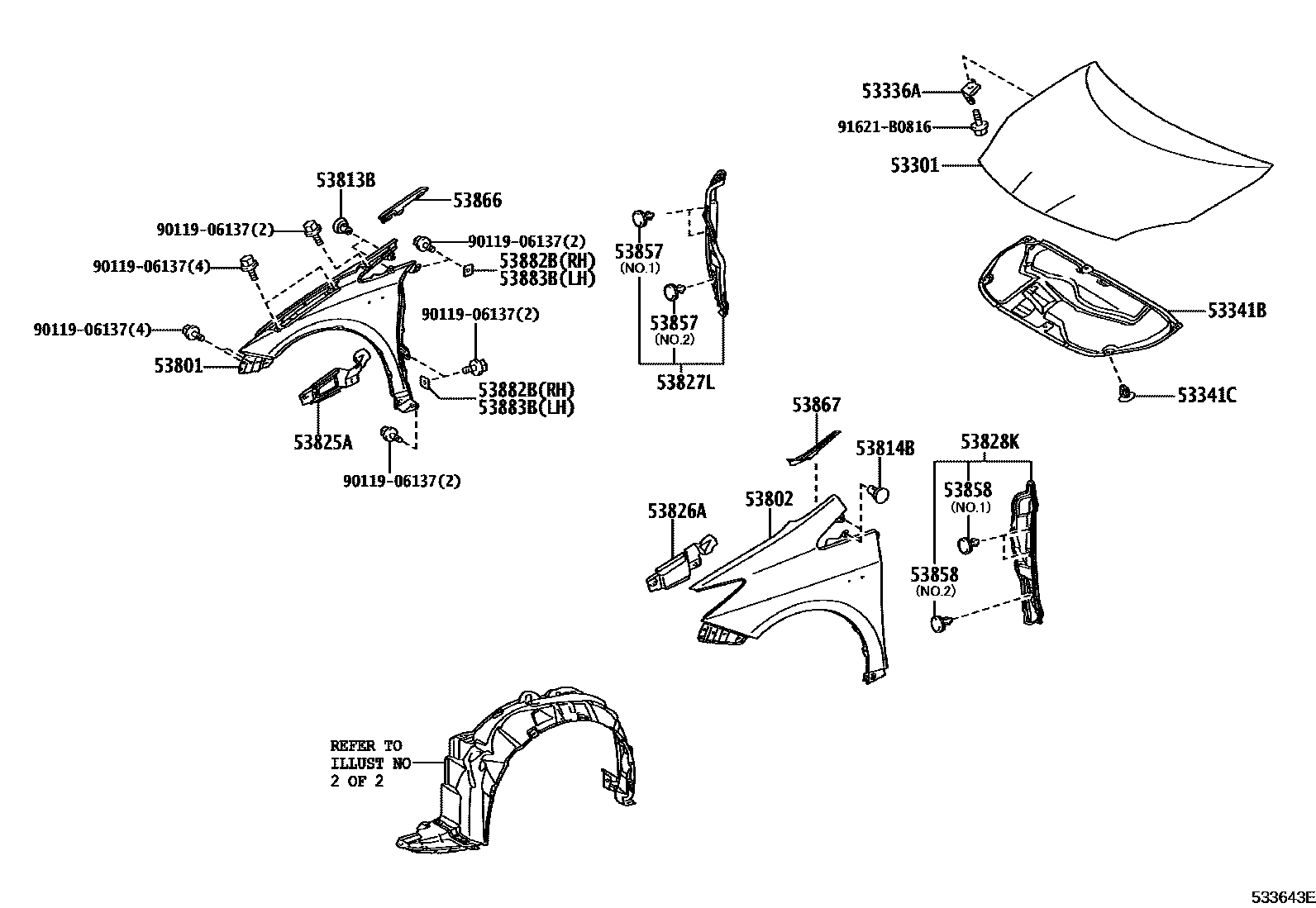

HOOD & FRONT FENDER

0001 1 0002 1

53301HOOD SUB-ASSY

main53301-47060iZVW35¥60,000201205-201604

53336ABRACKET, HOOD STAY

main53336-47010iZVW35¥270201205

53341BINSULATOR, HOOD

main53341-47020iZVW35¥10,800201205

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iZVW35¥120201205

53801FENDER SUB-ASSY, FRONT RH

main53801-47050iZVW35¥39,800201205-201604

53802FENDER SUB-ASSY, FRONT LH

main53802-47050iZVW35¥39,800201205-201604

53813BEXTENSION, FRONT FENDER, RH

main53813-47040iZVW35¥160201205

53814BEXTENSION, FRONT FENDER, LH

main53813-47040iZVW35¥160201205

53825APROTECTOR, FRONT FENDER, UPPER RH

main53825-47010iZVW35¥1,750201205

53826APROTECTOR, FRONT FENDER, UPPER LH

main53826-47010iZVW35¥1,750201205

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-47030iZVW35¥4,330201205

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-47030iZVW35¥4,330201205-201309

sub53828-47060¥4,330

main53828-47060iZVW35¥4,330201310

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011iZVW35¥60201205

NO.2

main53857-47020iZVW35¥70201205

NO.1

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011iZVW35¥60201205

NO.2

main53857-47020iZVW35¥70201205

NO.1

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-47020iZVW35¥590201205

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-47030iZVW35¥590201205

53882BSEAL, FRONT FENDER, RH

main53882-16030iZVW35¥60201205

53883BSEAL, FRONT FENDER, LH

main53882-16030iZVW35¥60201205

9011906137

main90119-06137¥70

91621B0816

main91621-B0816¥90

20 parts on this diagram · 2 diagrams in section
