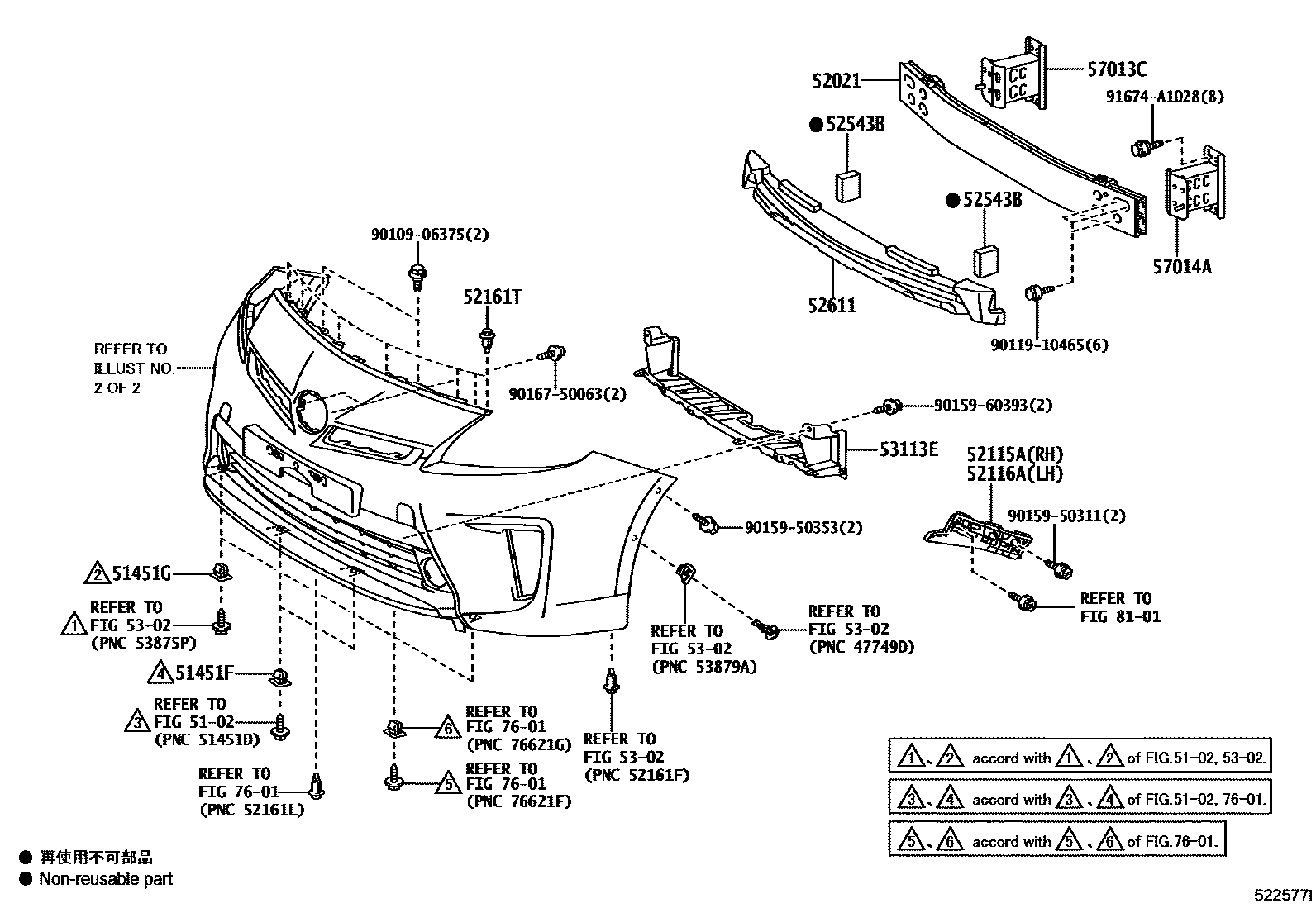

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

5102

51451FGROMMET, NO.1

main90189-06193iZVW35201205-201604

51451GGROMMET, NO.2

main90189-06193iZVW35201205-201604

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-47023iZVW35201205-201604

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-47040iZVW35201205-201402

sub52115-47041

main52115-47041iZVW35201403

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-47040iZVW35201205-201402

sub52116-47041

main52116-47041iZVW35201403

52161TPIECE, FRONT BUMPER

main52161-16010iZVW35201205

sub52161-0K040

52543BSEAL, FRONT BUMPER

main52543-47050iZVW35201205

52611ABSORBER, FRONT BUMPER ENERGY

main52611-47080iZVW35201205

5302

53113EGRILLE, RADIATOR, LOWER NO.2

main53113-47040iZVW35201205

57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-47030iZVW35201205

57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-47030iZVW35201205

7601

8101

9010906375

main90109-06375

9011910465

main90119-10465

9015950311

main90159-50311

9015950353

main90159-50353

9015960393

main90159-60393

9016750063

main90167-50063

91674A1028

main91674-A1028

22 parts on this diagram · 2 diagrams in section
