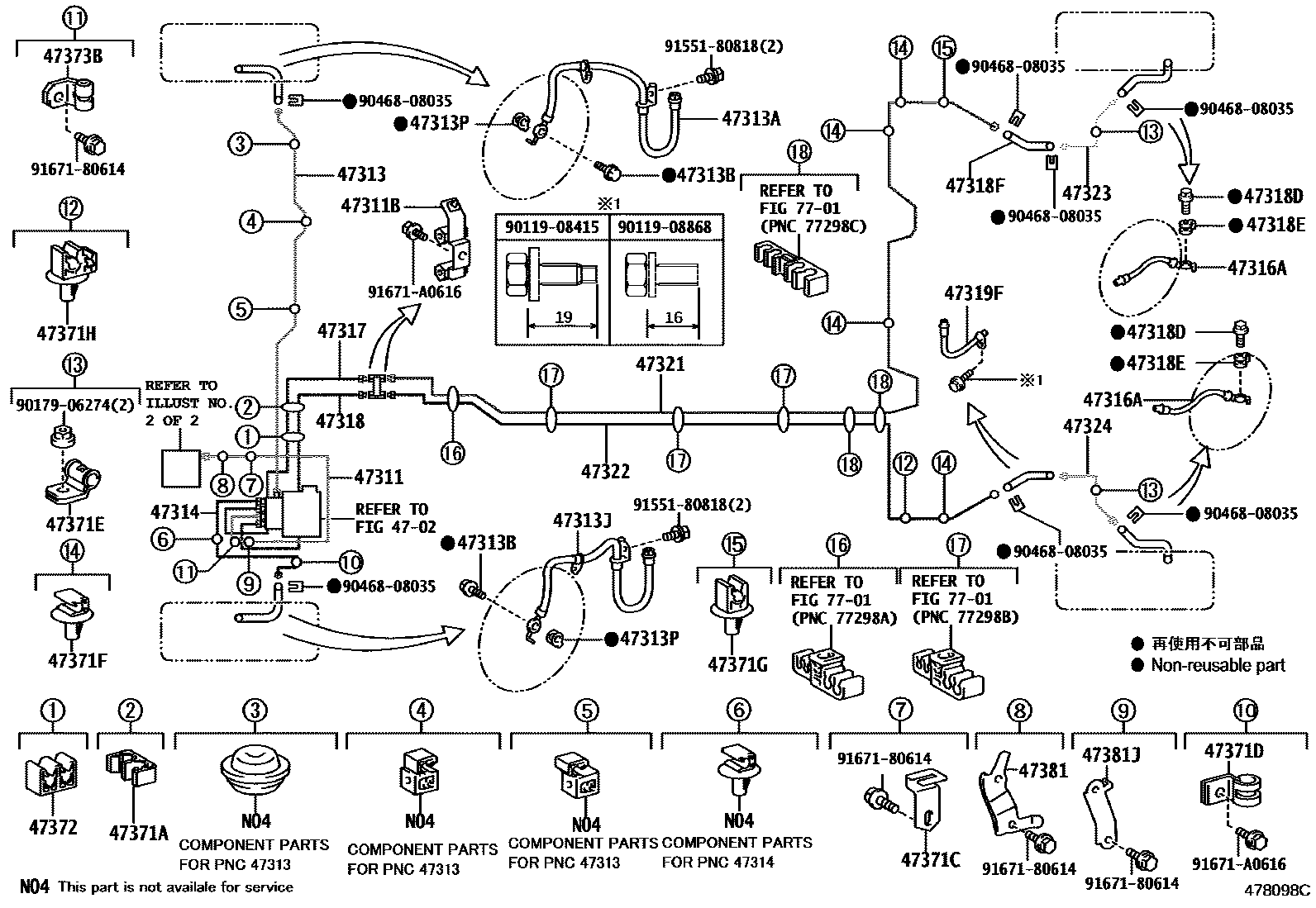

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-75010iZVW35..RHD201205

main47311-75020iZVW35..LHD201205

sub47311-76020

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10279iZVW35201205

47313TUBE, FRONT BRAKE, NO.3

main47313-75010iZVW35..RHD201205

main47313-75020iZVW35..LHD201205

sub47313-75021

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02F83iZVW35201205

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058iZVW35201205

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02F84iZVW35201205

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020iZVW35201205

47314TUBE, FRONT BRAKE, NO.4

main47314-75010iZVW35..RHD201205

main47314-75020iZVW35..LHD201205

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02F87iZVW35201205

47317TUBE, FRONT BRAKE, NO.7

main47317-75010iZVW35..RHD201205

main47317-75020iZVW35..LHD201205

47318TUBE, FRONT BRAKE, NO.8

main47318-75010iZVW35..RHD201205

main47318-75020iZVW35..LHD201205

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058iZVW35201205

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020iZVW35201205

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02F85iZVW35201205

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02F86iZVW35201205

47321TUBE, REAR BRAKE, NO.1

main47321-47040iZVW35201205-201604

47322TUBE, REAR BRAKE, NO.2

main47322-47040iZVW35201205-201604

47323TUBE, REAR BRAKE, NO.3

main47323-12230iZVW35201205

sub47323-47050

47324TUBE, REAR BRAKE, NO.4

main47324-12190iZVW35201205

sub47324-47050

47371ACLAMP, BRAKE TUBE, NO.1

main90464-00857iZVW35..RHD201205

main90464-00904iZVW35..LHD201205

47371CCLAMP, BRAKE TUBE, NO.7

main47371-47060iZVW35201205

47371DCLAMP, BRAKE TUBE, NO.8

main90461-10781iZVW35201205

47371ECLAMP, BRAKE TUBE, NO.9

main90461-10837iZVW35201205

47371FCLAMP, BRAKE TUBE, NO.10

main90949-01D17iZVW35201205-201604

47371GCLAMP, BRAKE TUBE, NO.11

main90949-01D29iZVW35201205-201604

47371HCLAMP, BRAKE TUBE, NO.12

main77286-75020iZVW35201205-201604

47372CLAMP, BRAKE TUBE, NO.2

main90949-01972iZVW35..LHD201205

47373BCLAMP, BRAKE TUBE, NO.3

main90461-10840iZVW35..LHD201205

main90464-00883iZVW35..RHD201205

47381BRACKET, BRAKE TUBE CLAMP NO.1

main47381-75010iZVW35201205

47381JBRACKET, BRAKE TUBE CLAMP, NO.2

main47381-75020iZVW35..LHD201205

7701

9011908415

main90119-08415

9011908868

main90119-08868

9017906274

main90179-06274

9046808035

main90468-08035

9155180818

main91551-80818

9167180614

main91671-80614

91671A0616

main91671-A0616

39 parts on this diagram · 4 diagrams in section
