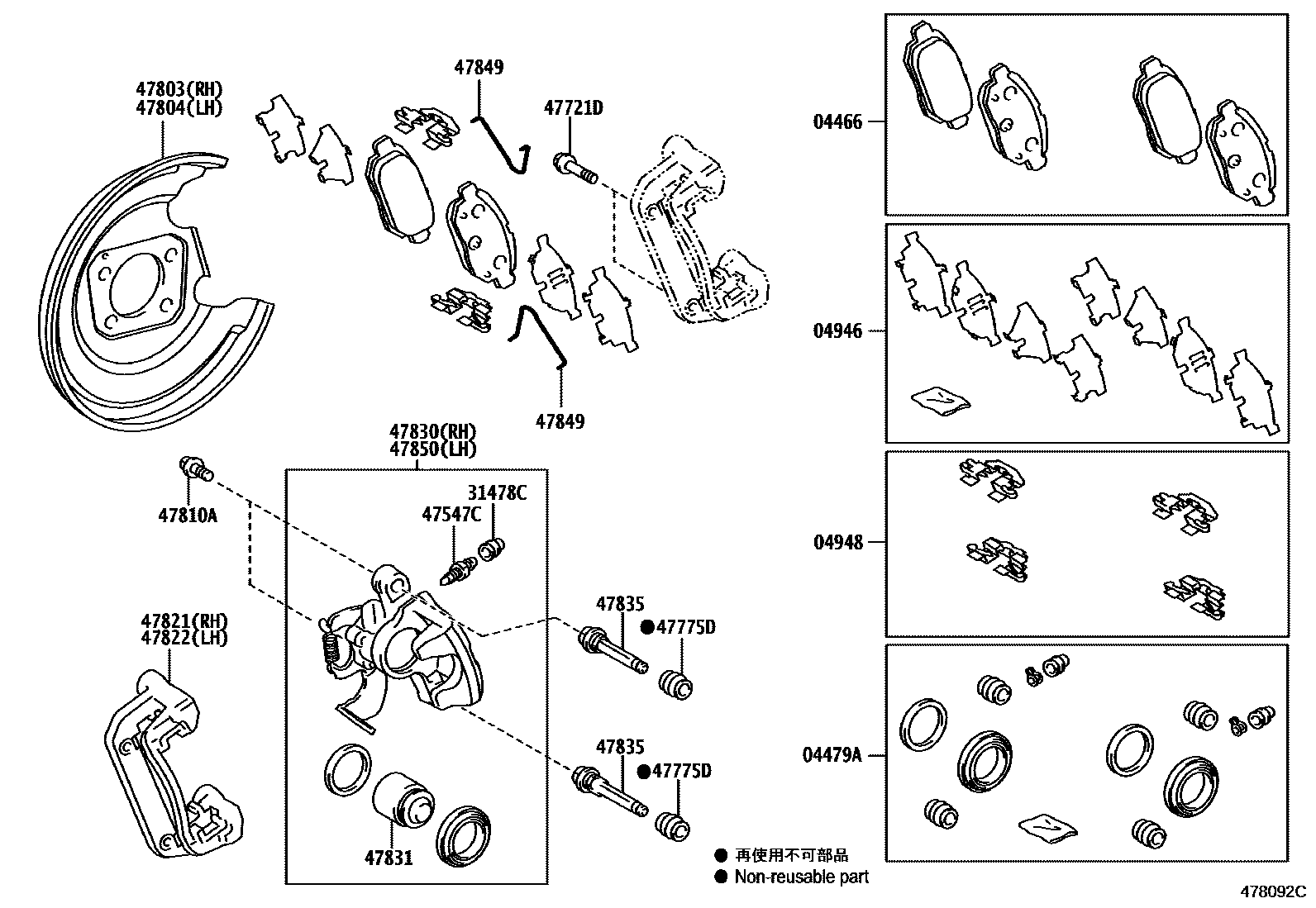

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-47061iZVW35201205-201206

MARK AK NS254

sub04466-47080

main04466-47100iZVW35201207-201604

MARK AK NS254

sub04466-47101

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-12230iZVW35201205

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-47070iZVW35201205

04948FITTING KIT, DISC BRAKE, REAR

main04948-12060iZVW35201205-201604

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-52010iZVW35201205

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47847-52050iZVW35201205

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-10404iZVW35201205

*10-1.25PX24-21.5

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-12150iZVW35201205

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47881-12071iZVW35201205

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47882-12071iZVW35201205

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90015-AA102iZVW35201205

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-12151iZVW35201205

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47821-12151iZVW35201205

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-12151iZVW35201205

47831PISTON, REAR DISC BRAKE

main47831-52050iZVW35201205

47835PIN, REAR DISC BRAKE PAD GUIDE

main47835-12150iZVW35201205

47849SPRING, ANTI-RATTLE, NO.2(FOR REAR DISC BRAKE)

main47843-47040iZVW35201205-201604

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-12151iZVW35201205

18 parts on this diagram · 1 diagram in section
