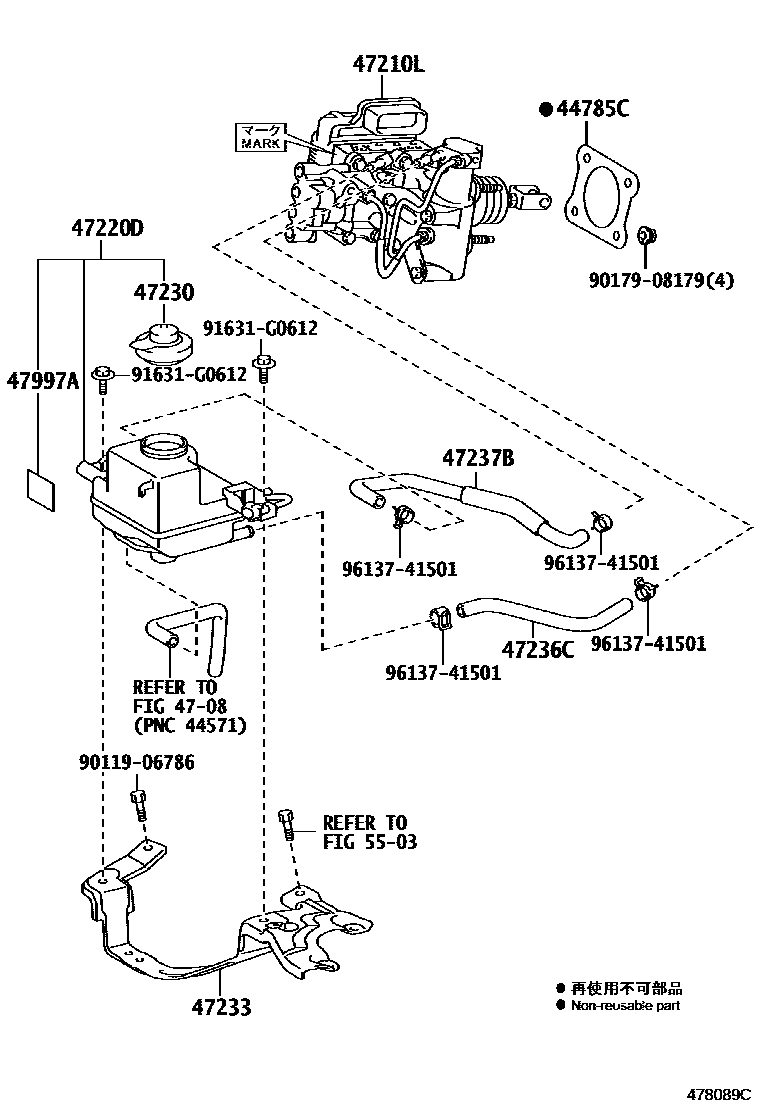

BRAKE MASTER CYLINDER

0001 1 0002 1

44785CGASKET, BRAKE BOOSTER

main44785-12040iZVW35201205

4708

47210LBRAKE BOOSTER ASSY, W/MASTER CYLINDER

main47050-47200iZVW35..RHD201205-201309

MARK=47210-47370

main47050-47210iZVW35..LHD201205-201309

MARK=47210-47380

main47050-47330iZVW35..RHD201309-201604

MARK=47210-47490

main47050-47340iZVW35..LHD201309-201604

MARK=47210-47500

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-47070iZVW35..RHD201205

main47220-47080iZVW35..LHD201205

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iZVW35201205

47233BRACKET, RESERVOIR

main47233-47040iZVW35..RHD201205

main47233-47050iZVW35..LHD201205

47236CHOSE, RESERVOIR TUBE

main47234-47050iZVW35..RHD201205

main47234-47060iZVW35..LHD201205

47237BHOSE, RESERVIOR TUBE

main47235-47050iZVW35..RHD201205

main47235-47060iZVW35..LHD201205

47997ALABEL, ACCUMULATOR CAUTION, NO.1

main47997-76010iZVW35201205

5503

9011906786

main90119-06786

9017908179

main90179-08179

91631G0612

main91631-G0612

9613741501

main96137-41501

14 parts on this diagram · 2 diagrams in section
