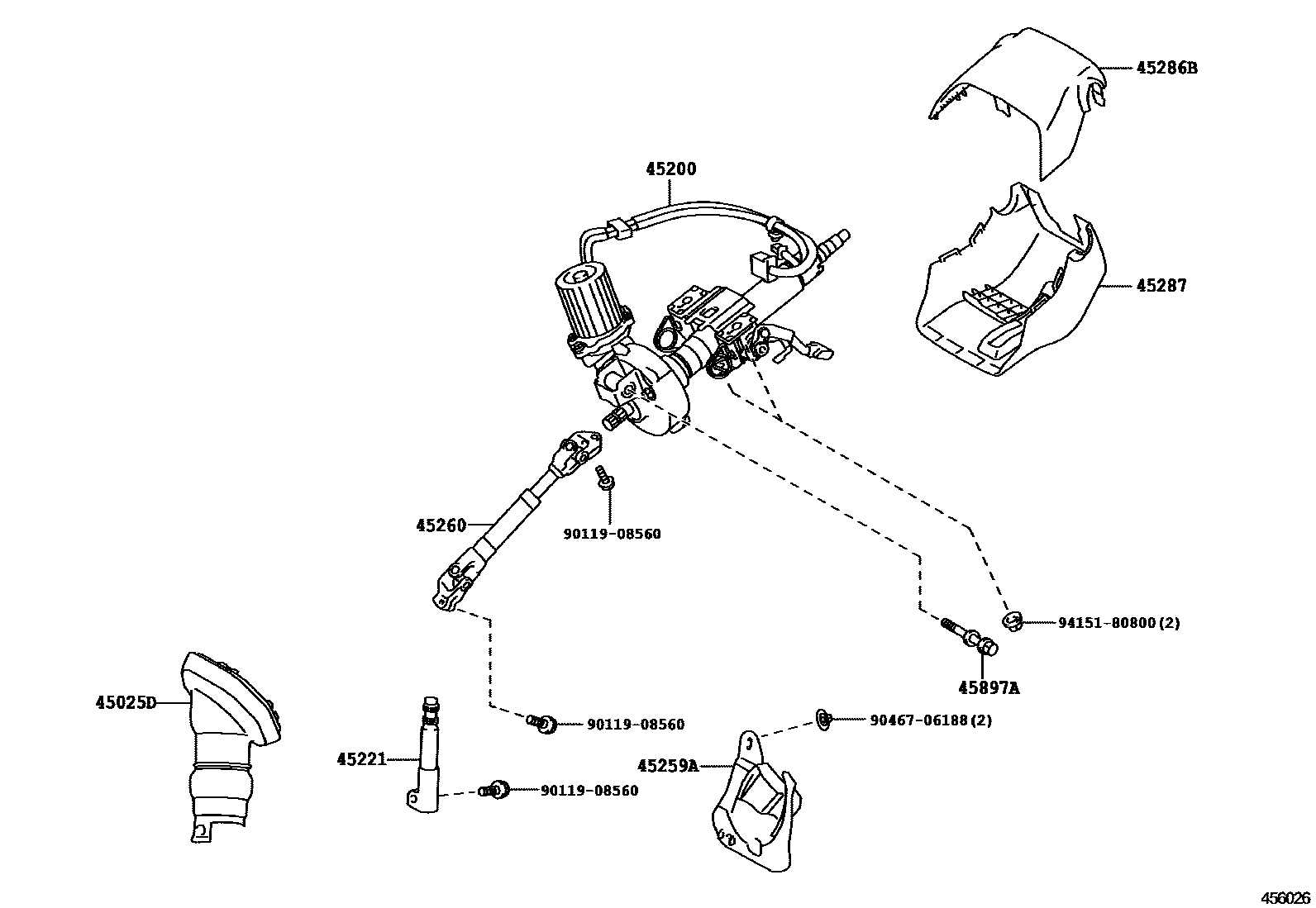

STEERING COLUMN & SHAFT

0001 1 0002 1

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-12280iZVW35..RHD201205

main45025-12300iZVW35..LHD201205

45200POST ASSY, STEERING

main45250-47230iZVW35..LHD201205

main45250-47250iZVW35..RHD201205

45221SHAFT, STEERING INTERMEDIATE

main45221-12330iZVW35201205

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-12050iZVW35..RHD201205

main45259-47030iZVW35..LHD201205

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-12710iZVW35201207

main45260-47060iZVW35201205-201206

sub45260-12710

45286BCOVER, STEERING COLUMN, UPR

main45286-47040-C0iZVW35201205-201604

BLACK,TRIM2#,6#

sub45286-47040

45287COVER, STEERING COLUMN, LWR

main45287-12590-C0iZVW35201205-201207

BLACK,TRIM2#,6#

sub45287-47090

main45287-47090-C0iZVW35201208-201604

BLACK,TRIM2#,6#

sub45287-47090

45897ABOLT, TILT STEERING PAWL SET

main45897-42010iZVW35201205-201211

main90119-10980iZVW35201212

9011908560

main90119-08560

9046706188

main90467-06188

9415180800

main94151-80800

11 parts on this diagram · 2 diagrams in section
