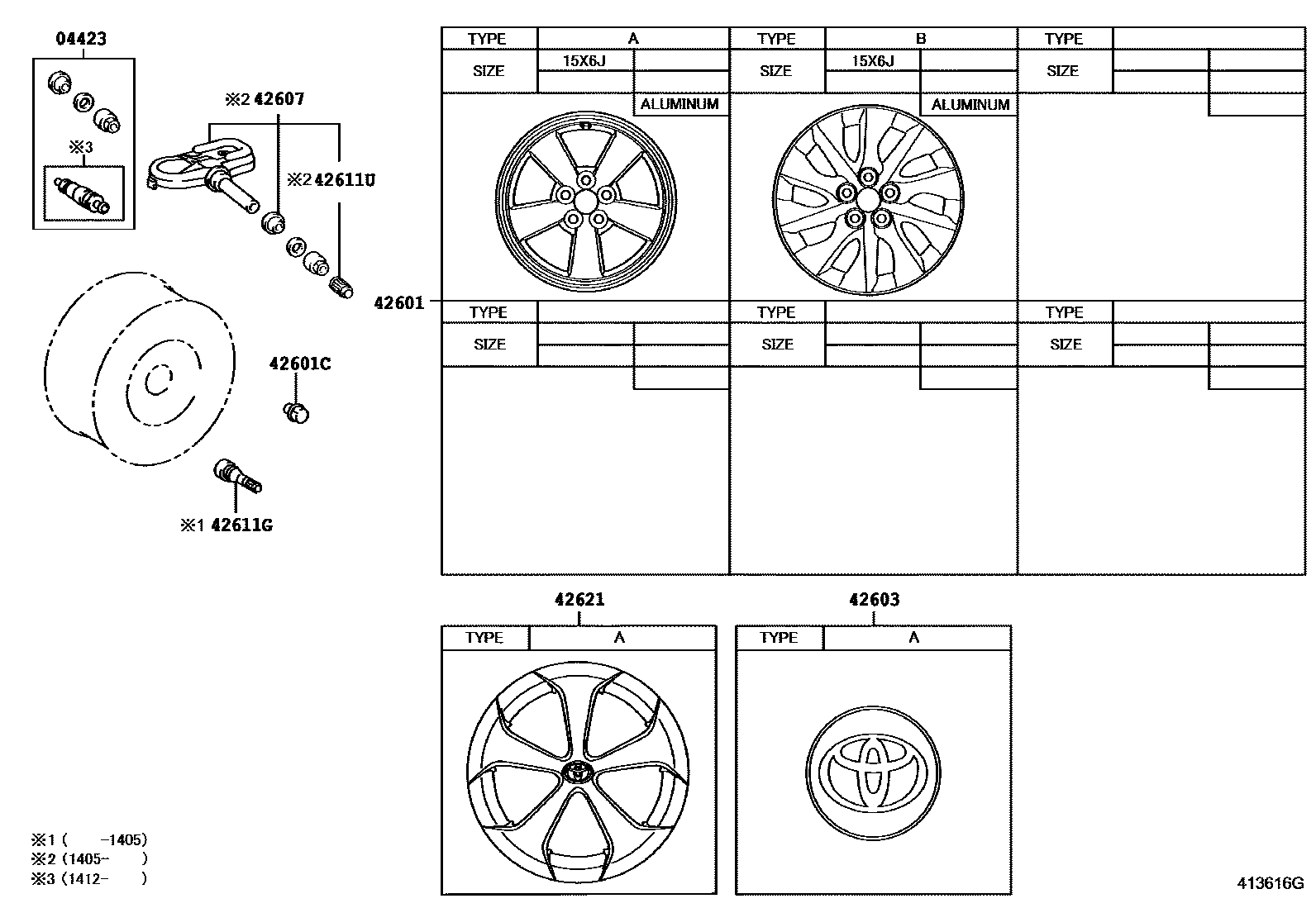

DISC WHEEL & WHEEL CAP

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-33030iZVW35201405-201411

sub04423-33060

main04423-33060iZVW35201412

42601WHEEL, DISC

main42611-47350iZVW35201205-201310

15X6J,#,TYPE A:REFER ILLUST.

main42611-47370iZVW35201310

15X6J,#,TYPE B:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01033iZVW35201205

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-52110iZVW35201310

*CHR OR *ALU,TYPE A:REFER ILLUST.

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-42021iZVW35201405

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iZVW35201205-201405

42611UCAP, TIRE VALVE

main90942-05039iZVW35201405

42621CAP, WHEEL

main42602-47060iZVW35201205-201310

TYPE A:REFER ILLUST.

8 parts on this diagram · 1 diagram in section
