REAR AXLE SHAFT & HUB

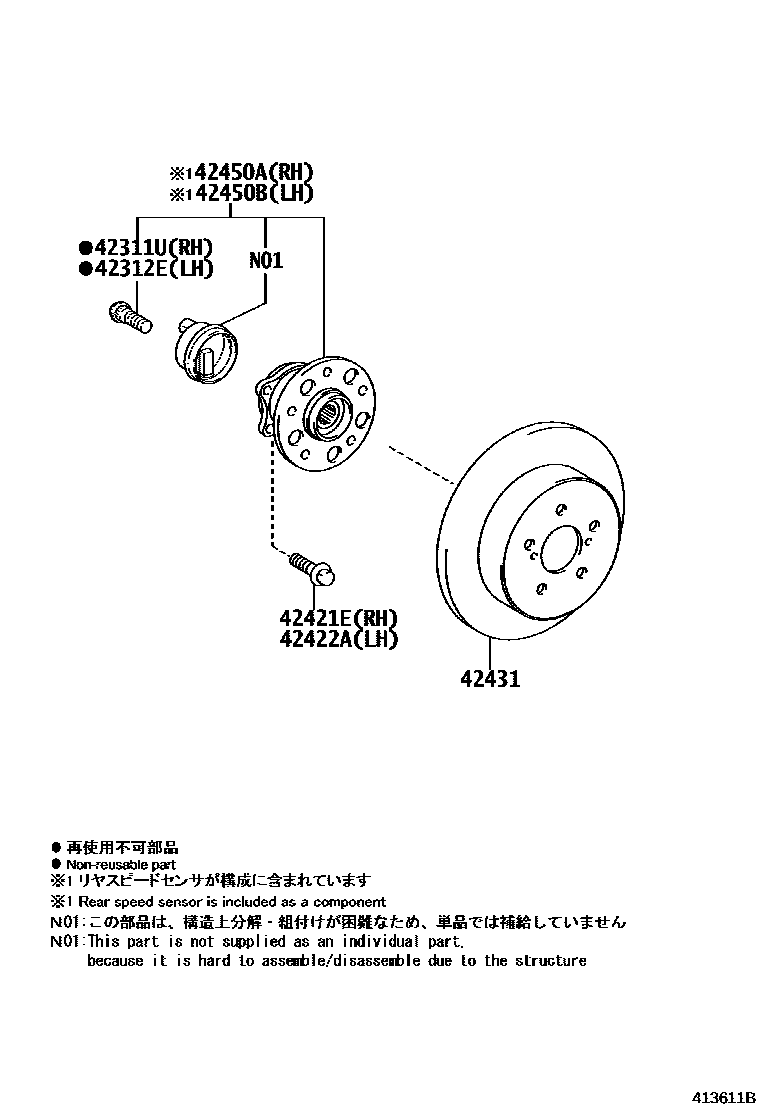

Parts diagram

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049i¥240201205

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049i¥240201205

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12350i¥160201205

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12350i¥160201205

42431DISC, REAR

main42431-12310i¥5,700201205

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-47040i¥21,000201205

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-47040i¥21,000201205

7 parts on this diagram · 1 diagram in section
