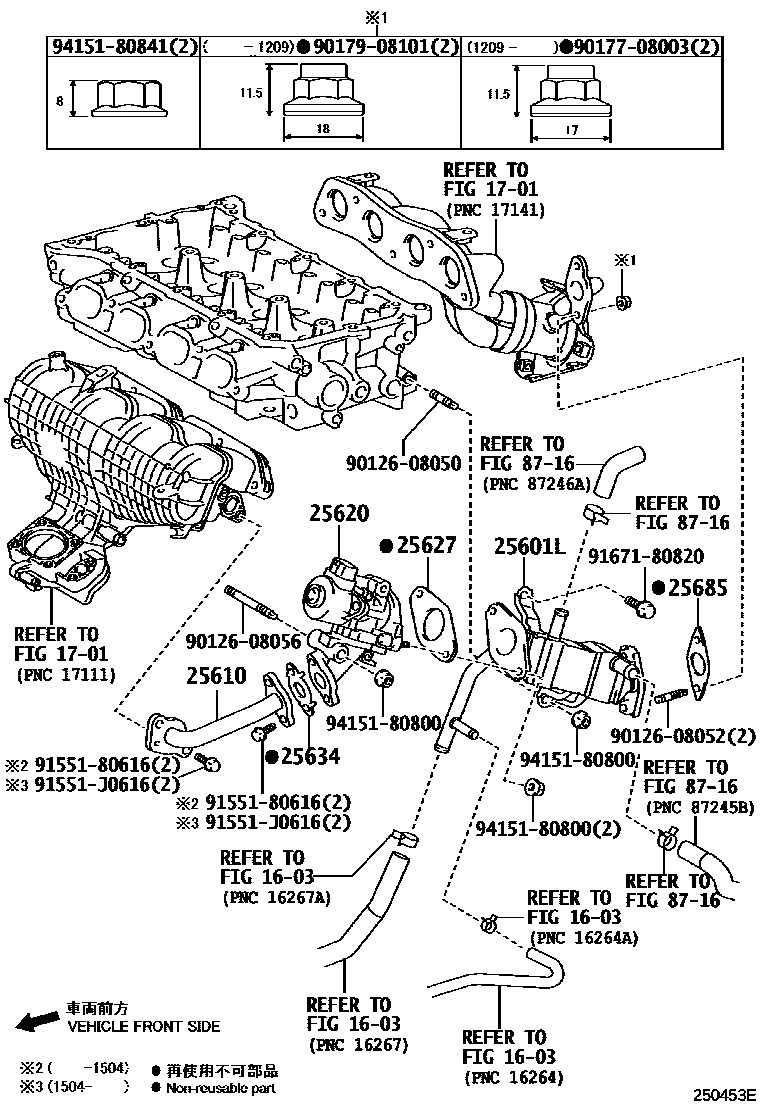

EXHAUST GAS RECIRCULATION SYSTEM

1603

1701

25601LPIPE SUB-ASSY, EGR W/COOLER

main25601-37010i2ZRFXE..ZVW35201205

25610PIPE ASSY, EGR

main25610-37011i2ZRFXE..ZVW35201205-201501

sub25610-37012

sub25634-37030

main25610-37012i2ZRFXE..ZVW35201502

25620VALVE ASSY, EGR

main25620-37110i2ZRFXE..ZVW35201205-201206

sub25620-37120

main25620-37120i2ZRFXE..ZVW35201206

25627GASKET, EGR VALVE

main25627-37010i2ZRFXE..ZVW35201205

25634GASKET, EGR PIPE

main25634-37010i2ZRFXE..ZVW35201205-201501

sub25634-37030

main25634-37030i2ZRFXE..ZVW35201502

25685GASKET, EGR COOLER, NO.1

main25685-37010i2ZRFXE..ZVW35201205

8716

9012608050

main90126-08050

9012608052

main90126-08052

9012608056

main90126-08056

9017708003

main90177-08003

9017908101

main90179-08101

9155180616

main91551-80616

91551J0616

main91551-J0616

9167180820

main91671-80820

9415180800

main94151-80800

9415180841

main94151-80841

19 parts on this diagram · 1 diagram in section
