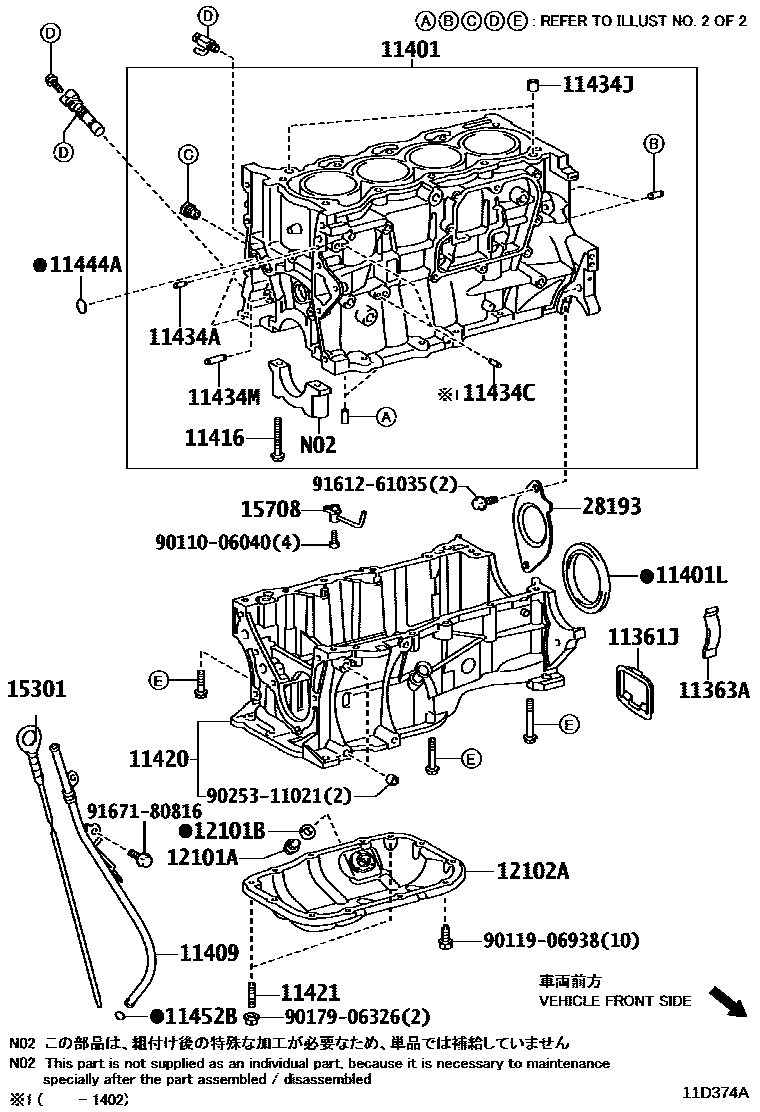

CYLINDER BLOCK

0001 1 0002 1

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-21011i2ZRFXE..ZVW35201205

11363ACOVER, FLYWHEEL HOUSING SIDE

main11363-21010i2ZRFXE..ZVW35201205

11401BLOCK SUB-ASSY, CYLINDER

main11410-09455i2ZRFXE..ZVW35201205

(L)

sub11410-09456

main11410-39057i2ZRFXE..ZVW35201205

(J)

sub11410-39245

11401LSEAL, ENGINE REAR OIL

main90311-76002i2ZRFXE..ZVW35201205-201307

main90311-76004i2ZRFXE..ZVW35201307-201407

main90311-78008i2ZRFXE..ZVW35201408

11409GUIDE SUB-ASSY, OIL LEVEL GAGE

main11409-37010i2ZRFXE..ZVW35201205

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02163×10i2ZRFXE..ZVW35201205

11420CRANKCASE ASSY, STIFFENING

main11420-37010i2ZRFXE..ZVW35201205

11421BOLT, STUD(FOR OIL PAN)

main90126-06028×2i2ZRFXE..ZVW35201205

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-04097×2i2ZRFXE..ZVW35201205

L=12,OD=4.0

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-04097i2ZRFXE..ZVW35201205-201402

L=12,OD=4.0

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-13001×2i2ZRFXE..ZVW35201205

11434MPIN, STRAIGHT(FOR CHAIN TENSIONER)

main90250-10030i2ZRFXE..ZVW35201205

11444ARING, O

main96723-24020i2ZRFXE..ZVW35201205

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main96721-19010i2ZRFXE..ZVW35201205

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i2ZRFXE..ZVW35201205

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i2ZRFXE..ZVW35201205

12102APAN SUB-ASSY, OIL, NO.2

main12102-37010i2ZRFXE..ZVW35201205

15301GAGE SUB-ASSY, OIL LEVEL

main15301-37010i2ZRFXE..ZVW35201205-201208

main15301-37030i2ZRFXE..ZVW35201208-201308

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-37011×4i2ZRFXE..ZVW35201205-201211

main15708-37012×4i2ZRFXE..ZVW35201211

28193INSULATOR, STARTER HOLE

main28193-21010i2ZRFXE..ZVW35201205

9011006040

main90110-06040

9011906938

main90119-06938

9017906326

main90179-06326

9025311021

main90253-11021

9161261035

main91612-61035

9167180816

main91671-80816

26 parts on this diagram · 2 diagrams in section
