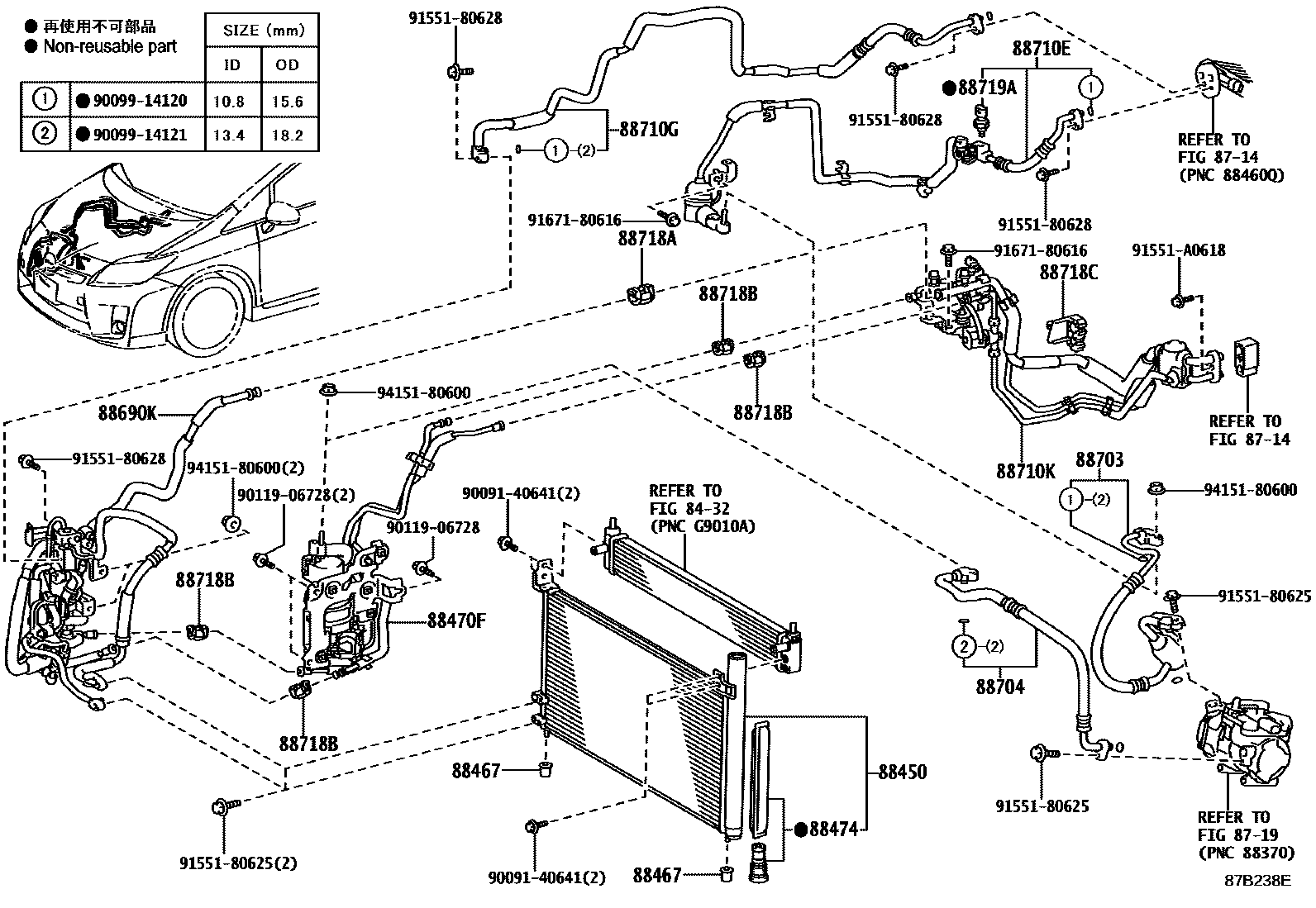

HEATING & AIR CONDITIONING - COOLER PIPING

8432

8714

8719

88450CONDENSER ASSY, W/RECEIVER

main88460-47150iZVW35¥63,400200912

88467CUSHION, COOLER CONDENSER, NO.1

main16716-28010iZVW35¥220200912

88470FACCUMULATOR & ACCESSORY ASSY

main88470-47010iZVW35¥232,000200912

88474DRYER, COOLER

main88474-47030iZVW35200912-201010

88690KVALVE ASSY, MAGNET

main88690-47010iZVW35¥146,000200912

88703HOSE SUB-ASSY, DISCHARGE

main88703-47060iZVW35¥14,300200912

88704HOSE SUB-ASSY, SUCTION

main88704-47070iZVW35¥13,900200912

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88720-47010iZVW35¥86,400200912

88710GTUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2

main88703-47070iZVW35¥18,600200912

88710KTUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.3

main88710-47090iZVW35¥103,000200912

88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)

main88718-2D140iZVW35200912

88718BCLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)

main88718-2D150iZVW35200912

88718CCLAMP, NO.3(FOR COOLER REFRIGERANT PIPE)

main88718-47080iZVW35200912

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iZVW35¥0200912

9009140641

main90091-40641

9009914120

main90099-14120¥0

9009914121

main90099-14121

9011906728

main90119-06728¥120

9155180625

main91551-80625¥60

9155180628

main91551-80628¥60

91551A0618

main91551-A0618¥60

9167180616

main91671-80616¥60

9415180600

main94151-80600¥60

26 parts on this diagram · 1 diagram in section
