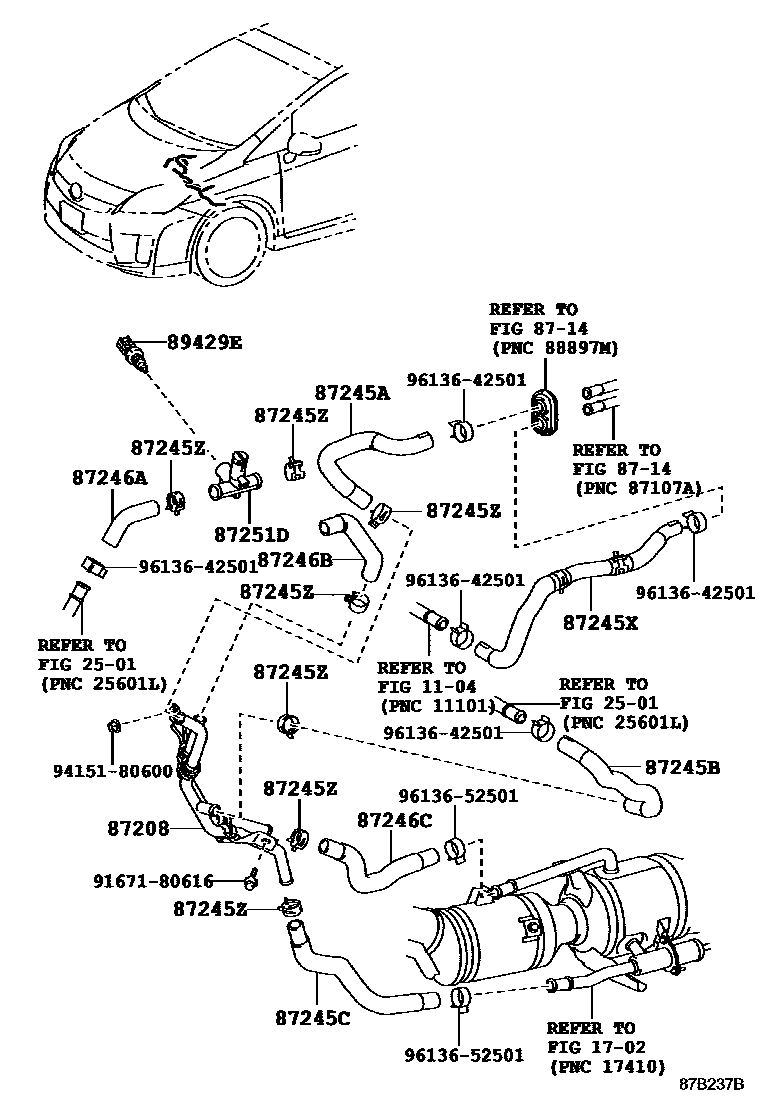

HEATING & AIR CONDITIONING - WATER PIPING

1104

1702

2501

8714

87208PIPE SUB-ASSY, HEATER WATER

main87208-47010iZVW35200912

87245AHOSE, HEATER WATER, INLET A

main87245-47320iZVW35¥1,090200912

87245BHOSE, HEATER WATER, INLET B

main87245-47310iZVW35¥1,490200912

87245CHOSE, HEATER WATER ,INLET C

main87245-47300iZVW35¥1,430200912-201010

87245XHOSE, HEATER WATER

main87245-47360iZVW35¥2,470200912

87245ZCLIP OR CLAMP (FOR HEATER WATER HOSE)

main90467-22011iZVW35¥240200912

87246AHOSE, HEATER WATER, OUTLET A

main87245-47270iZVW35¥440200912

87246BHOSE, HEATER WATER, OUTLET B

main87245-47280iZVW35¥760200912

87246CHOSE, HEATER WATER, OUTLET C

main87245-47290iZVW35¥1,140200912-201010

87251DJOINT, WATER, NO.1

main87251-47010iZVW35200912

sub87251-47020¥0

89429ESENSOR, WATER TEMPERATURE

main89429-47010iZVW35¥2,410200912-201010

9167180616

main91671-80616¥60

9415180600

main94151-80600¥60

9613642501

main96136-42501¥200

9613652501

main96136-52501¥200

19 parts on this diagram · 1 diagram in section
