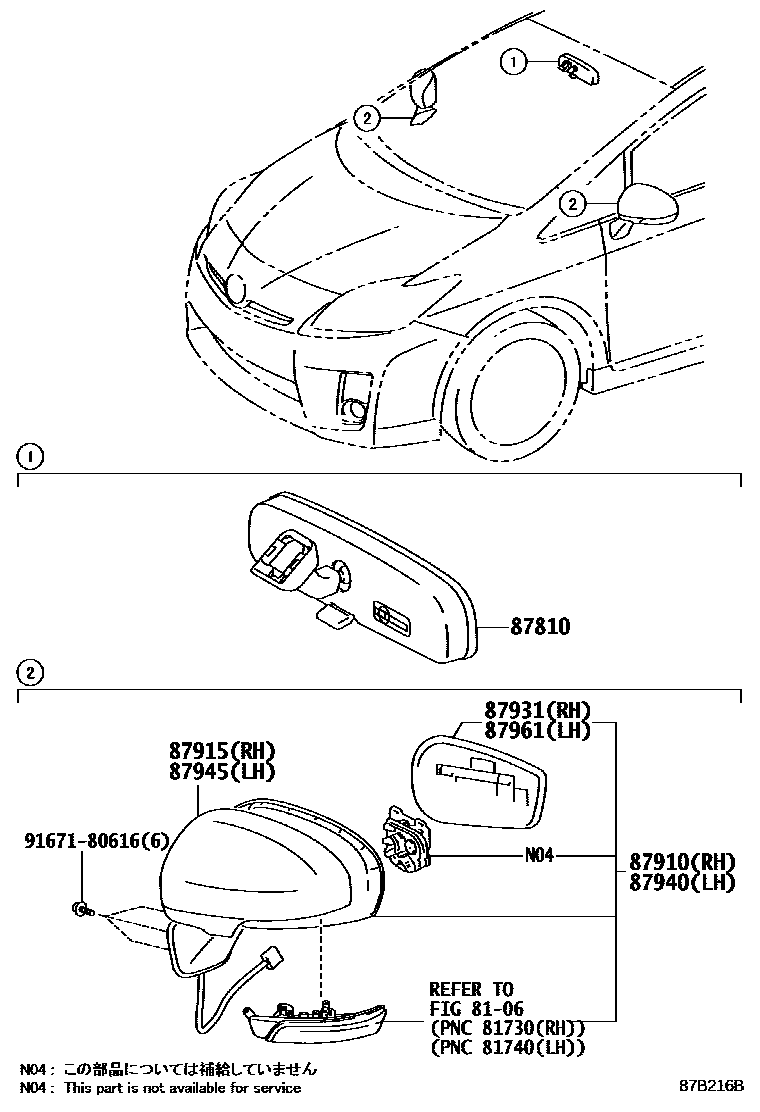

MIRROR

8106

87810MIRROR ASSY, INNER REAR VIEW

main87810-60191iZVW35200912-201010

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-47190iZVW35..LHD200912

NO PAINT REQ.

sub87910-47191

main87910-47200iZVW35..RHD200912

NO PAINT REQ.

87915COVER, OUTER MIRROR, RH

main87915-74010-B4iZVW35200912

SILVER ME.,8U8

87931OUTER MIRROR, RH

main87931-47190iZVW35..LHD200912

main87931-47200iZVW35..RHD200912

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-47190iZVW35..LHD200912

NO PAINT REQ.

sub87940-47191

main87940-47200iZVW35..RHD200912

NO PAINT REQ.

87945COVER, OUTER MIRROR, LH

main87945-74010-B4iZVW35200912

SILVER ME.,8U8

87961MIRROR OUTER, LH

main87961-47190iZVW35..LHD200912

main87961-47200iZVW35..RHD200912

9167180616

main91671-80616

9 parts on this diagram · 1 diagram in section
