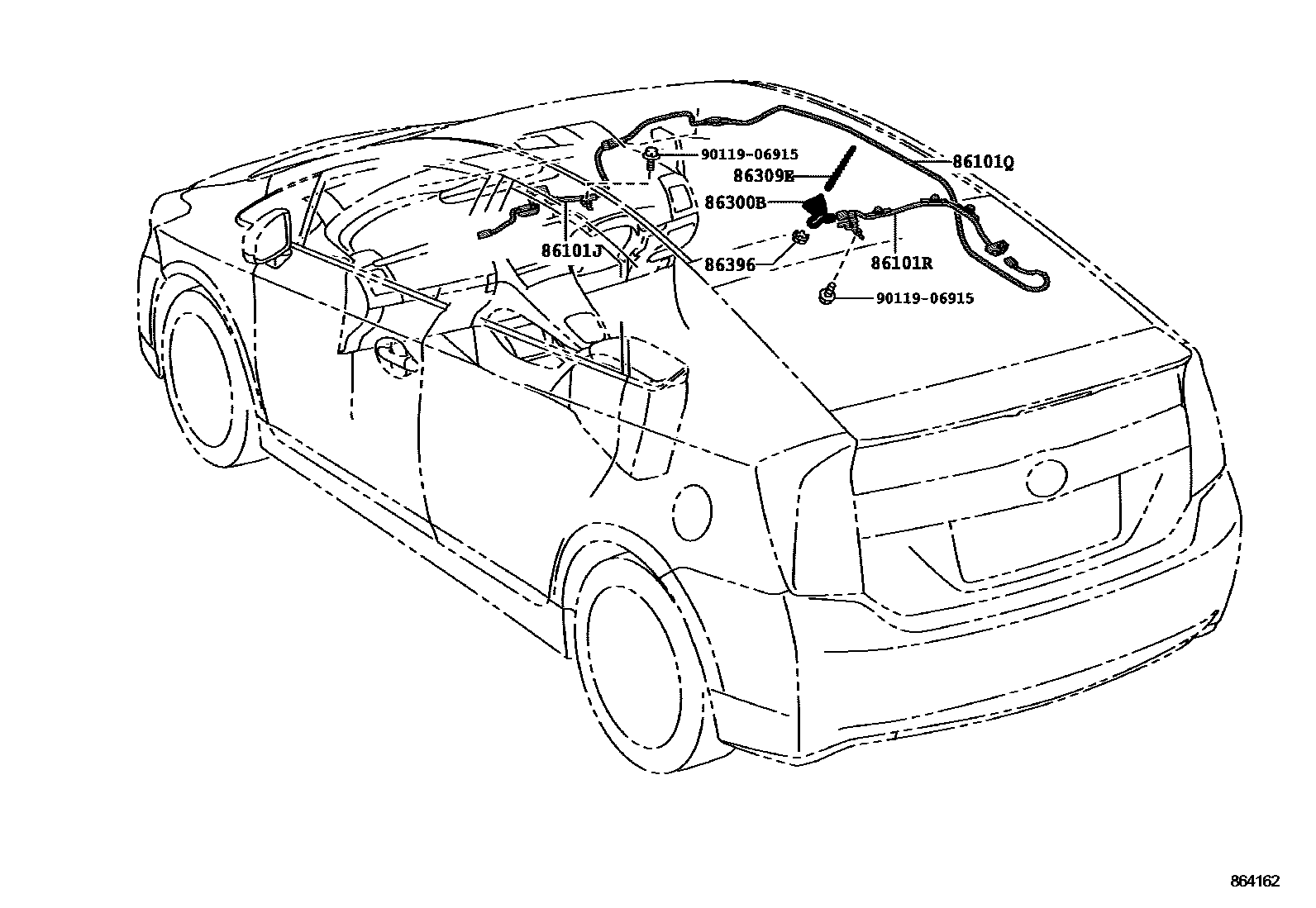

ANTENNA

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-47370iZVW35..RHD200912

main86101-47380iZVW35..LHD200912

86101QCORD SUB-ASSY, ANTENNA, NO.4

main86101-47200iZVW35200912

86101RCORD SUB-ASSY, ANTENNA, NO.5

main86101-47320iZVW35200912

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-47060iZVW35200912-201012

sub86300-47061

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-47020iZVW35200912

86396NUT, ANTENNA

main86396-47010iZVW35200912

9011906915

main90119-06915

7 parts on this diagram · 1 diagram in section
