NAVIGATION & FRONT MONITOR DISPLAY

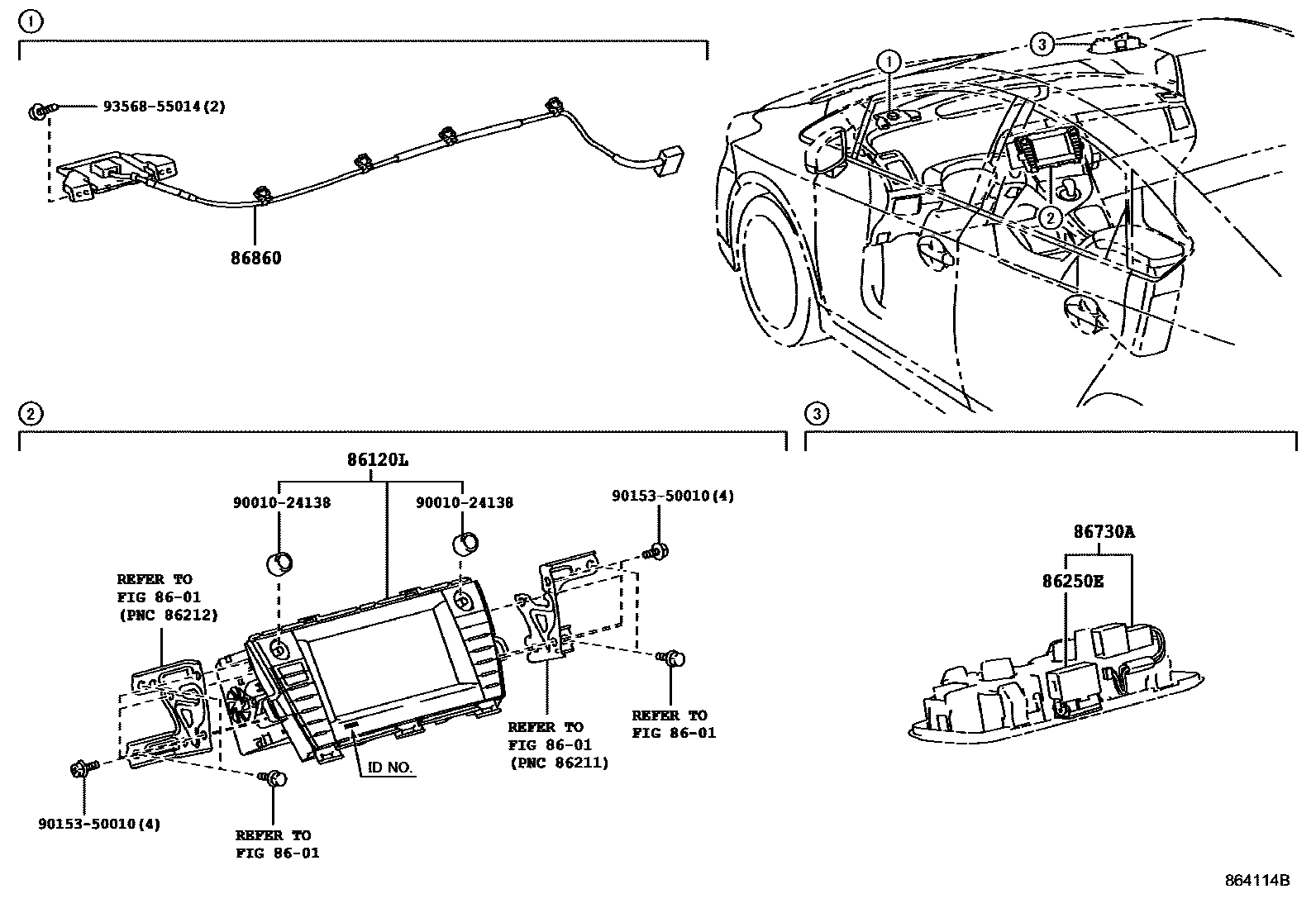

Parts diagram

8601

86120LRECEIVER ASSY, NAVIGATION

86250EMICROPHONE ASSY, AMPLIFIER

86730AMICROPHONE ASSY, TELEPHONE

86860ANTENNA ASSY, NAVIGATION

main86860-47070

9001024138

main90010-24138

9015350010

main90153-50010

9356855014

main93568-55014

8 parts on this diagram · 1 diagram in section
