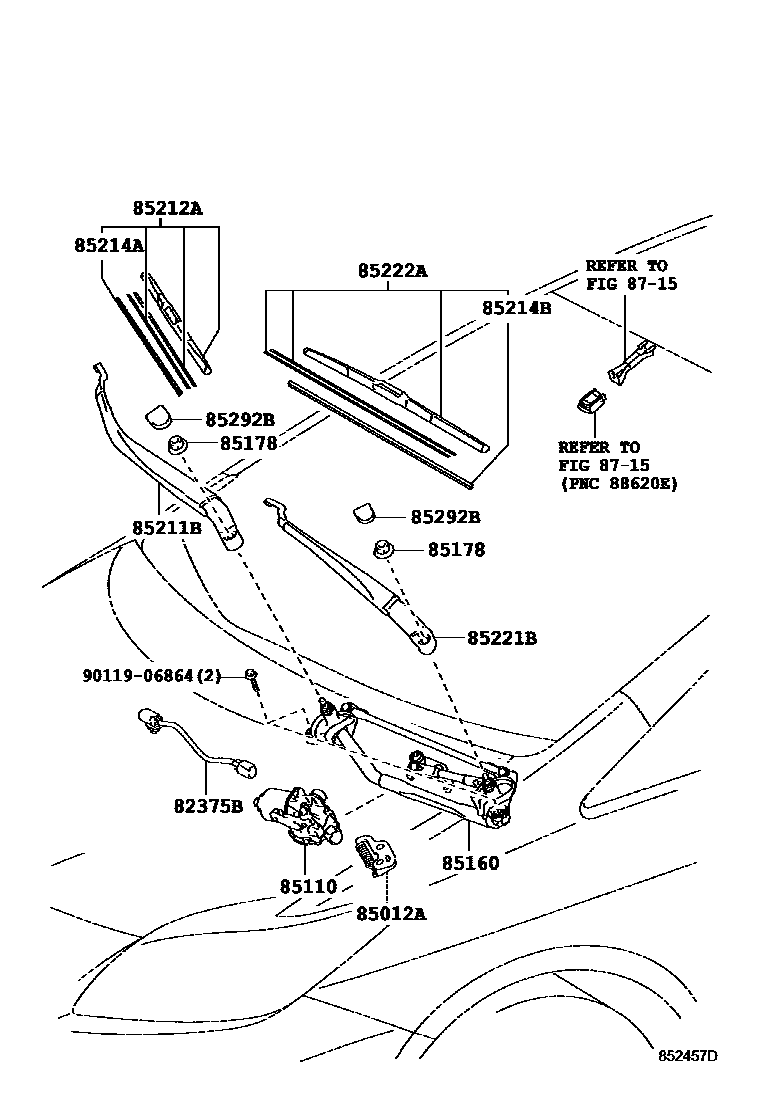

WINDSHIELD WIPER

0001 1 0002 1

82375BWIRE, WIPER MOTOR

main82375-47010iZVW35..RHD200912-201010

main82375-47020iZVW35..LHD200912-201010

85012ACRANK SUB-ASSY, FRONT WIPER

main85012-50010iZVW35..RHD200912

main85012-58030iZVW35..LHD200912

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-47110iZVW35..RHD200912-201003

main85110-47120iZVW35..LHD200912-201003

main85110-47200iZVW35..RHD201003

main85110-47210iZVW35..LHD201003

85160LINK ASSY, WINDSHIELD WIPER

main85150-47120iZVW35..RHD200912

main85150-47130iZVW35..LHD200912

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-10223×2iZVW35200912

85211BARM, FRONT WIPER, RH

main85211-47110iZVW35..LHD200912-201010

main85211-47120iZVW35..RHD200912-201010

sub85211-47121

85212ABLADE, FR WIPER, RH

main85212-47030iZVW35..LHD200912-201010

main85212-68050iZVW35..RHD200912-201010

85214ARUBBER, WIPER, RH

main85214-28090iZVW35..LHD200912

main85214-68020iZVW35..RHD200912

sub85214-52110

85214BRUBBER, WIPER, LH

main85214-28090iZVW35..RHD200912

main85214-68020iZVW35..LHD200912

sub85214-52110

85221BARM, FRONT WIPER, LH

main85221-47080iZVW35..RHD200912-201010

main85221-47100iZVW35..LHD200912-201010

sub85221-47101

85222ABLADE, FR WIPER, LH

main85222-28180iZVW35..RHD200912-201010

main85222-75010iZVW35..LHD200912-201010

sub85222-75011

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010×2iZVW35200912

8715

9011906864

main90119-06864

14 parts on this diagram · 2 diagrams in section
