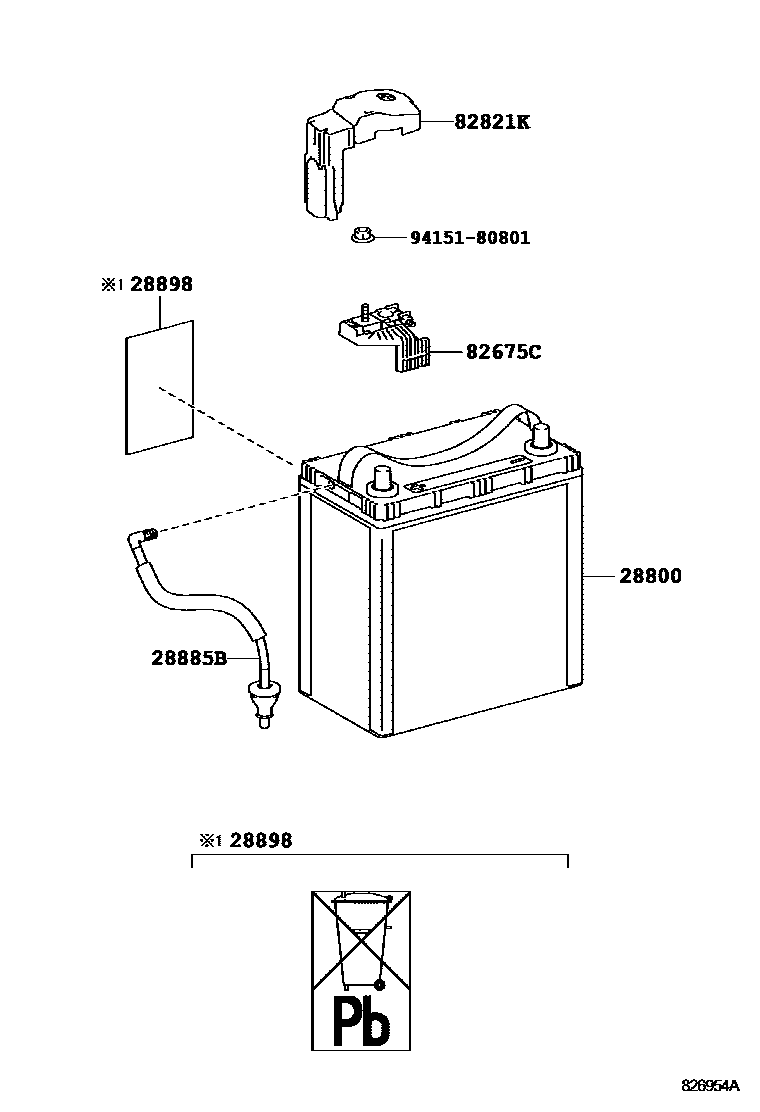

BATTERY & BATTERY CABLE

0001 112V BATTERY 0002 1HV BATTERY 0003 1HV BATTERY 0004 1HV BATTERY

28800BATTERY

main28800-21180i2ZRFXE..ZVW35200912-201010

S34B20R

sub28800-21181

28885BHOSE, BATTERY

main28885-37010i2ZRFXE..ZVW35200912

28898PLATE, BATTERY

main28898-16020i2ZRFXE..ZVW35200912

82675CTERMINAL, JUNCTION

main82675-47160iZVW35200912

82821KCOVER, CONNECTOR

main82821-47110iZVW35200912

9415180801

main94151-80801

6 parts on this diagram · 4 diagrams in section
