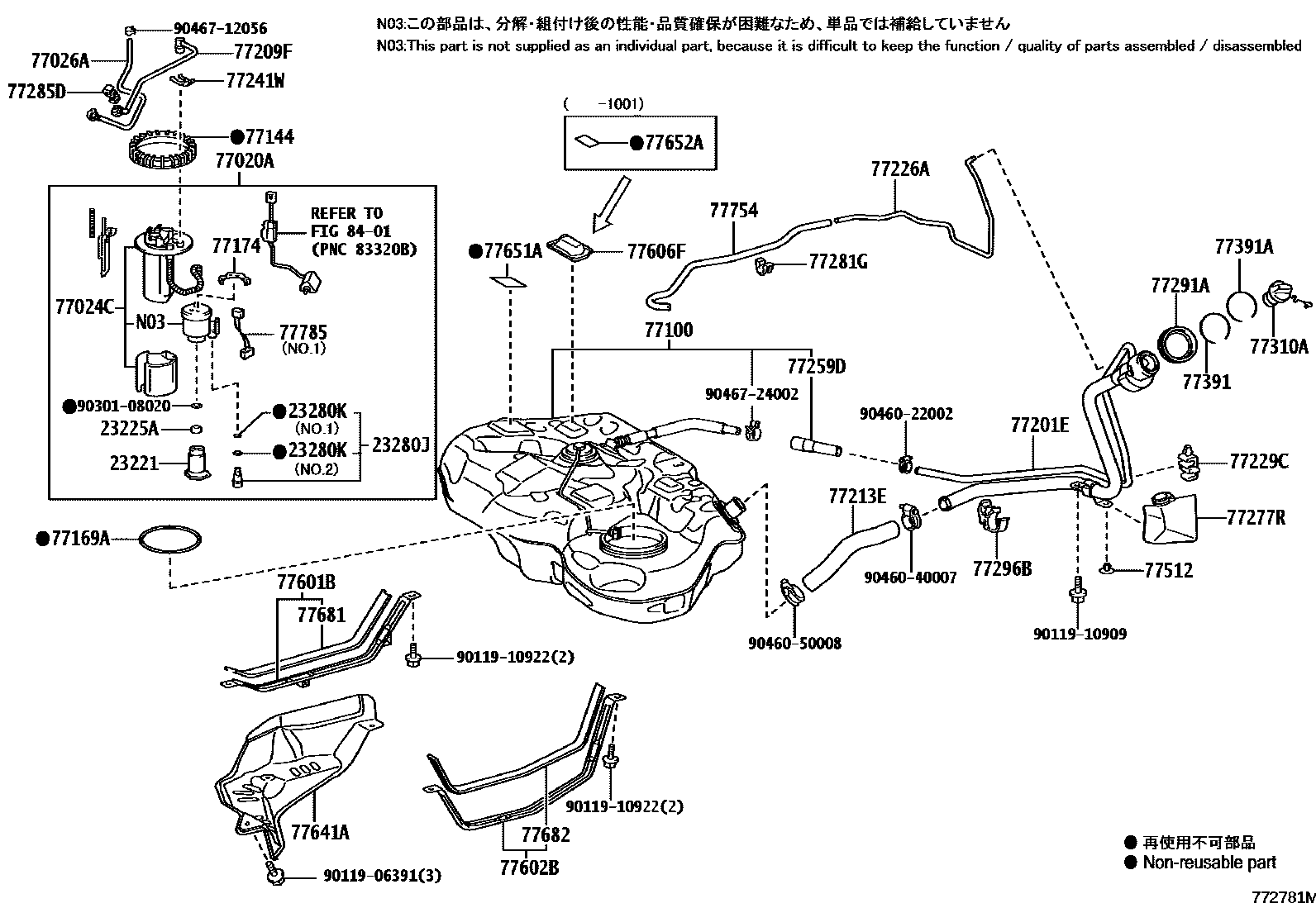

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TUBE 0003 1FUEL LID OPENER

23221PUMP, FUEL

main23220-21210i2ZRFXE..ZVW35¥38,100200912

sub23220-21211¥26,400

sub77785-12010¥870

sub77785-52101¥600

sub77785-52110¥540

23225ASPACER, FUEL PUMP

main23225-21020i2ZRFXE..ZVW35¥120200912

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-21010i2ZRFXE..ZVW35¥6,000200912

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i2ZRFXE..ZVW35¥140200912-201010

NO.1

main90301-15024i2ZRFXE..ZVW35¥140200912-201010

NO.2

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-47070iZVW35¥73,200200912

77024CPLATE SUB-ASSY, FUEL SUCTION W/FUEL FILTER

main77024-75010iZVW35¥16,000200912-201010

sub77024-47090¥13,300

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-47020iZVW35¥770200912

77100TANK ASSY, FUEL

main77001-47100iZVW35¥38,100200912

77144RETAINER, FUEL PUMP GAUGE

main77144-52030iZVW35¥2,060200912

77169AGASKET, FUEL SUCTION TUBE SET

main77169-52030iZVW35¥220200912

77174SUPPORT, FUEL SUCTION, NO.1

main77174-75010iZVW35¥410200912

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-47140iZVW35¥11,500200912

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-47060iZVW35¥710200912

77213EHOSE, FUEL TANK TO FILLER PIPE

main77213-47070iZVW35¥3,490200912

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-47070iZVW35¥2,700200912

77229CCLAMP, BREATHER TUBE

main77229-12070iZVW35¥520200912

77241WCLIP, TUBE JOINT

main77241-33011iZVW35¥80201007

main77241-60320iZVW35¥130200912-201006

77259DHOSE, FUEL, NO.1

main77259-76010iZVW35¥630200912-201010

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-47050iZVW35¥790200912

77281GCLAMP, FUEL HOSE

main77281-47050iZVW35¥170200912

77285DCLAMP, FUEL TUBE, NO.1

main77285-47040iZVW35¥270200912

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-47030iZVW35¥1,010200912

77296BSUPPORT, FUEL TUBE PROTECTOR, NO.1

main77281-47070iZVW35¥840200912

77310ACAP ASSY, FUEL TANK

main77300-52030iZVW35¥1,560200912

77391RING, FUEL INLET BOX

main77391-12020iZVW35¥180200912

77391ARING, FUEL INLET BOX

main77391-44020iZVW35¥260200912

77512BRACKET, FUEL TANK, REAR

main77512-35140iZVW35¥230200912

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-47040iZVW35¥2,910200912

sub77601-47090¥2,910

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-47040iZVW35¥2,910200912

sub77602-47090¥2,910

77606FCASE SUB-ASSY, FUEL TANK COVER VENT

main77606-12190iZVW35¥1,900201001

77641APROTECTOR, FUEL TANK, NO.1

main77641-47020iZVW35¥3,300200912

77651ACUSHION, FUEL TANK, NO.1

main77651-12070iZVW35¥230200912

77652ACUSHION, FUEL TANK, NO.2

main77652-47010iZVW35¥200200912-201001

77681SEAT, FUEL TANK BAND, RH

main77681-47020iZVW35¥620200912

77682SEAT, FUEL TANK BAND, LH

main77682-47020iZVW35¥620200912

77754HOSE, CHARCOAL CANISTER OUTLET, NO.1

main77754-47030iZVW35¥1,580200912

77785HARNESS, FUEL PUMP

main77785-12020iZVW35¥870200912

8401

9011906391

main90119-06391¥100

9011910909

main90119-10909¥100

9011910922

main90119-10922¥170

9030108020

main90301-08020¥250

9046022002

main90460-22002¥530

9046040007

main90460-40007¥190

9046050008

main90460-50008¥240

9046712056

main90467-12056¥70

9046724002

main90467-24002¥240

47 parts on this diagram · 3 diagrams in section
