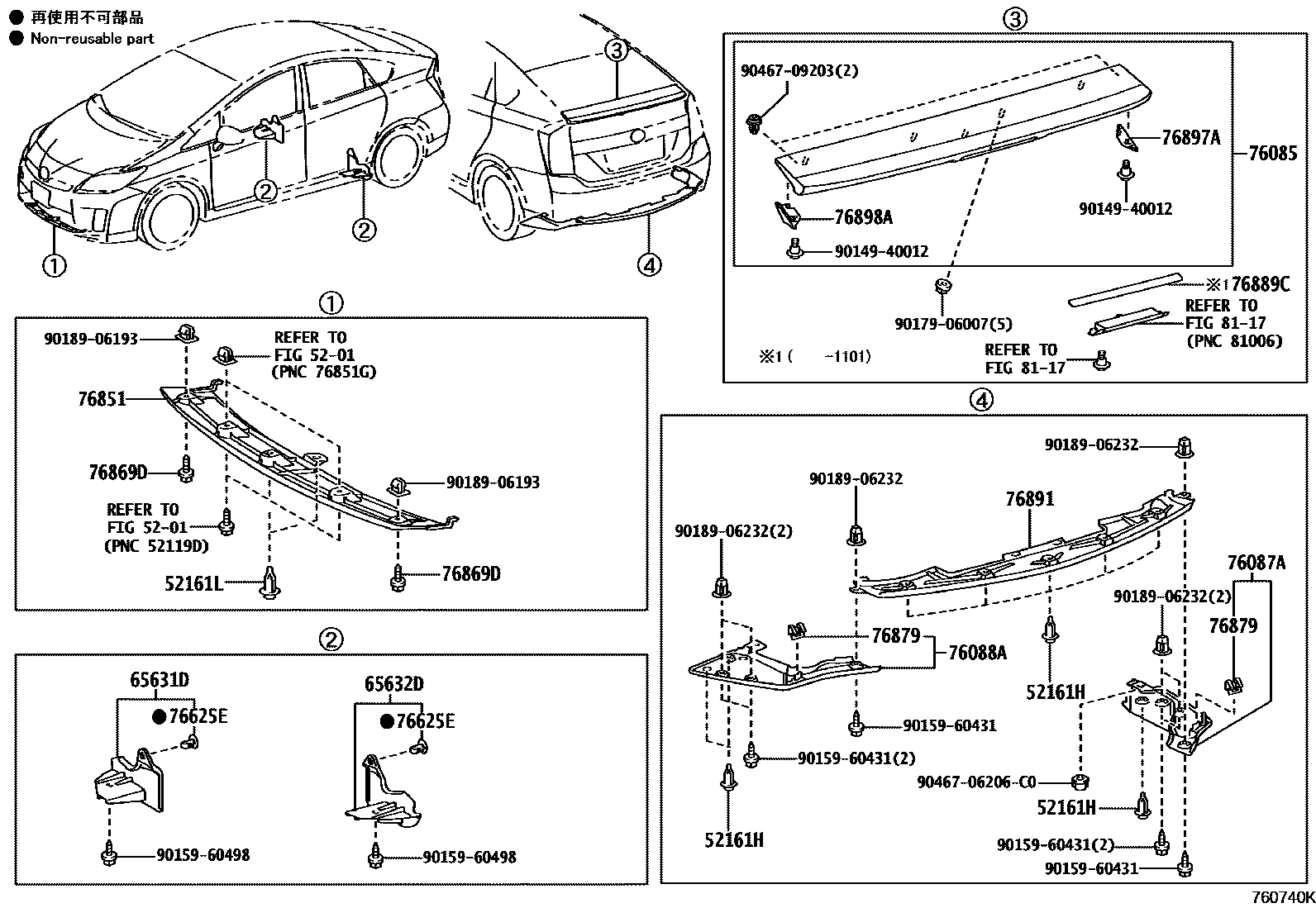

MUDGUARD & SPOILER

5201

52161HPIECE, REAR BUMPER

main52161-16010iZVW35200912

sub52161-0K040

52161LPIECE, FRONT SPOILER

main52161-16010iZVW35200912

sub52161-0K040

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-47041iZVW35200912

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-47041iZVW35200912

76085SPOILER SUB-ASSY, REAR

main76085-47907iZVW35200912-201101

NO PAINT REQ.

76087ASPOILER SUB-ASSY, REAR SIDE

main76087-47020iZVW35200912-201010

76088ASPOILER SUB-ASSY, REAR SIDE

main76088-47020iZVW35200912-201010

76625ECLIP

main90467-10005-C0iZVW35200912

BLACK

sub90467-10005

sub90467-06017

76851COVER, FRONT SPOILER

main76851-47020iZVW35200912

76869DSCREW, NO.2

main90159-60488iZVW35200912-201010

76879CLIP, REAR SPOILER, NO.1

main76879-44010iZVW35200912

76889CADHESIVE, REAR SPOILER

main76889-47020iZVW35201001-201101

76891SPOILER, REAR NO.1

main76891-47020iZVW35200912-201010

76897ASPOILER,REAR SIDE RH

main76897-47020iZVW35200912

76898ASPOILER,REAR SIDE LH

main76898-47020iZVW35200912

8117

9014940012

main90149-40012

9015960431

main90159-60431

9015960498

main90159-60498

9017906007

main90179-06007

9018906193

main90189-06193

9018906232

main90189-06232

9046706206C0

main90467-06206C0

9046709203

main90467-09203

25 parts on this diagram · 1 diagram in section
