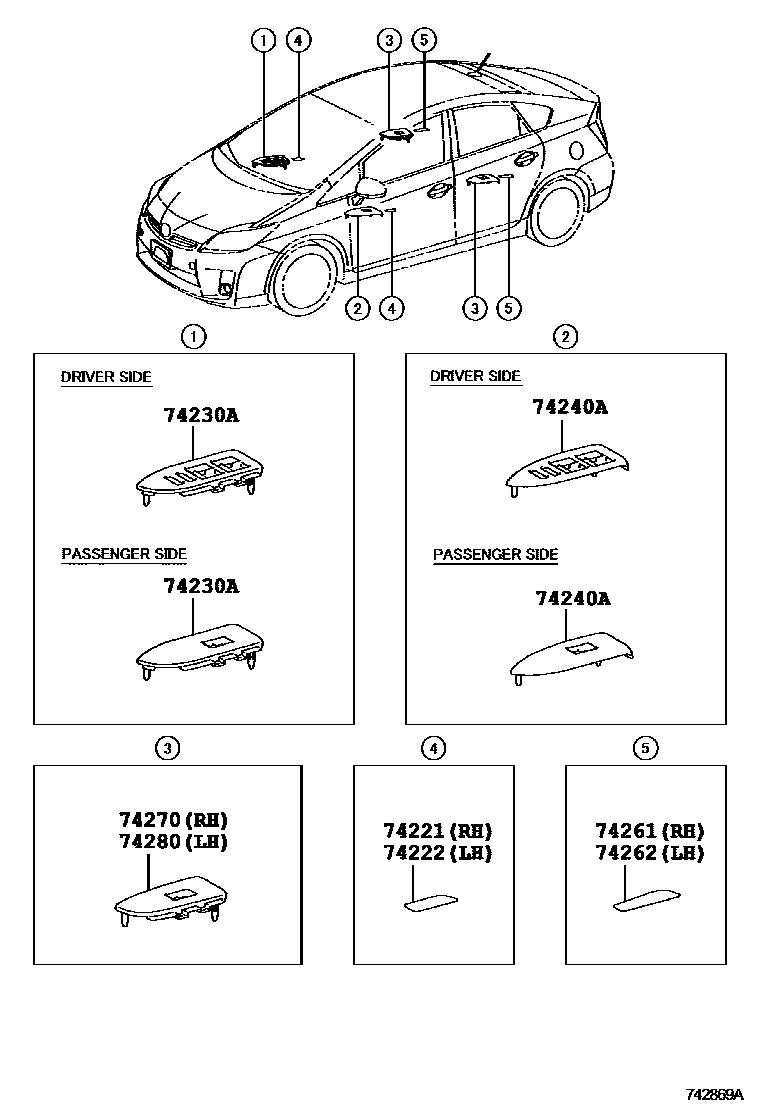

ARMREST & VISOR

0001 1ARMREST 0002 1VISOR & ASSIST GRIP

74221COVER, DOOR ARMREST, RH

main74221-47020iZVW35200912-201010

74222COVER, DOOR ARMREST, LH

main74221-47020iZVW35200912-201010

74230APANEL ASSY, FRONT DOOR ARMREST BASE, RH

main74231-47100iZVW35..RHD200912-201010

main74231-47110iZVW35..LHD200912-201010

74240APANEL ASSY, FRONT DOOR ARMREST BASE, LH

main74232-47080iZVW35..RHD200912-201010

main74232-47090iZVW35..LHD200912-201010

74261COVER, REAR DOOR ARMREST, RH

main74261-47020iZVW35200912-201010

74262COVER, REAR DOOR ARMREST, LH

main74261-47020iZVW35200912-201010

74270PANEL ASSY, REAR DOOR ARMREST BASE, RH

main74271-47060iZVW35200912-201010

74280PANEL ASSY, REAR DOOR ARMREST BASE, LH

main74272-47060iZVW35200912-201010

8 parts on this diagram · 2 diagrams in section
