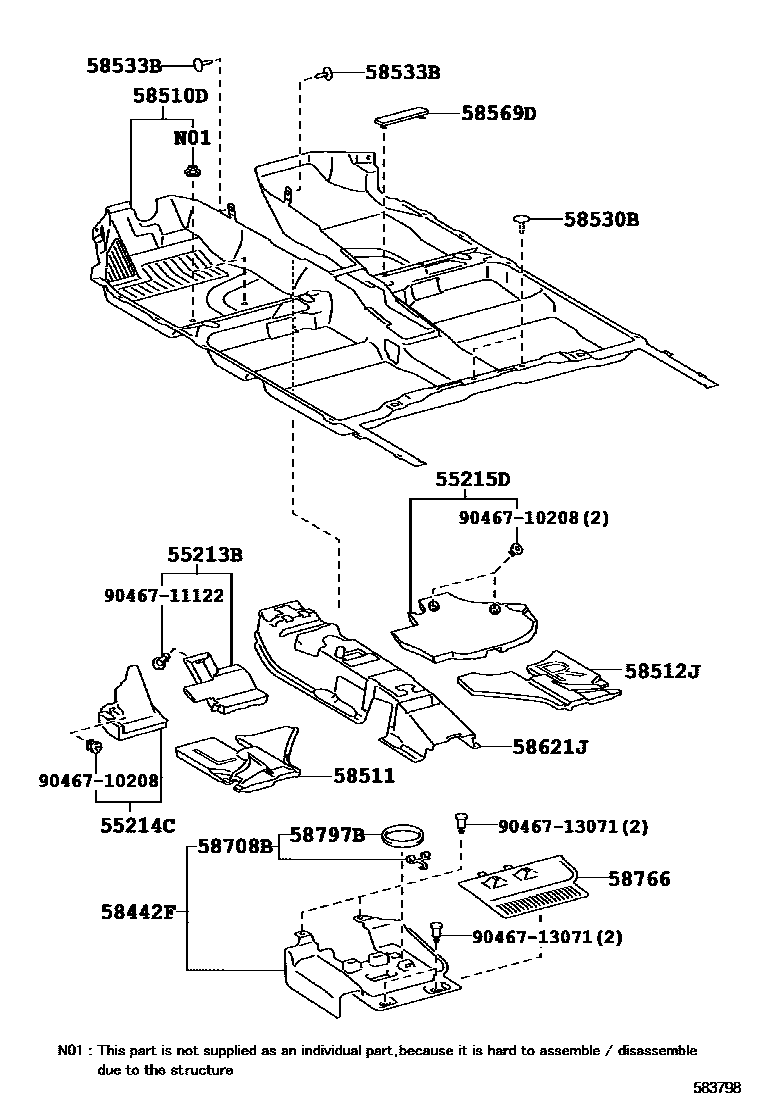

MAT & CARPET

0001 1 0002 1

55213BPAD, DASH PANEL INSULATOR, NO.1

main55213-47080iZVW35..LHD200912

main55213-47090iZVW35..RHD200912

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-47030iZVW35..LHD200912

main55214-47040iZVW35..RHD200912

55215DPAD, DASH PANEL INSULATOR, NO.3

main55215-47030iZVW35..LHD200912

main55215-47040iZVW35..RHD200912

58442FCOVER, JACK

main58442-47010-G0iZVW35200912

AQUA,TRIM6#

58510DCARPET ASSY, FLOOR, FRONT

main58510-47310-G1iZVW35..LHD200912

AQUA,TRIM6#

main58510-47320-G1iZVW35..RHD200912

AQUA,TRIM6#

58511MAT, FLOOR, FRONT

main58511-12620iZVW35200912

sub58511-12621

58512JMAT, FLOOR, NO.2

main58512-12200iZVW35200912

sub58512-12201

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-07049-B7×4iZVW35200912

DK.GRAY

main90467-07049-E5×4iZVW35200912

GREGE

58533BCLIP(FOR FLOOR CARPET COVER)

main90467-05164-C0×2iZVW35200912

BLACK

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-12010-G0iZVW35200912

AQUA,TRIM6#

58621JSILENCER, CENTER CONSOLE, NO.1

main58621-47020iZVW35200912

58708BCARRIER, SUB-ASSY, JACK(FOR REAR FLOOR)

main58790-52020iZVW35200912

58766COVER, JACK BOX HOLE

main58766-47010-G0iZVW35200912

AQUA,TRIM6#

58797BBAND, JACK CLAMP

main58781-52010iZVW35200912

9046710208

main90467-10208

9046711122

main90467-11122

9046713071

main90467-13071

17 parts on this diagram · 2 diagrams in section
