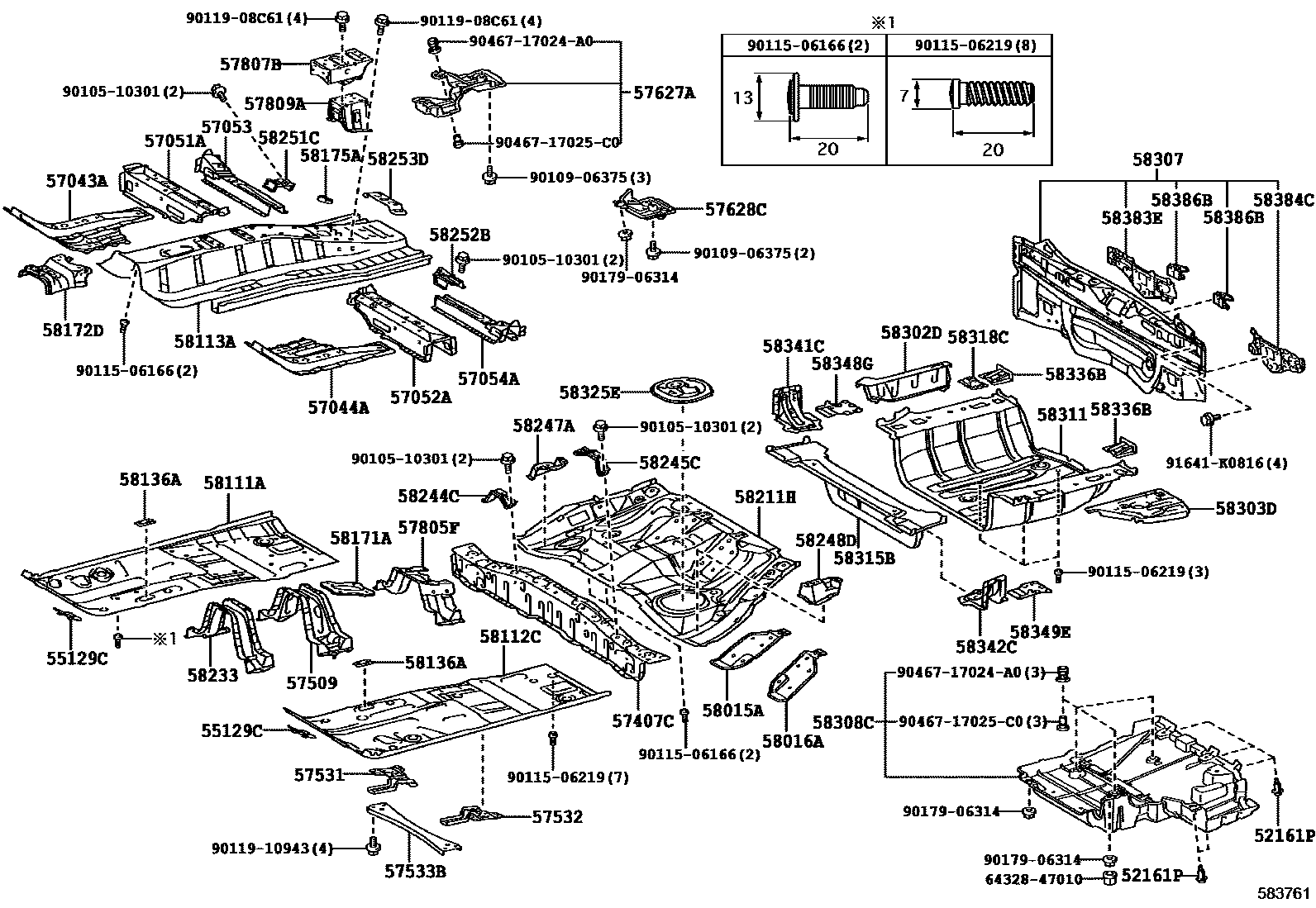

FLOOR PAN & LOWER BACK PANEL
52161PPIECE, REAR BUMPER
sub52161-0K040
57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH
57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57407CMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1
57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER
57531BRACKET, FRONT FLOOR CENTER BRACE, RH
57532BRACKET, FRONT FLOOR CENTER BRACE, LH
57533BBRACE, FRONT FLOOR, CENTER
57627ACOVER, REAR FLOOR SIDE MEMBER, RH
57628CCOVER, REAR FLOOR SIDE MEMBER, LH
57805FREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1
sub57805-12151
57807BREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.2
57809AREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.3
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
sub58015-47042
58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
58111APAN, FRONT FLOOR, RH
sub58111-47903
58112CPAN, FRONT FLOOR, LH
58113APANEL, FRONT FLOOR, CENTER
58136ACOVER, FRONT FLOOR SERVICE HOLE
58171AREINFORCE, PARKING BRAKE BASE
58172DBRACKET, COMPUTER MOUNTING, NO.4
58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1
58211HPAN, CENTER FLOOR
58233BRACKET, EXHAUST PIPE MOUNTING
58244CBRACKET, REAR SEAT CUSHION MOUNTING, RH
58245CBRACKET, REAR SEAT CUSHION MOUNTING, LH
58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH
sub58247-47011
58248DBRACKET, REAR SEAT HINGE, OUTER LH
sub58248-47011
58251CBRACE, FLOOR PANEL, FRONT RH
58252BBRACE, FLOOR PANEL, FRONT LH
58253DBRACKET, PARKING BRAKE CABLE
58302DPANEL SUB-ASSY, REAR FLOOR, FRONT
58303DPANEL SUB-ASSY, REAR FLOOR PARTITION
58307PANEL SUB-ASSY, BODY LOWER BACK
58308CCOVER SUB-ASSY, REAR FLOOR STEP UNDER
58311PAN, REAR FLOOR
58315BPANEL, REAR FLOOR, FRONT
58318CBRACKET, REAR FLOOR CROSSMEMBER
58325ECOVER, REAR FLOOR SERVICE HOLE
58336BREINFORCEMENT, REAR FLOOR PAN
58341CBRACKET, REAR ABSORBER MOUNTING, NO.1 RH
58342CBRACKET, REAR ABSORBER MOUNTING, NO.1 LH
58348GPLATE, REAR FLOOR SIDE, RH
58349EPLATE, REAR FLOOR SIDE, LH
58383EREINFORCEMENT, BODY LOWER BACK, NO.2 RH
58384CREINFORCEMENT, BODY LOWER BACK, NO.2 LH
58386BBRACKET, REAR BUMPER COVER, NO.2
6432847010COVER, AIR PURIFIER NOZZLE
main64328-47010
9010510301
main90105-10301
9010906375
main90109-06375
9011506166
main90115-06166
9011506219
main90115-06219
9011908C61
main90119-08C61
9011910943
main90119-10943
9017906314
main90179-06314
9046717024A0
main90467-17024A0
9046717025C0
main90467-17025C0
91641K0816
main91641-K0816
63 parts on this diagram · 1 diagram in section
